Control System

BODY CONTROL MODULE (BCM) INSPECTION

1. Remove the glove compartment.
2. Remove the BCM with the connector connected.

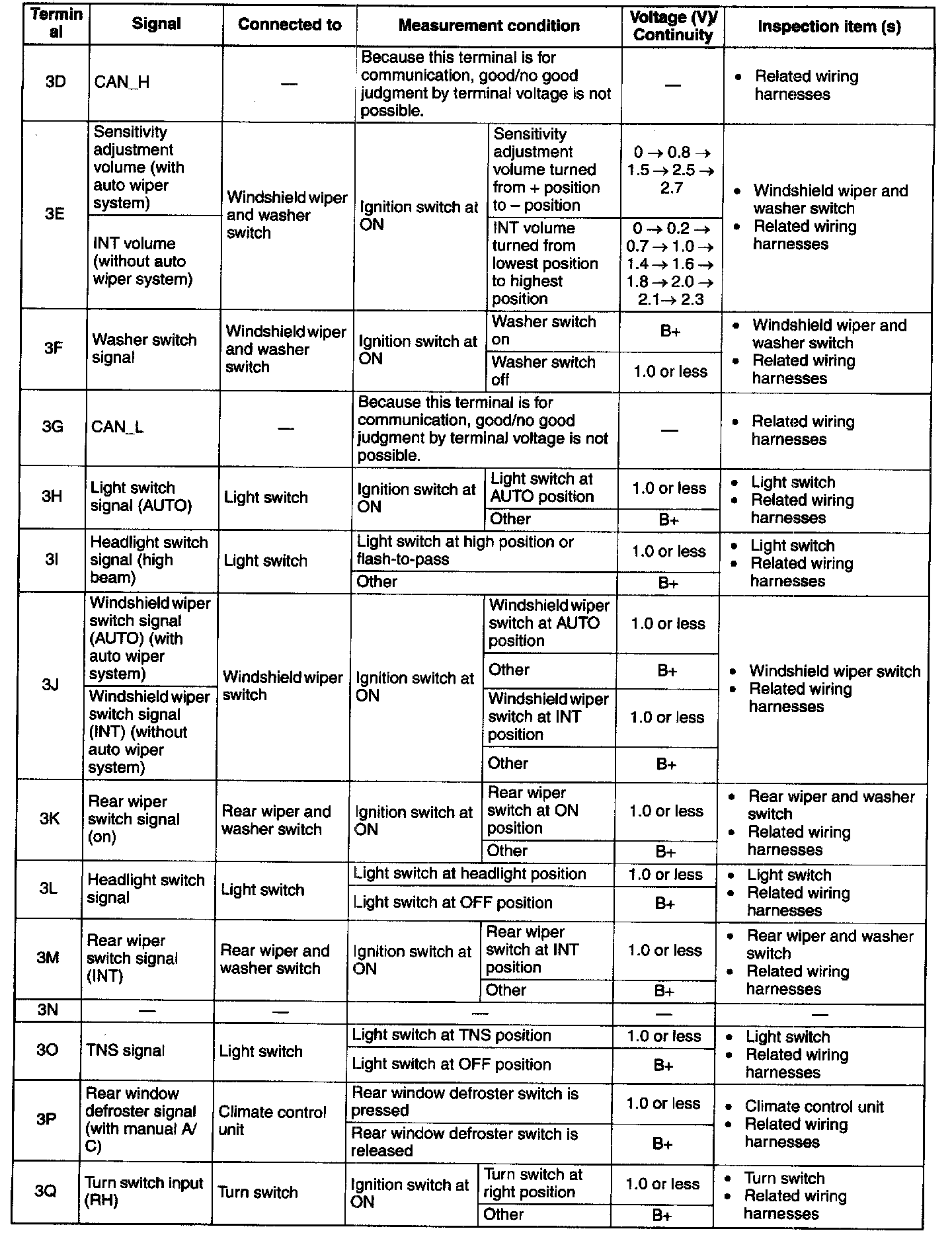

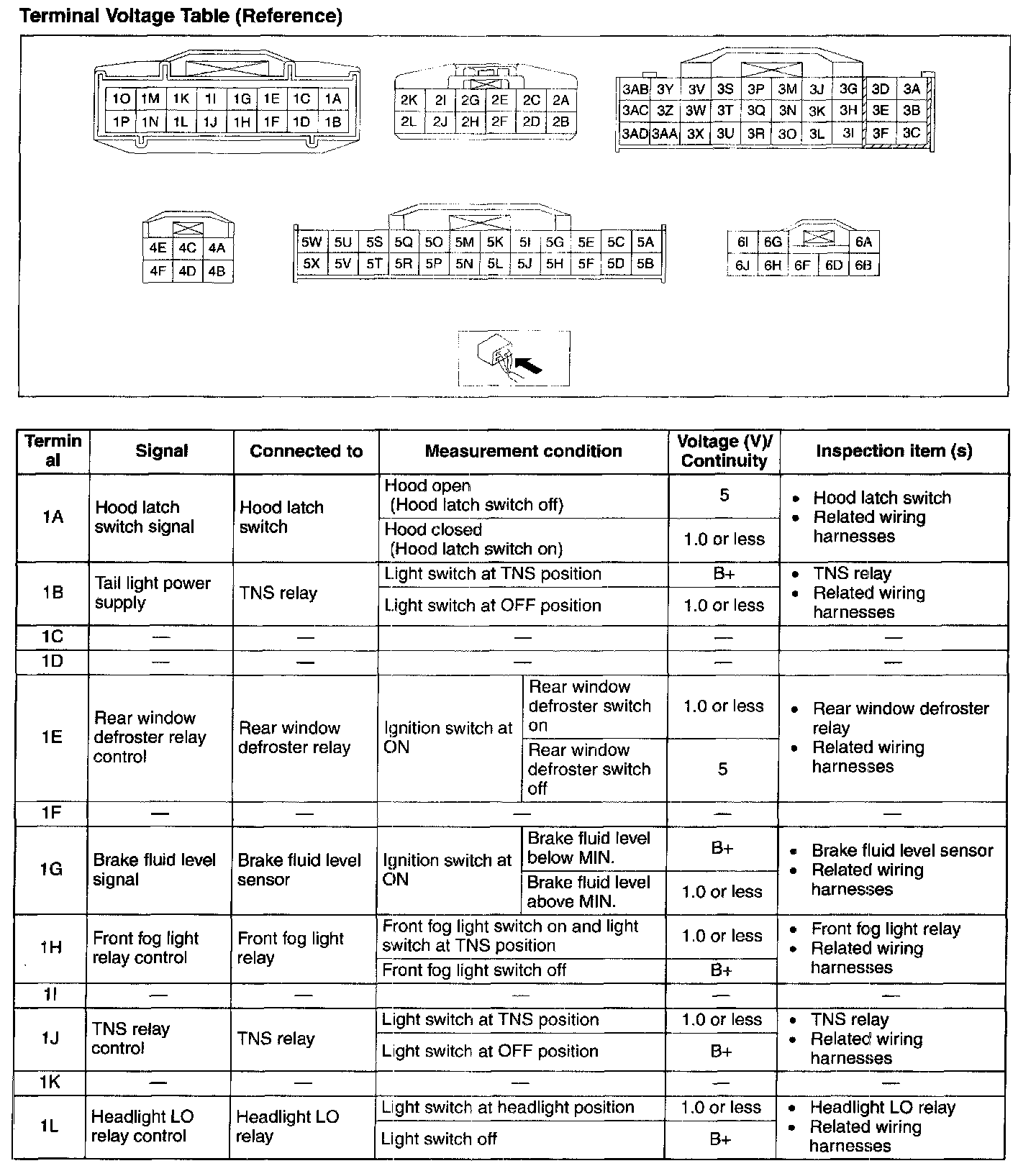

Terminal Voltage Table (Reference) (Part 1):

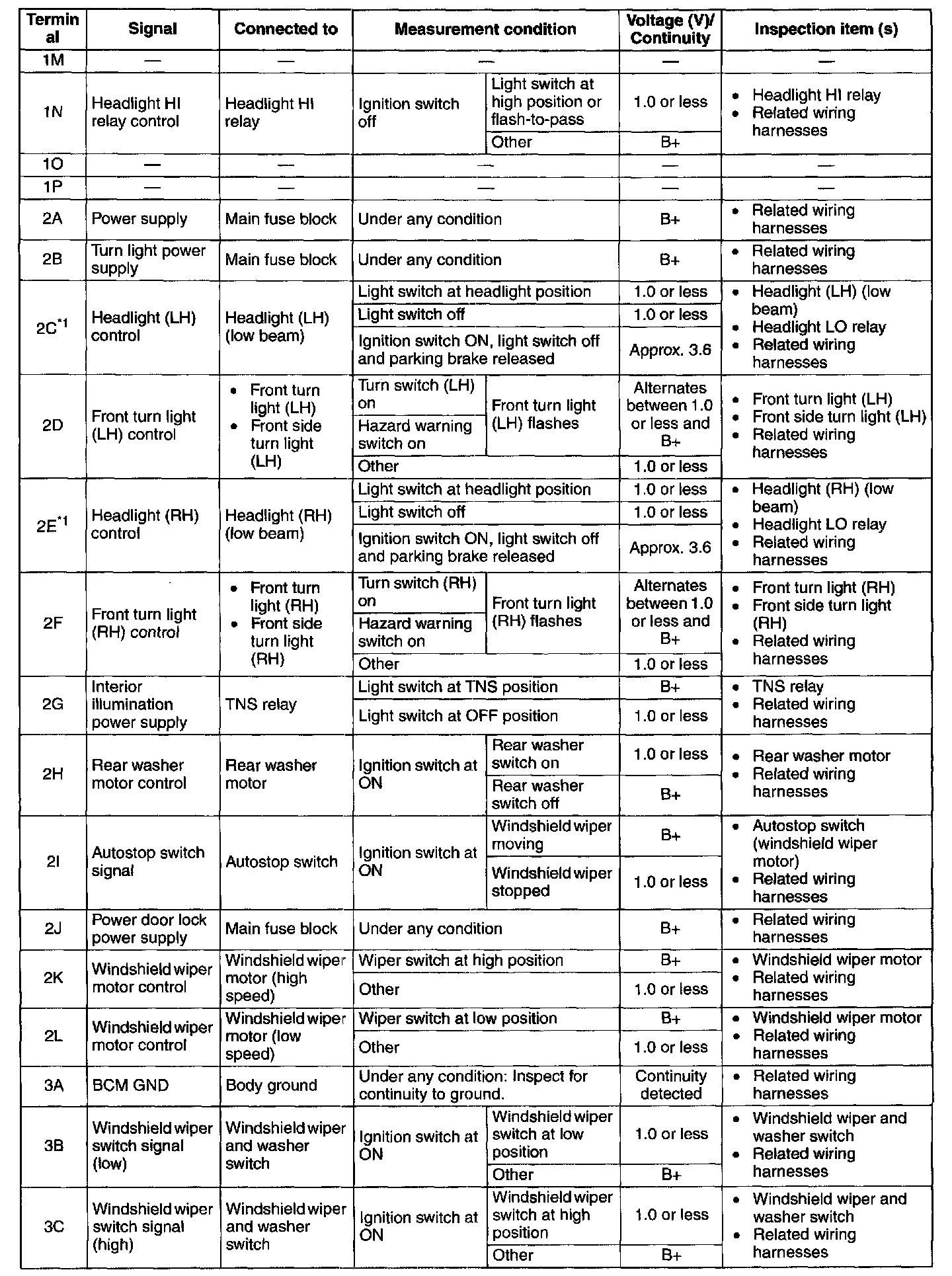

Terminal Voltage Table (Reference) (Part 2):

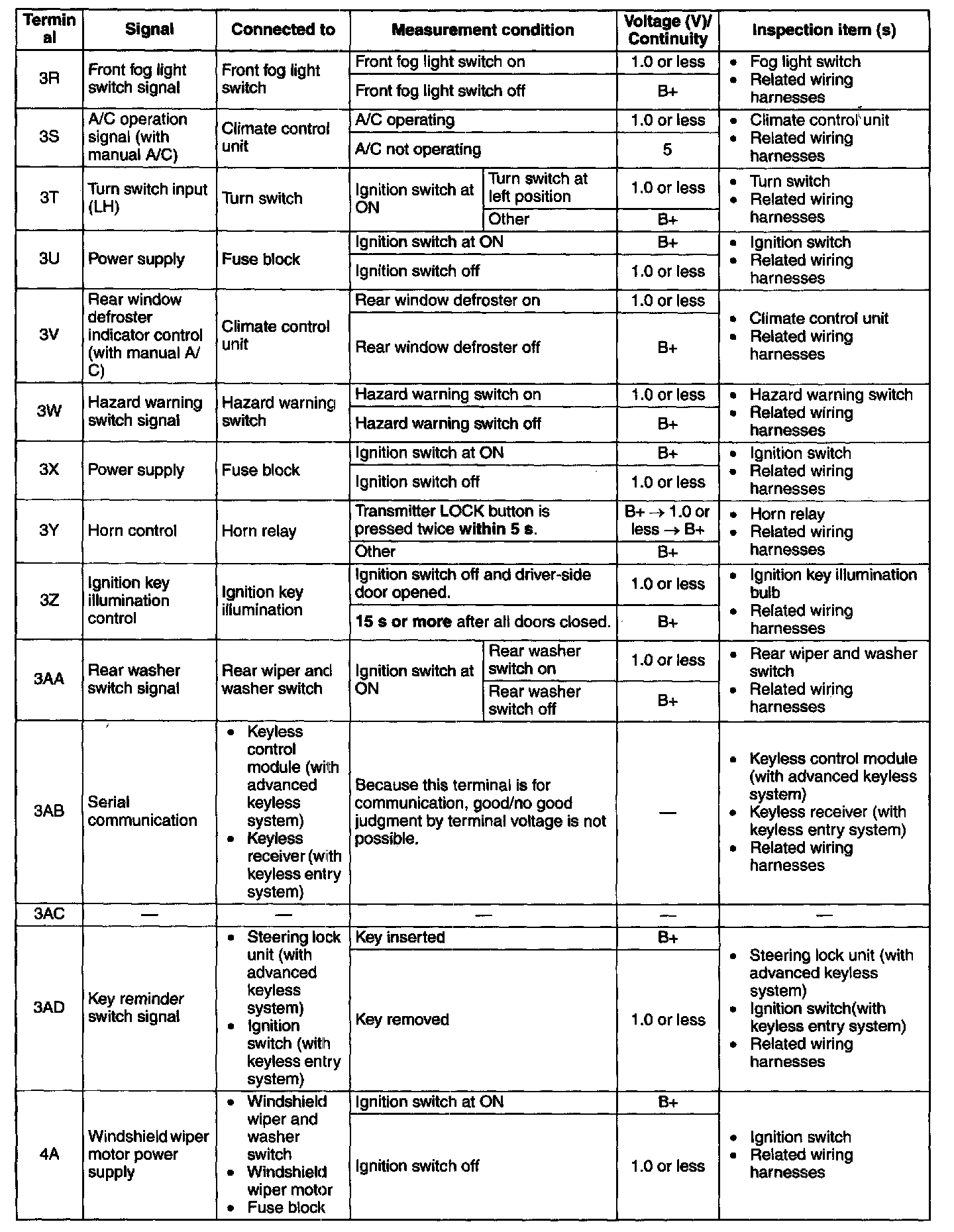

Terminal Voltage Table (Reference) (Part 3):

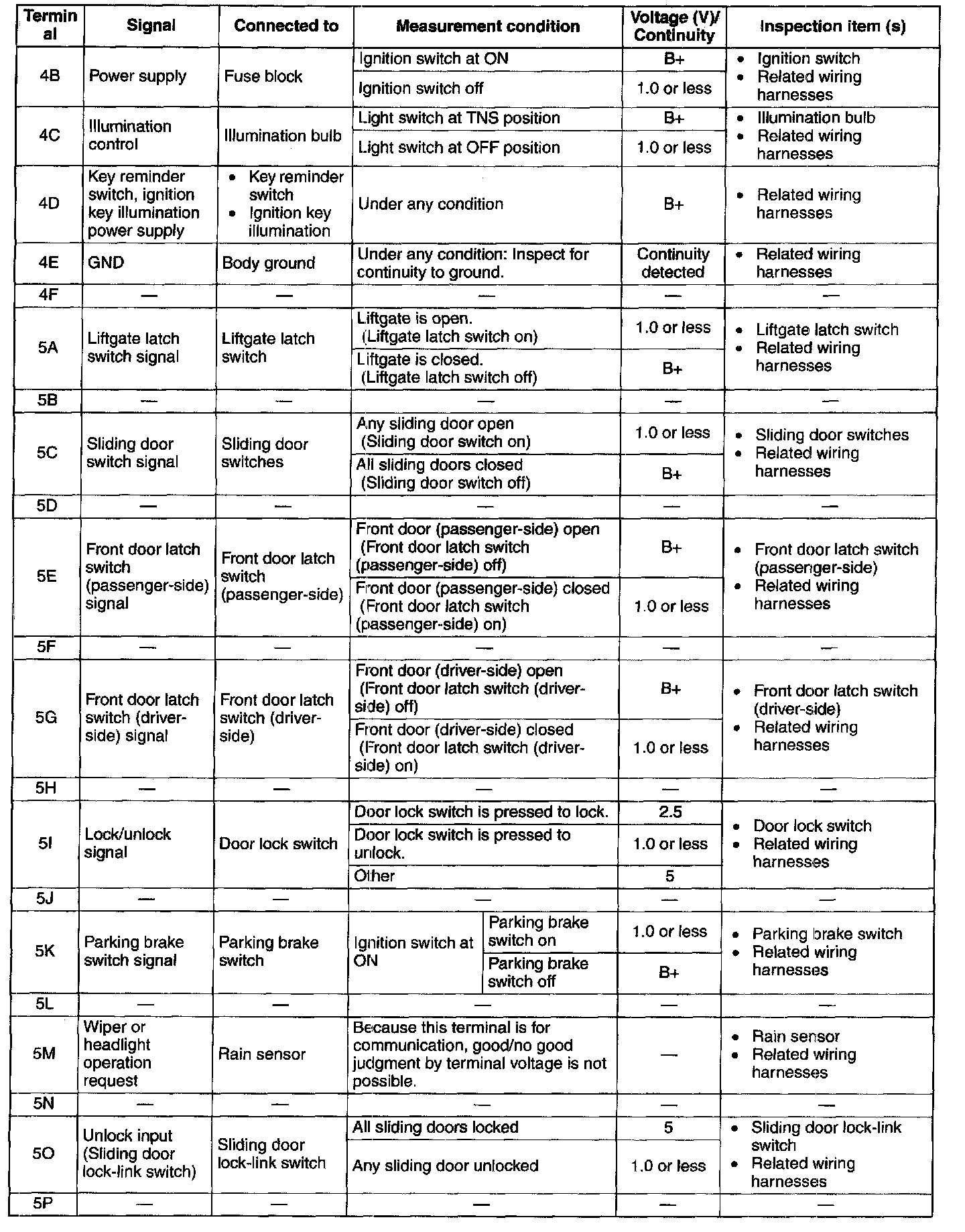

Terminal Voltage Table (Reference) (Part 4):

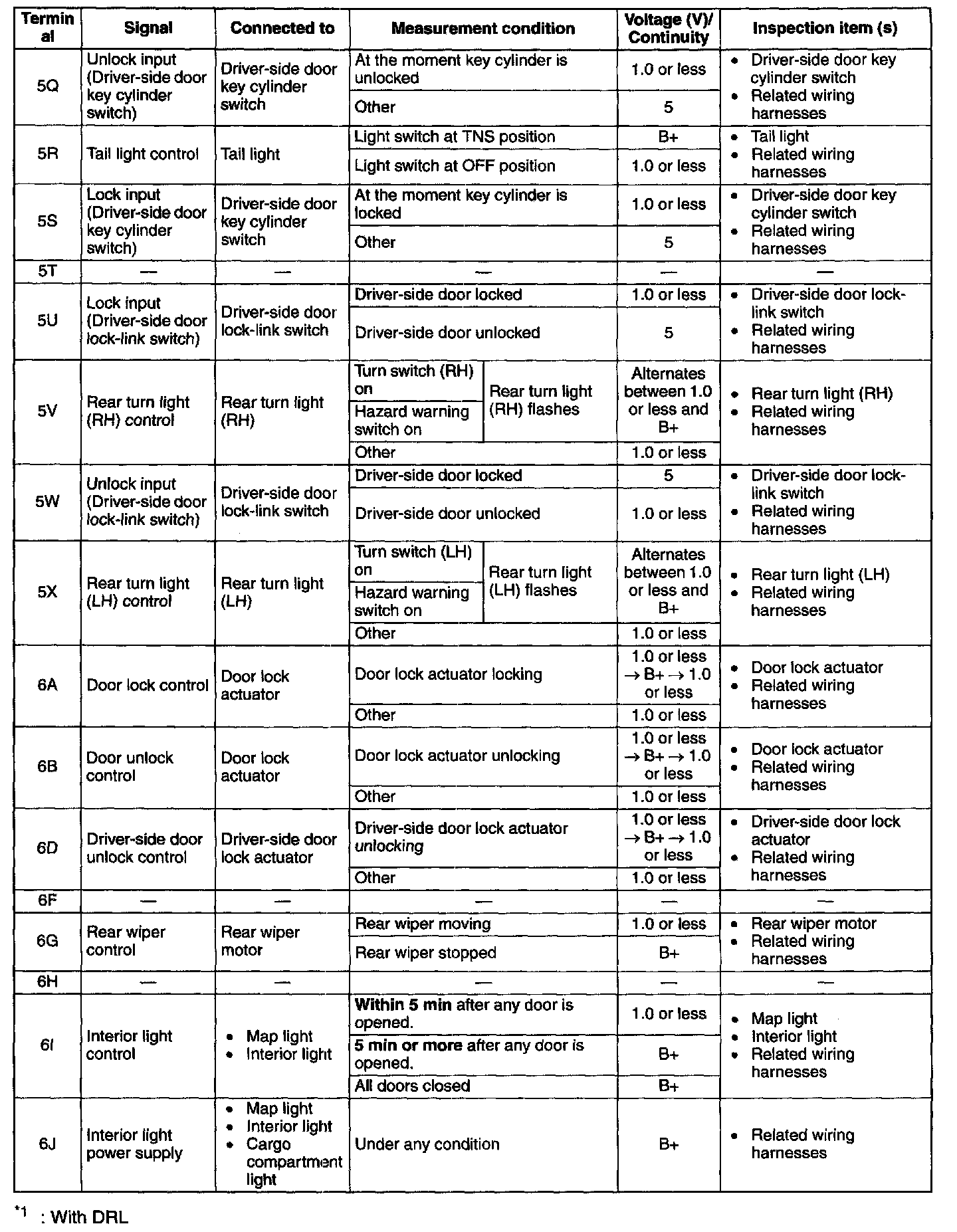

Terminal Voltage Table (Reference) (Part 5):

Terminal Voltage Table (Reference) (Part 6):

3. Measure the voltage at each terminal and inspect for the continuity between the terminals and ground is as indicated in the Terminal Voltage Tables (Reference).
- If the voltage or continuity is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item (s)".
- If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the BCM.
