Exterior Moulding / Trim: Service and Repair

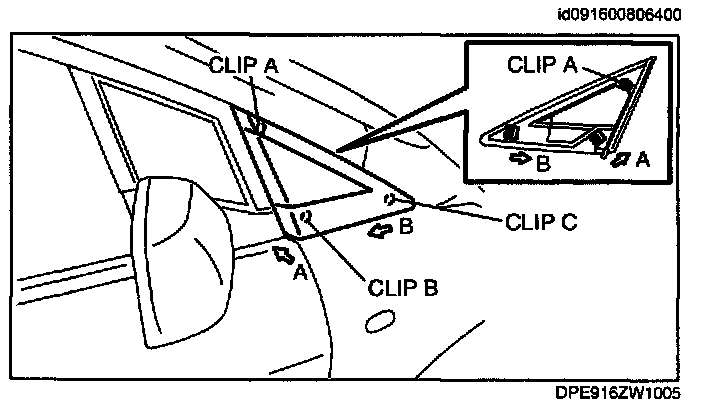

SAIL GARNISH INSTALLATION 1.
Install clip B and C to the sail garnish.
2.
Install the sail garnish to the vehicle body.
SAIL GARNISH REMOVAL 1.
Remove clip A from the vehicle.
2.
Move the sail garnish in direction A and remove it from clip B.
3.
Move the sail garnish in direction B and remove from clip C.
4.
Remove clips B and C from the vehicle body.
