Center Console Removal/Installation

CENTER CONSOLE REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the front cup holder.

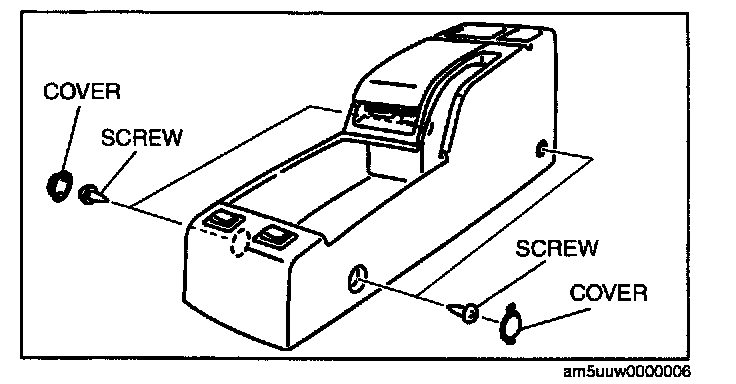

4. Remove the screws.
5. Disconnect the seat warmer switch connector.(Vehicles with seat warmer)
6. Remove the seat warmer switch.(Vehicles with seat warmer)
7. Remover the center console.
8. Install in the reverse order of removal.
