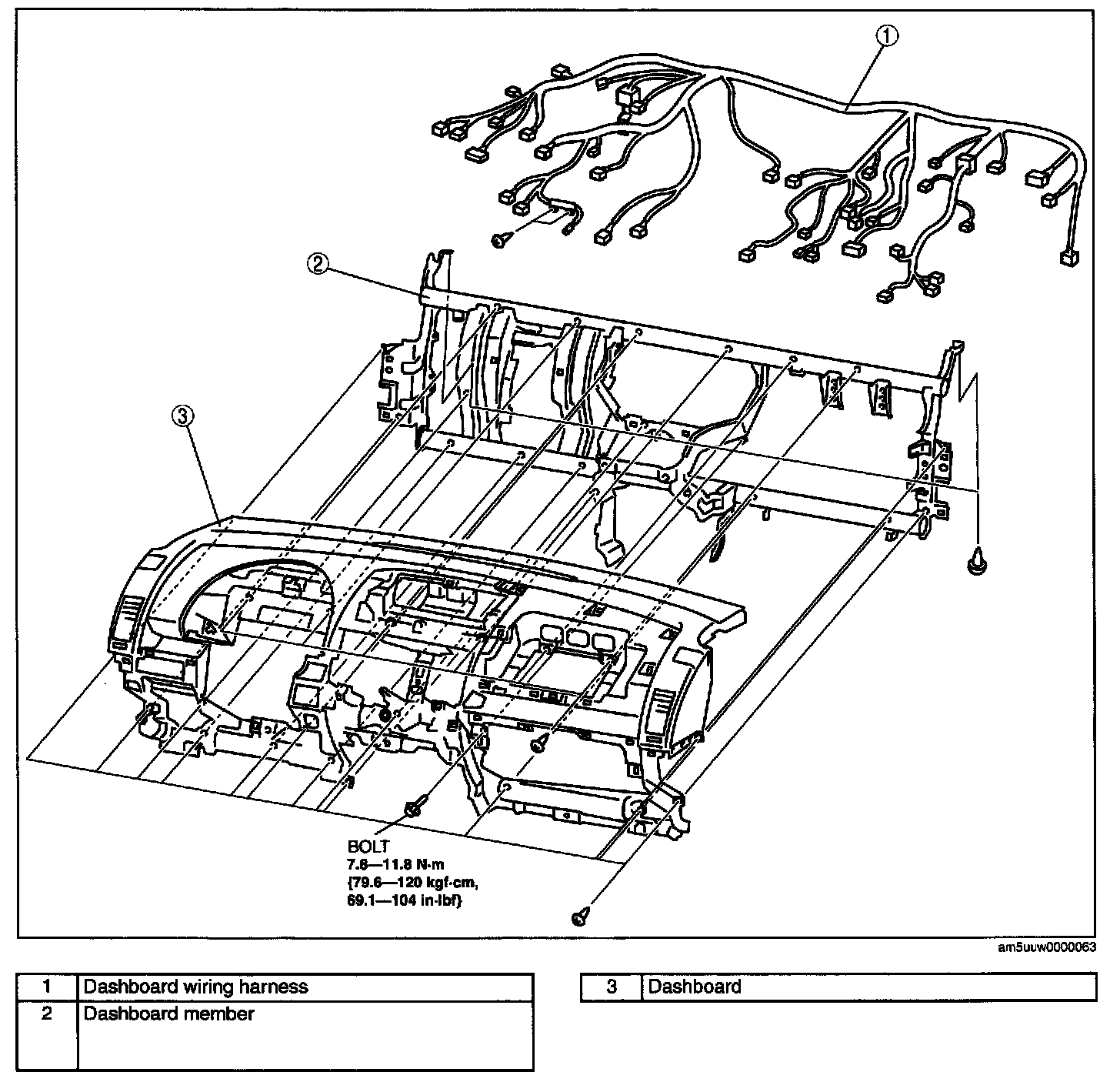

DASHBOARD DISASSEMBLY/ASSEMBLY

1. Remove the following parts:
1. LCD unit (vehicles with car-navigation system)
2. Dashboard center panel (vehicles without car-navigation system)
3. Car-navigation unit (vehicles with car-navigation system)
4. Passenger-side air bag module
5. Dashboard garnish

2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

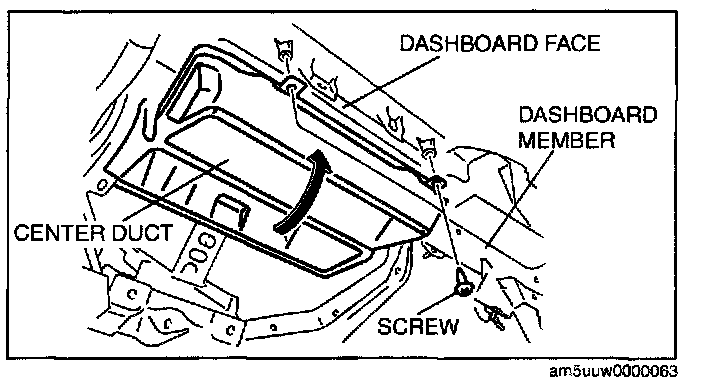

Dashboard Member Removal Note






1. Remove the screw.
2. Partially open the center duct in the direction shown by the arrow, and remove the dashboard member.

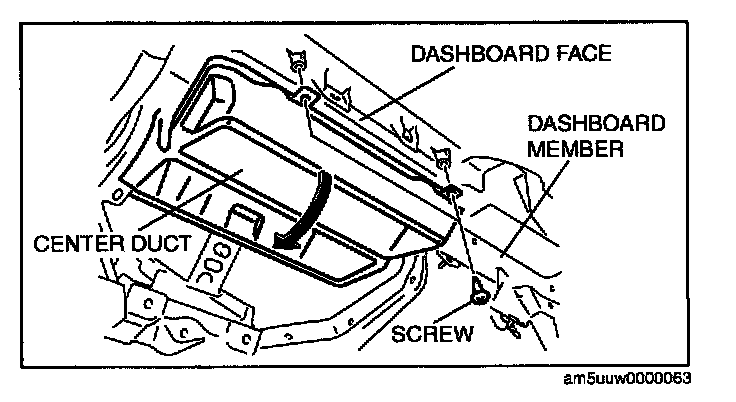

Dashboard Member Installation Note






1. Install the dashboard member to the dashboard face while holding the dashboard member with the center duct.
2. Install the screws.
