Manual Air Conditioner

CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY[MANUAL AIR CONDITIONER]

1. Set the airflow mode selector dial at defroster position.
2. Set the temperature control dial at MAX COLD position.

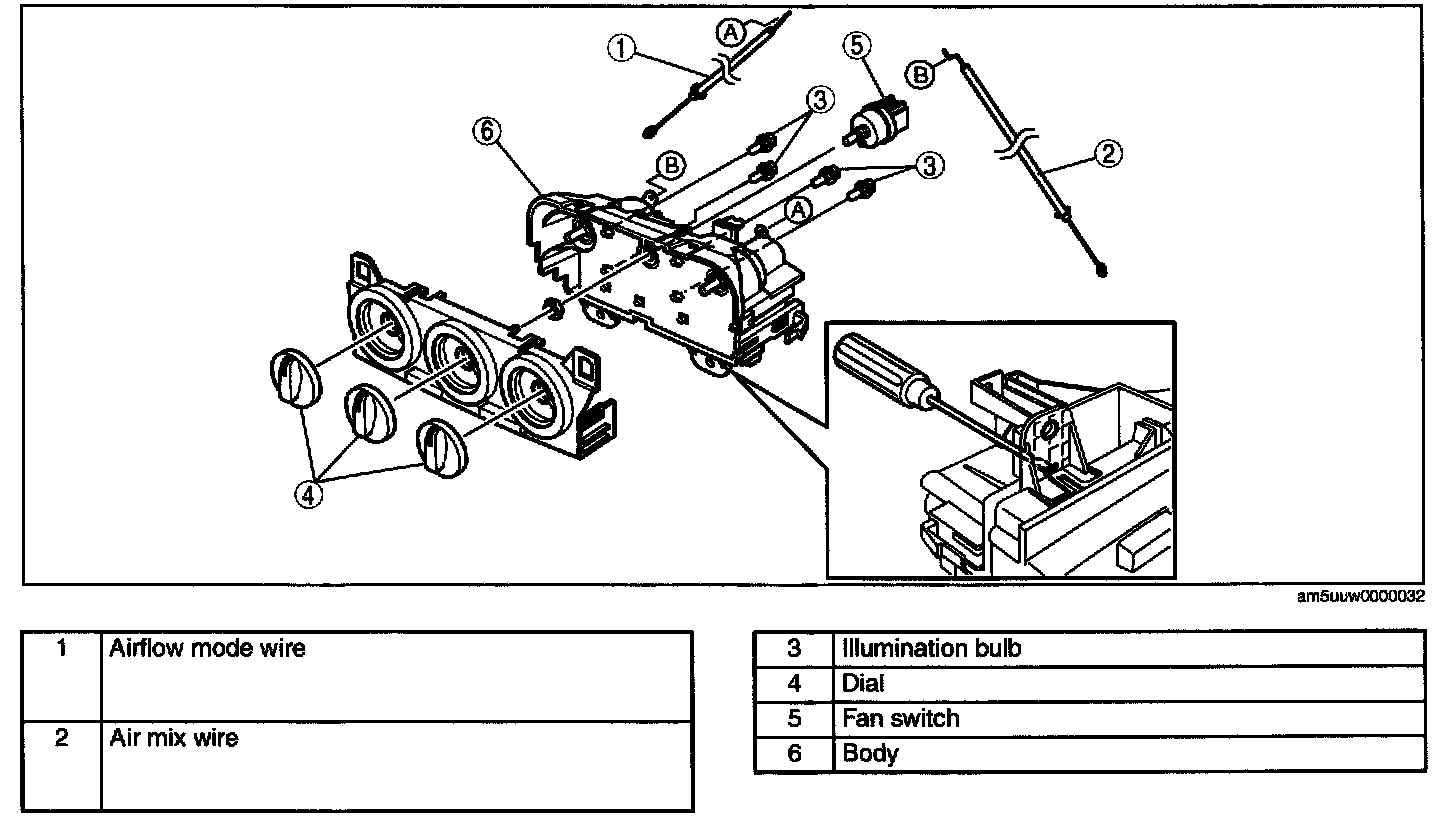

3. Disassemble in the order indicated in the table.
4. Assemble in the reverse order of disassembly.

Wire Disassembly Note

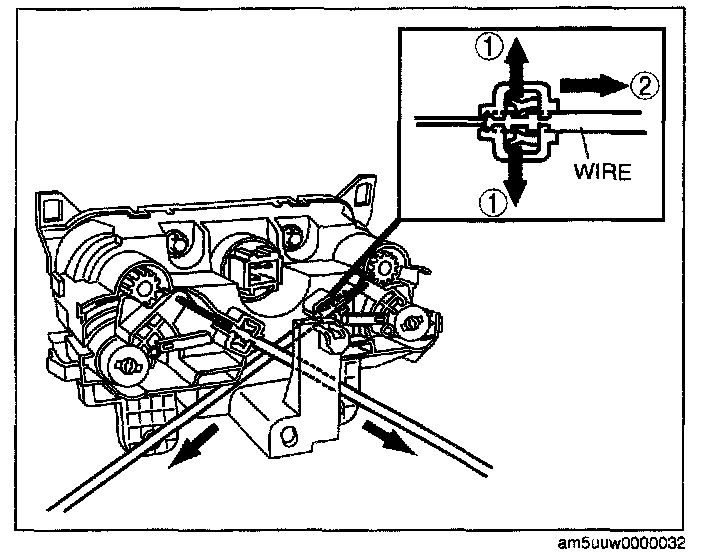

1. Disassemble the wires as shown in the figure.

Wire Assembly Note

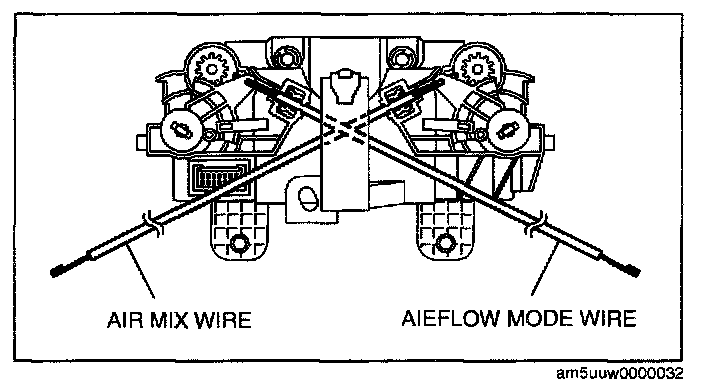

1. Assemble the wires at the positions shown in the figure.
