Full-Auto Air Conditioner
CLIMATE CONTROL UNIT REMOVAL/INSTALLATION[FULL-AUTO AIR CONDITIONER] 1.
Remove the battery cover.
2.
Disconnect the negative battery cable.
3.
Remove the following parts.
1.
Side wall
2.
Shift lever component (MTX)
3.
Selector lever component (ATX)
4.
Front console
4.
Remove the center panel unit.
5.

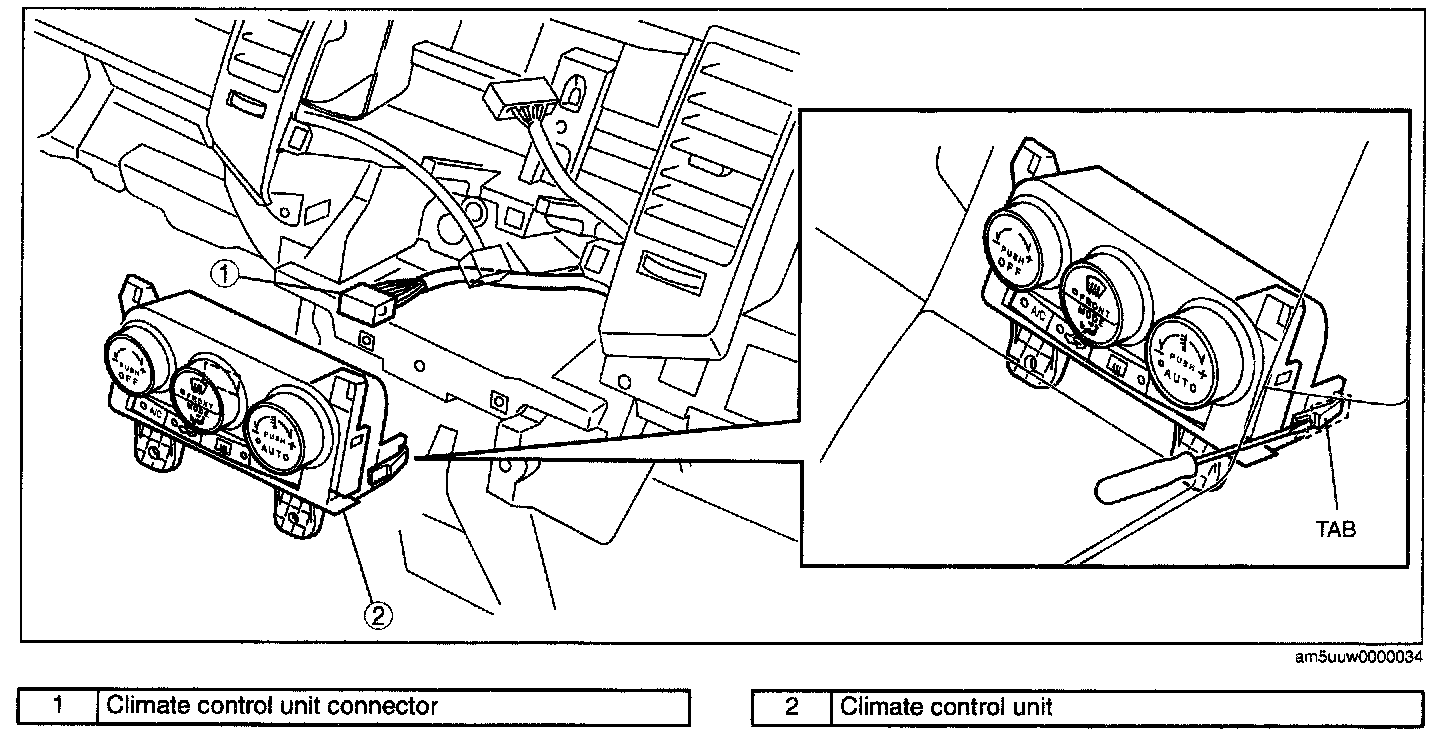

Release the left and right tabs and remove as shown in the figure.
6.
Install in the order of removal.
