Removal and Replacement

AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Removal the following parts.
1. Side wall
2. Shift lever component (MTX)
3. Selector lever component (ATX)
4. Front console
4. Detach the hood release lever from the lower panel.
5. Remove the front scuff plate. (LH)
6. Remove the front side trim. (LH)
7. Remove the lower panel.
8. Remove the column cover
9. Remove the shower duct (LH).
10. Remove the airflow mode rod (1).
11. Remove the airflow mode actuator.

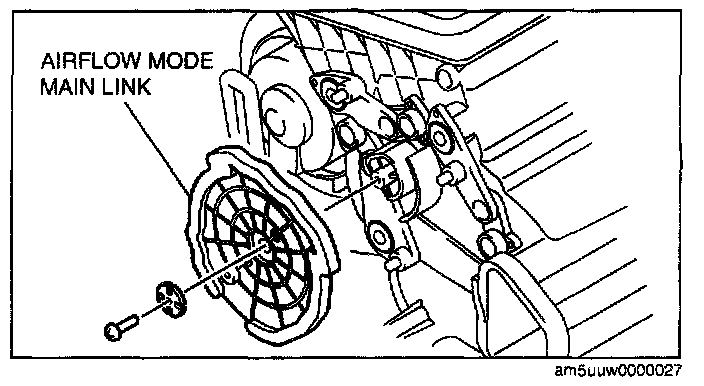

12. Remove the airflow mode main link.
13. Install in the reverse order of removal.
