Without Using the SST

PCM INSPECTION[L3]

Without Using the SST

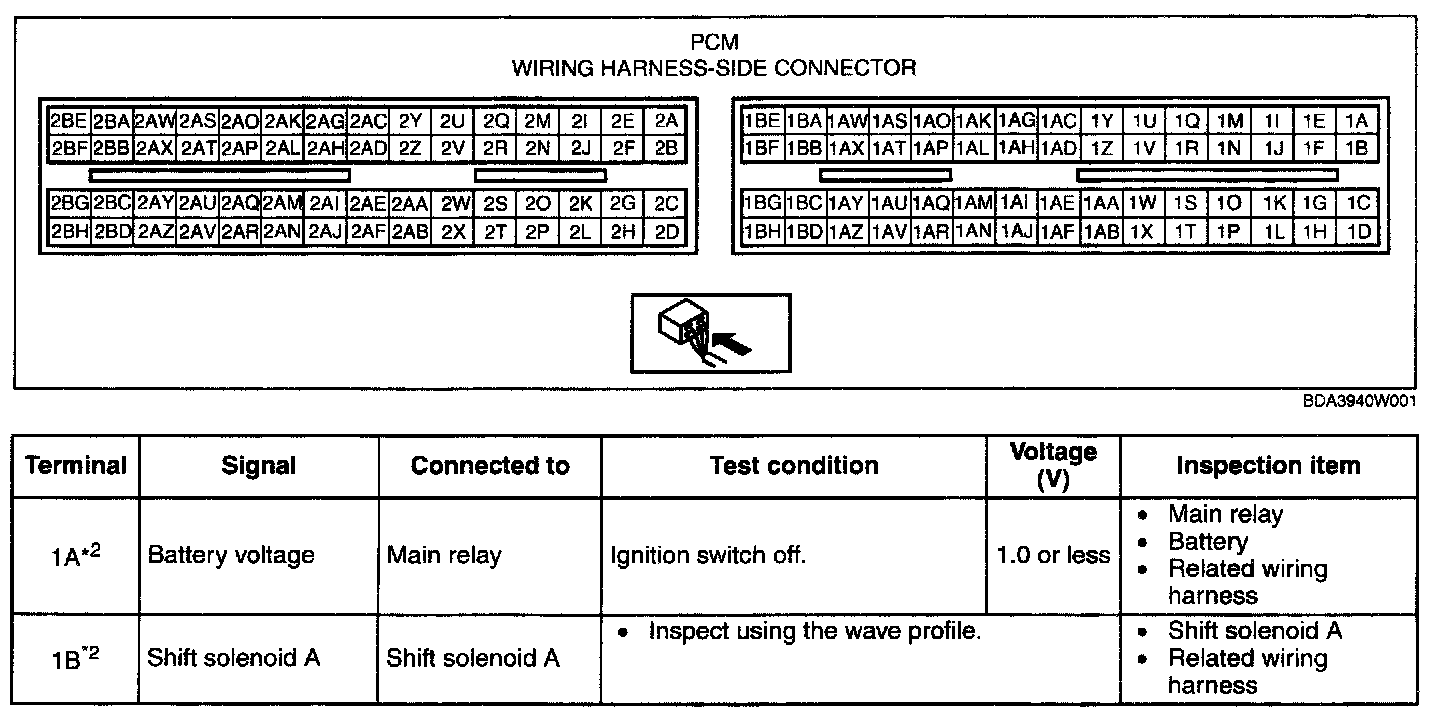

Terminal No 1A-1B:

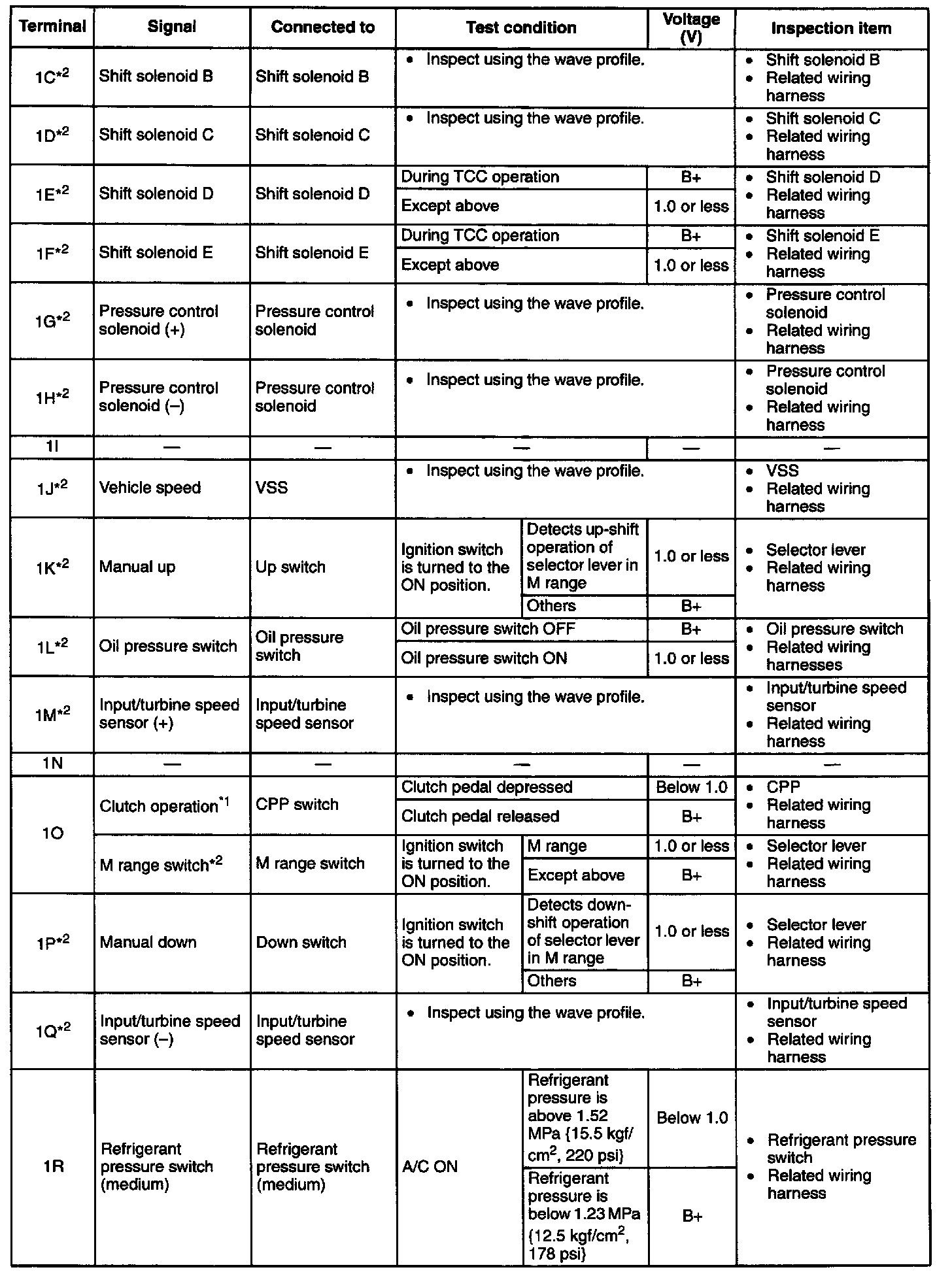

Terminal No 1C-1R:

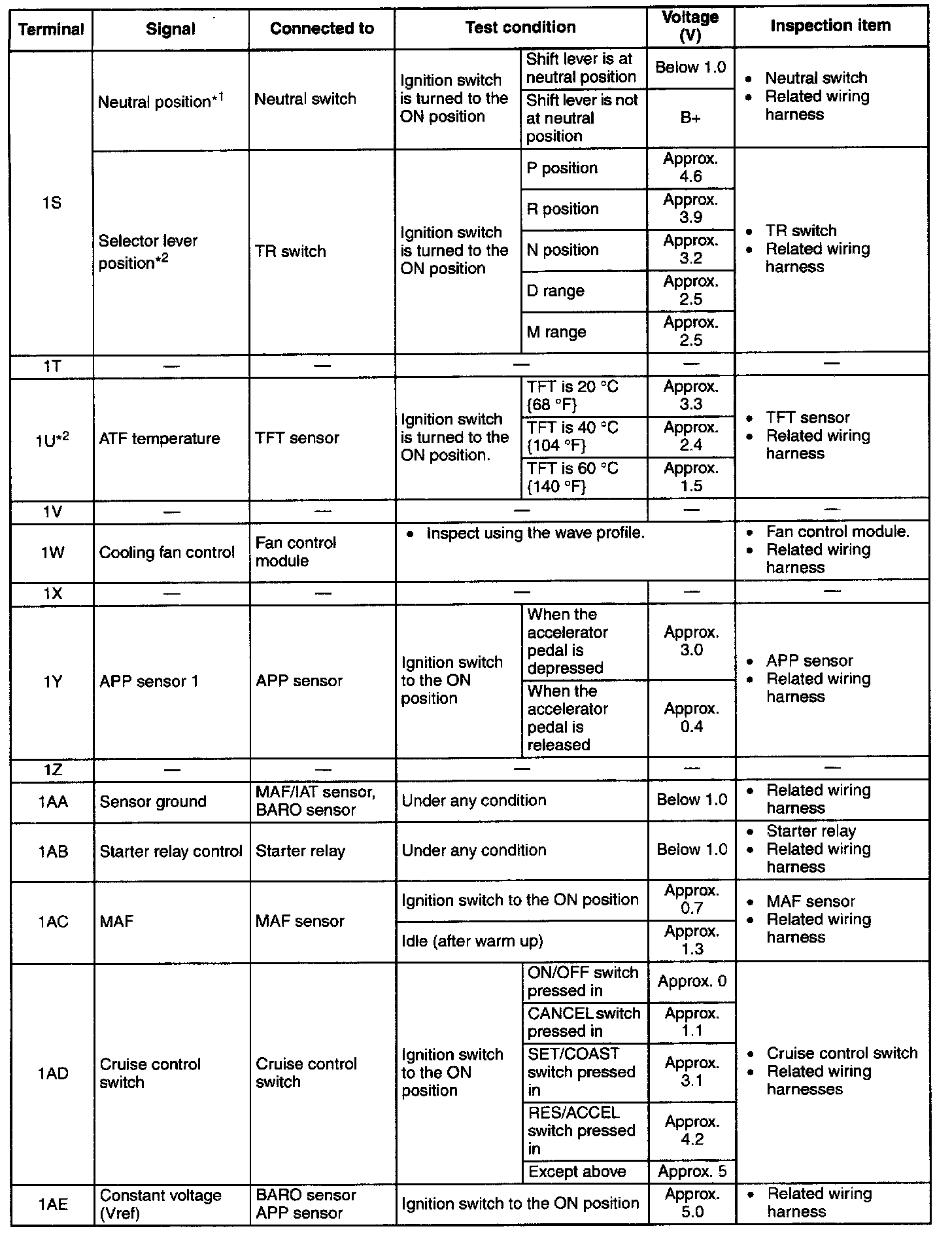

Terminal No 1S-1AE:

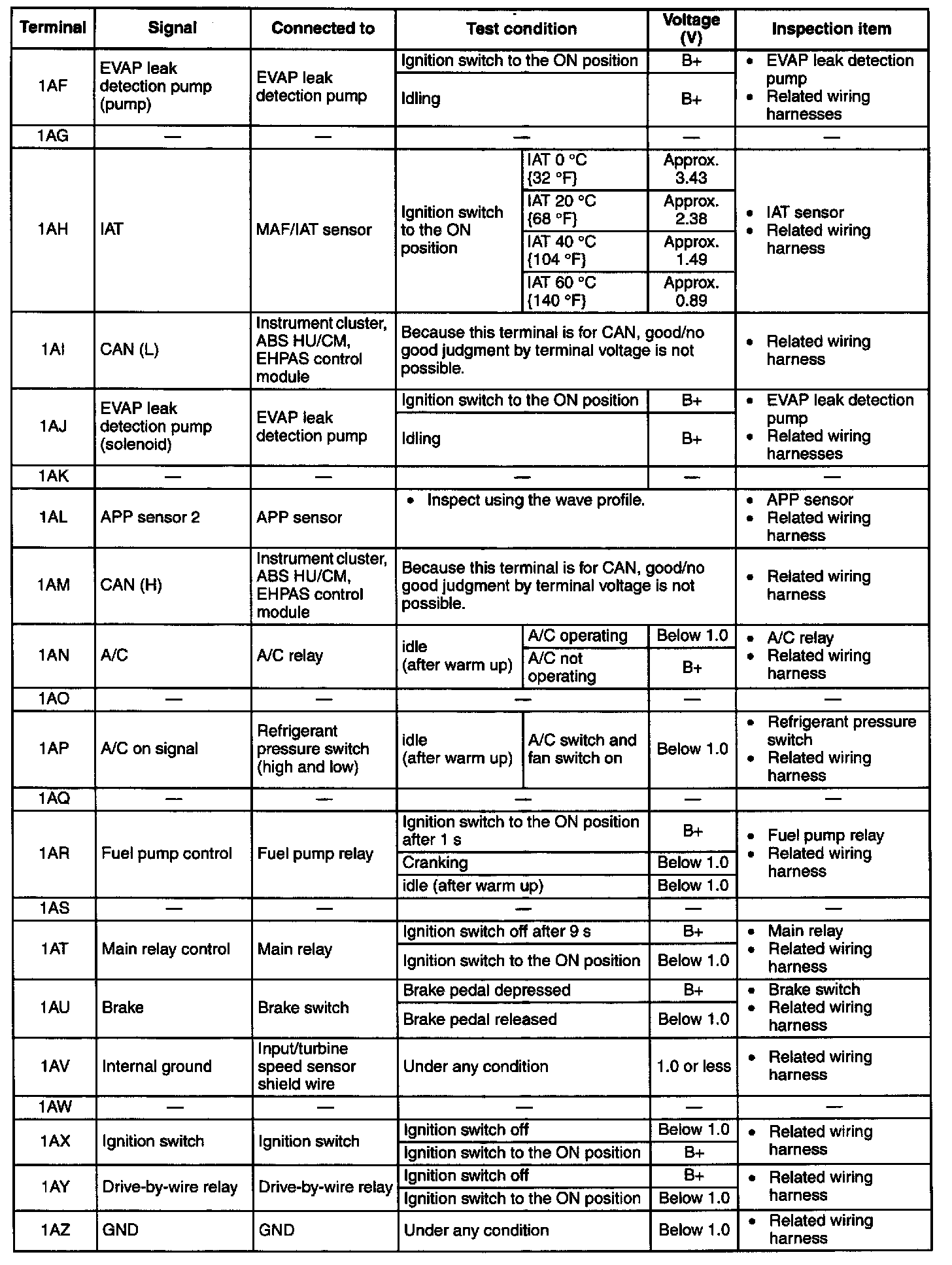

Terminal No 1AF-1AZ:

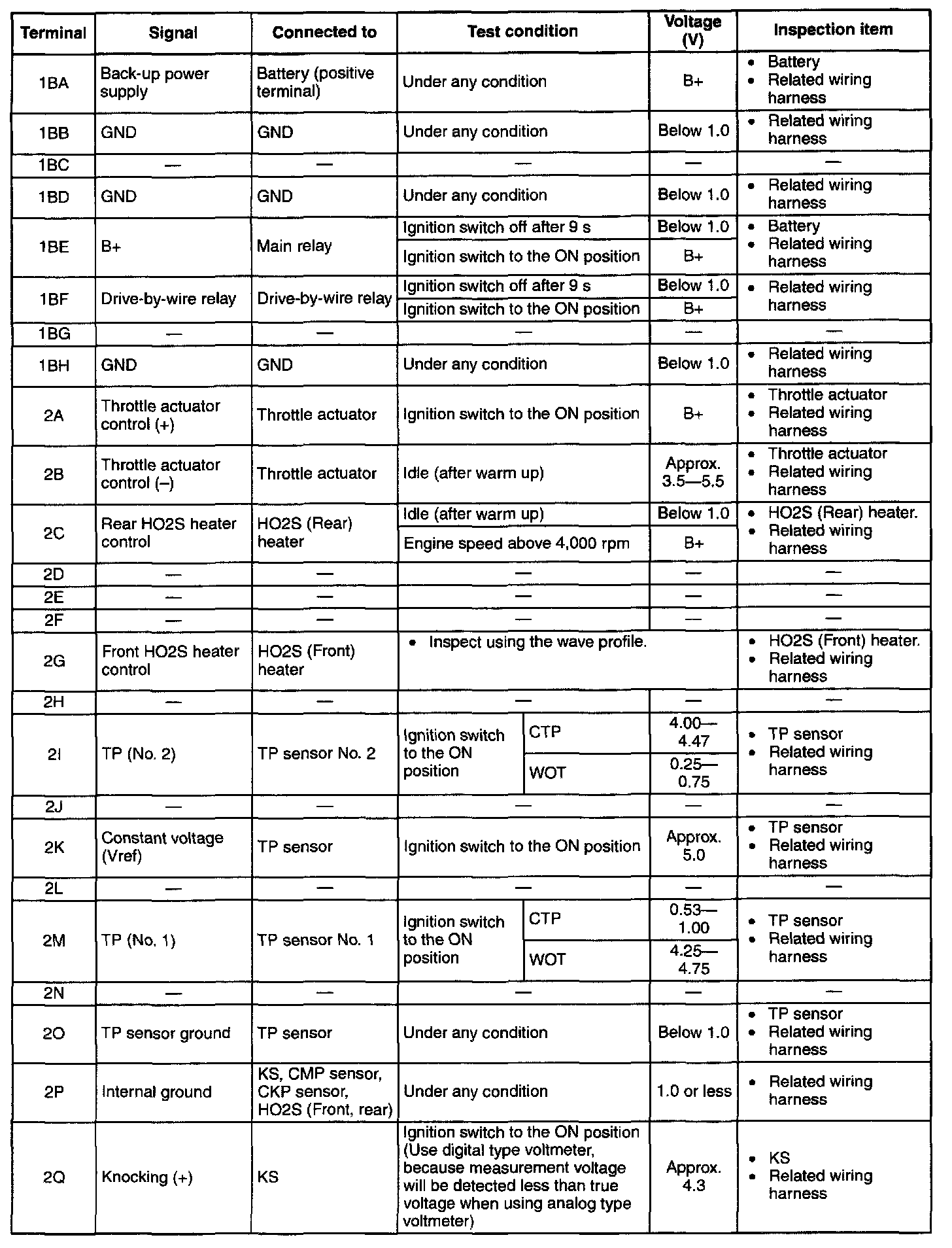

Terminal 1BA-2Q:

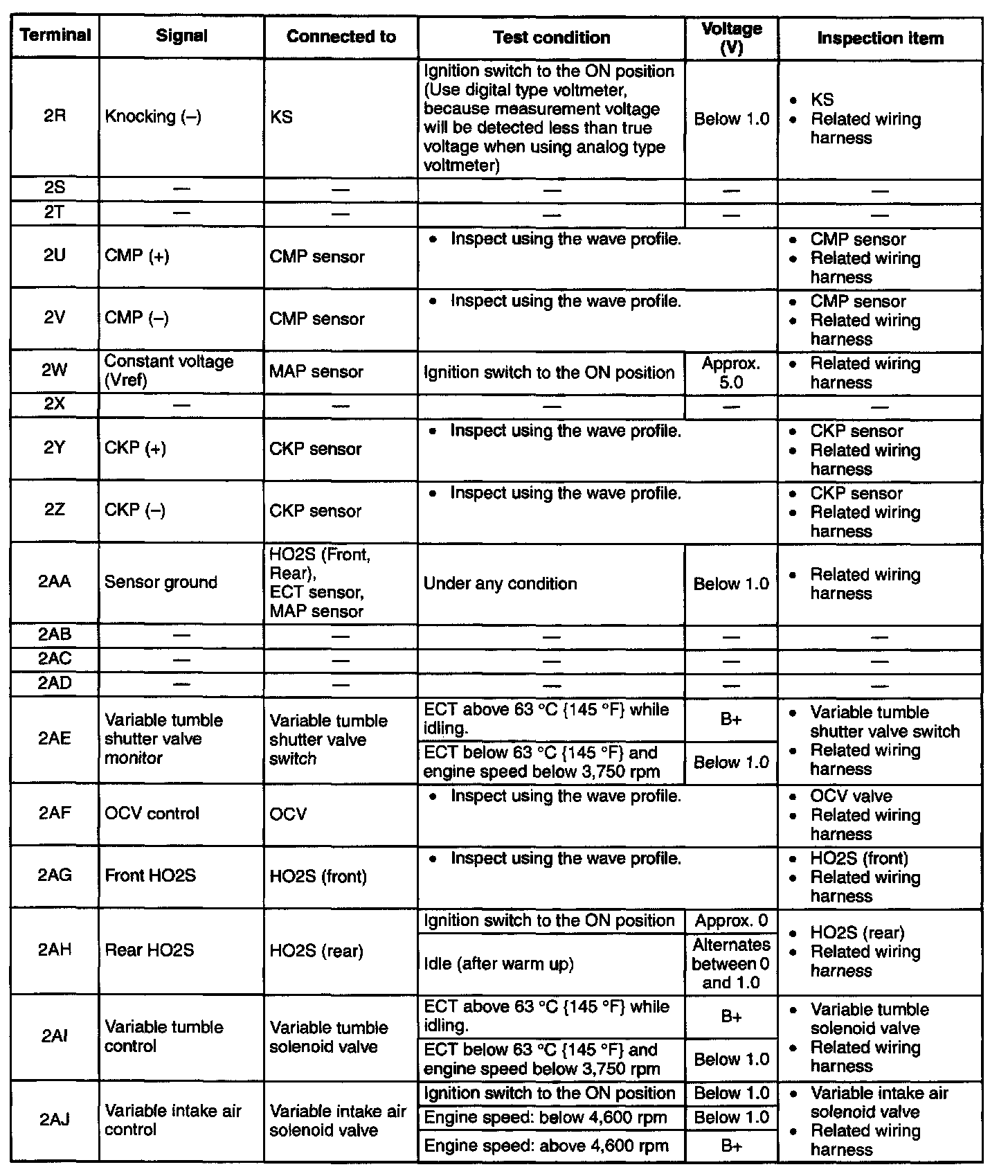

Terminal No 2R-2AJ:

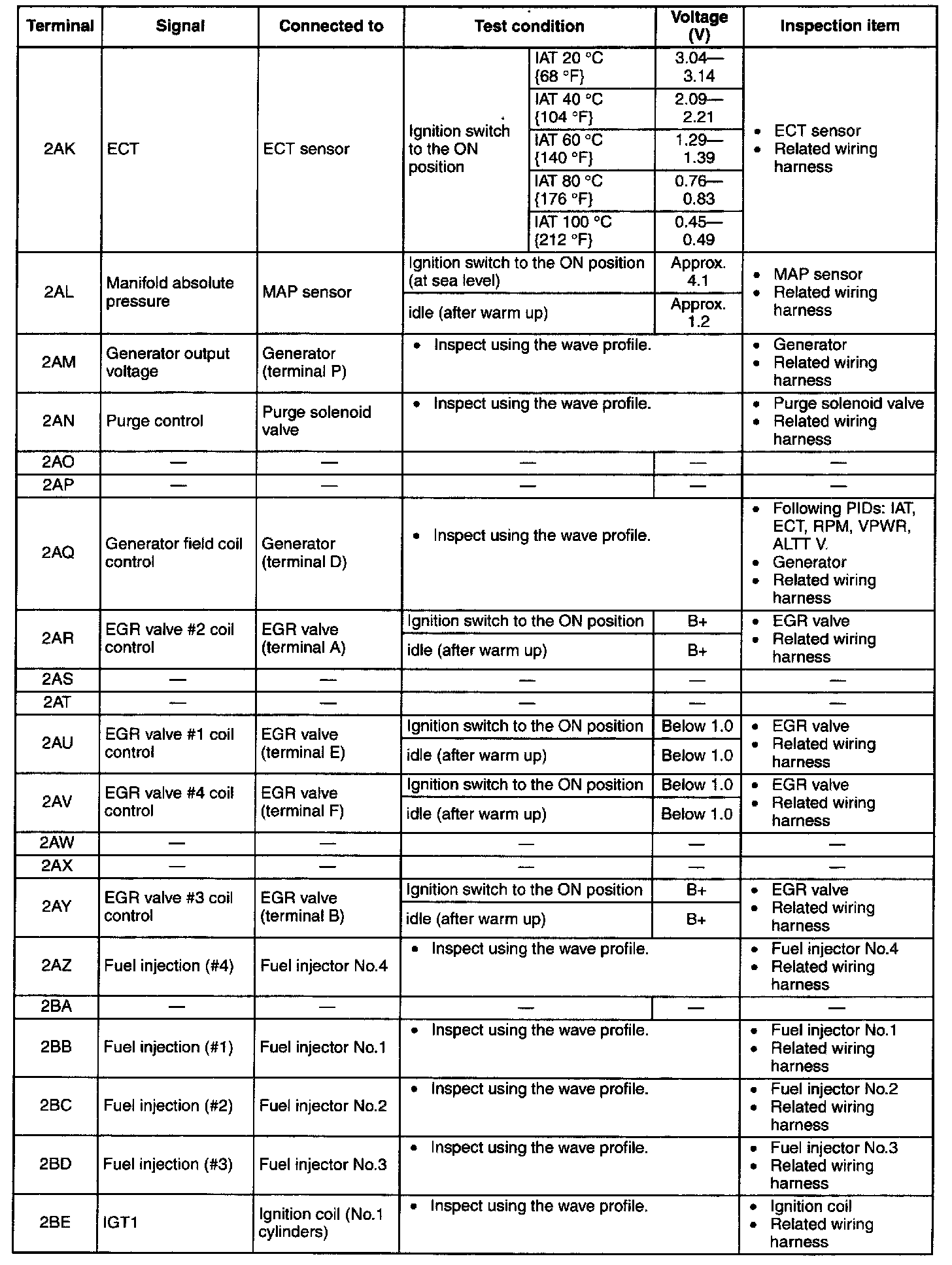

Terminal No 2AK-2BE:

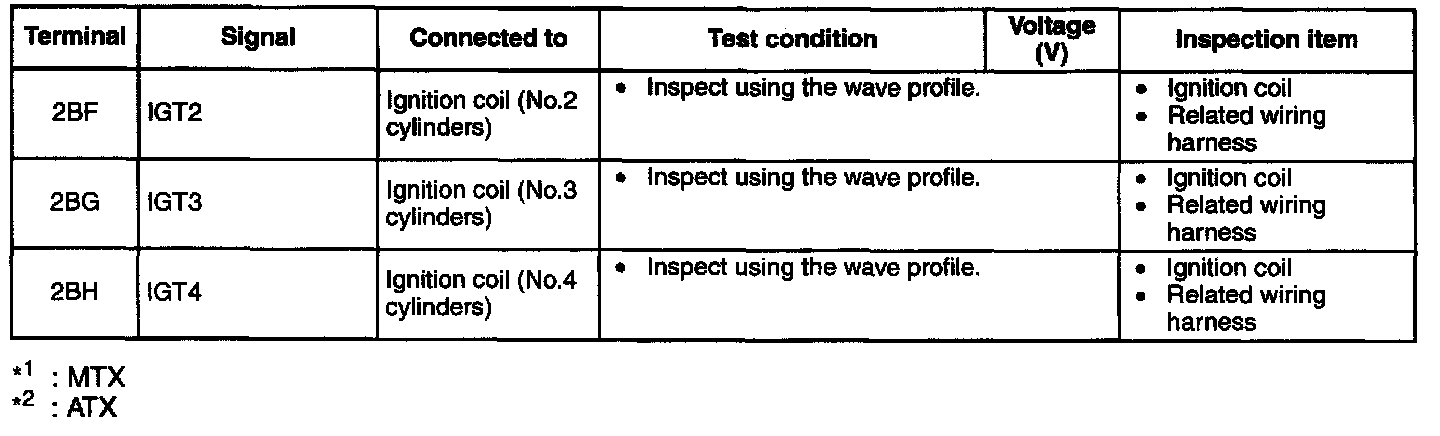

Terminal No 2BF-2BH:






NOTE: The PCM terminal voltage can vary with the conditions when measuring and changes due to aged deterioration on the vehicle, causing false diagnosis. Therefore determine comprehensively where the malfunction occurs among the input systems, output systems, and the PCM.
