Canister Purge Control Valve: Testing and Inspection

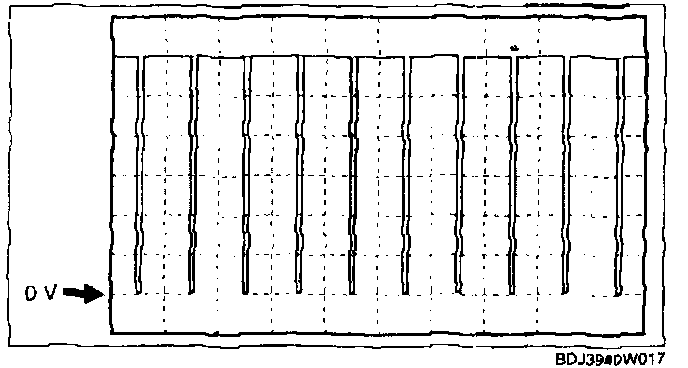

Purge control signal




- PCM terminals: 2AN (+)-body ground (-)
- Oscilloscope setting: 2 V/DIV (Y), 0.1 s/DIV (X), DC range
- Vehicle condition: Idle after warm-up
