CHARCOAL CANISTER REMOVAL/INSTALLATION [L3]

NOTE: If may be difficult to install the charcoal canister completely due to the limited operation space. Therefore, follow the charcoal canister installation instructions when installing it.

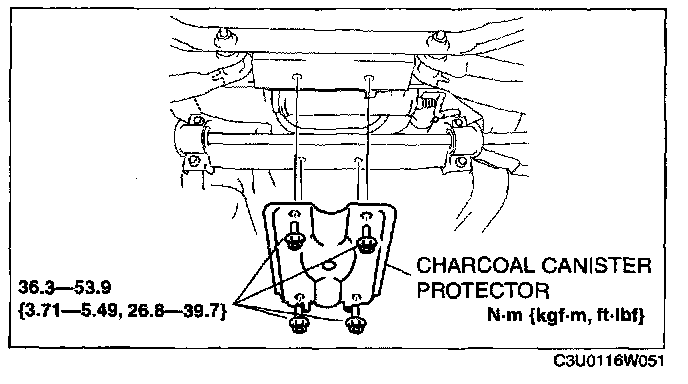

1. Remove the charcoal canister protector.

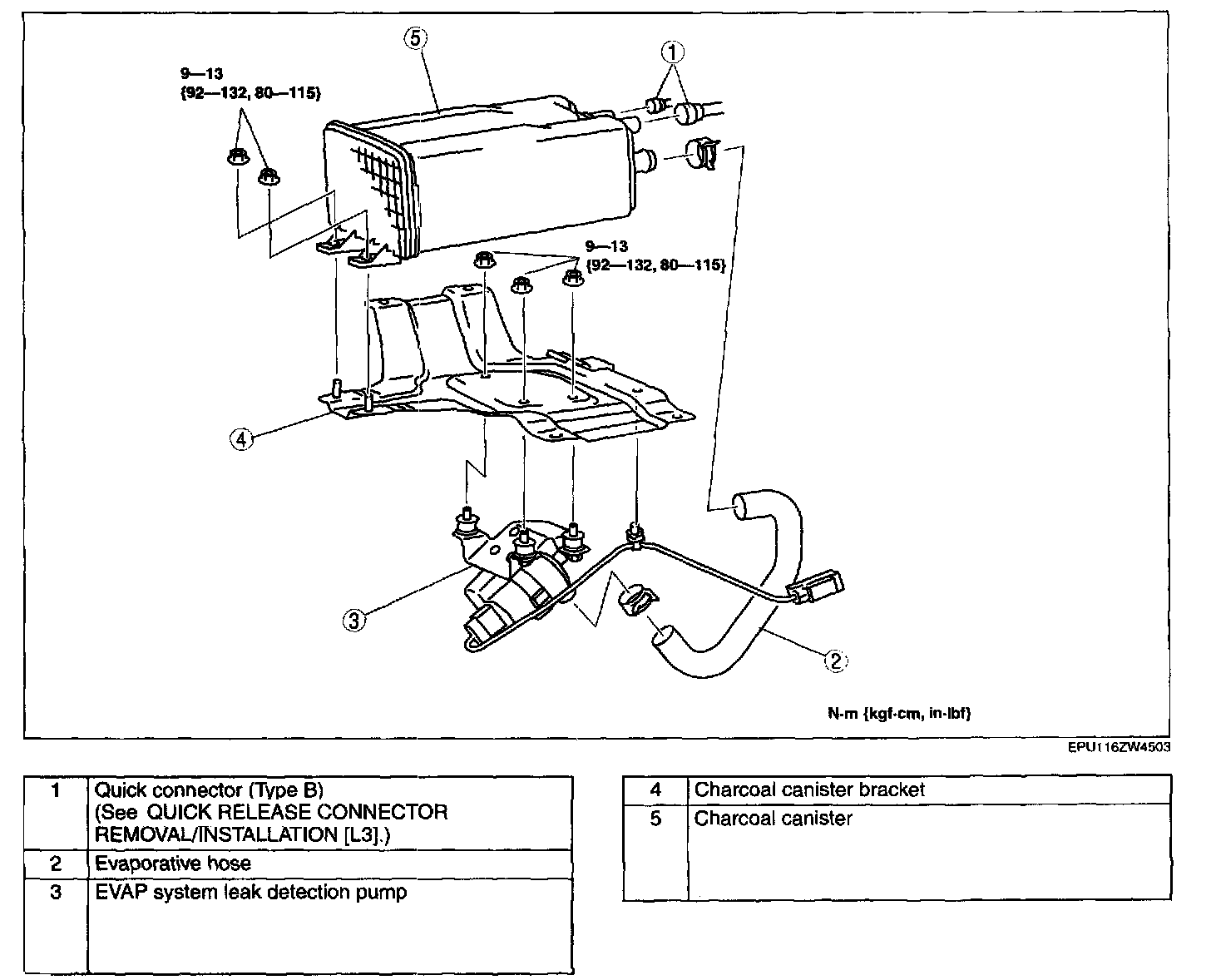

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Verify that the rear wheel alignment is within the specification.

Charcoal Canister Installation Note

1. Insert the charcoal canister completely into the bracket.

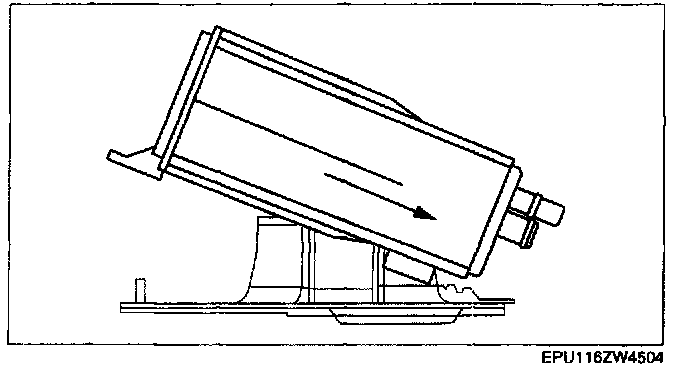

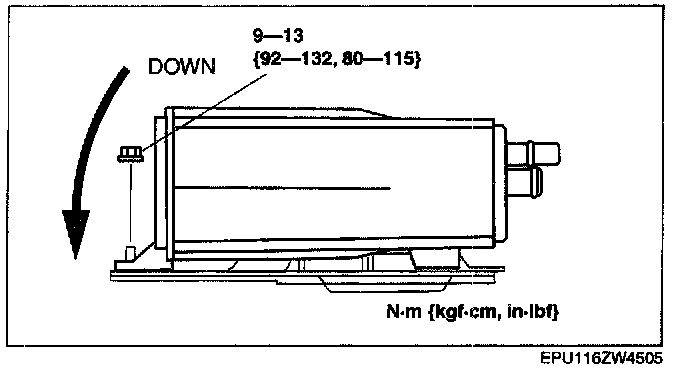

2. Install the charcoal canister as shown in the figure.
