Component Tests and General Diagnostics

Idle Speed Inspection

Note:
^ Idle speed is not adjustable.
^ Idle speed verification requires WDS or equivalent.

1. Verify that the idle speed (WDS: RPM PID) is within the specification using WDS or equivalent.

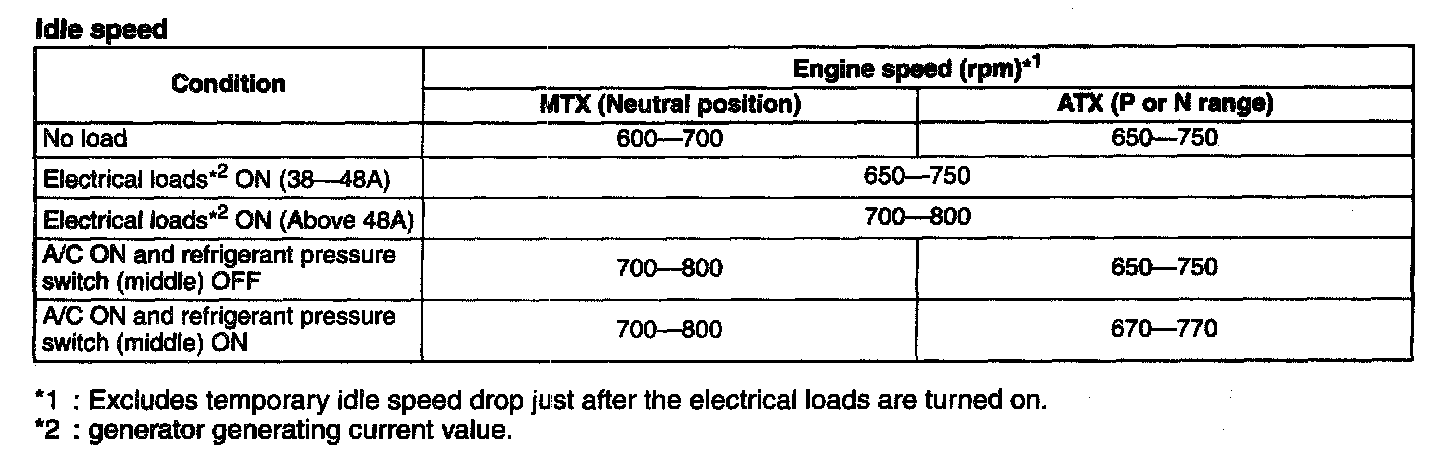

Idle speed:





^ If there malfunction, refer to ENGINE SYMPTOM TROUBLESHOOTING.
