Clockspring Assembly / Spiral Cable: Testing and Inspection
CLOCK SPRING INSPECTION 1.
Remove the clock spring.
2.

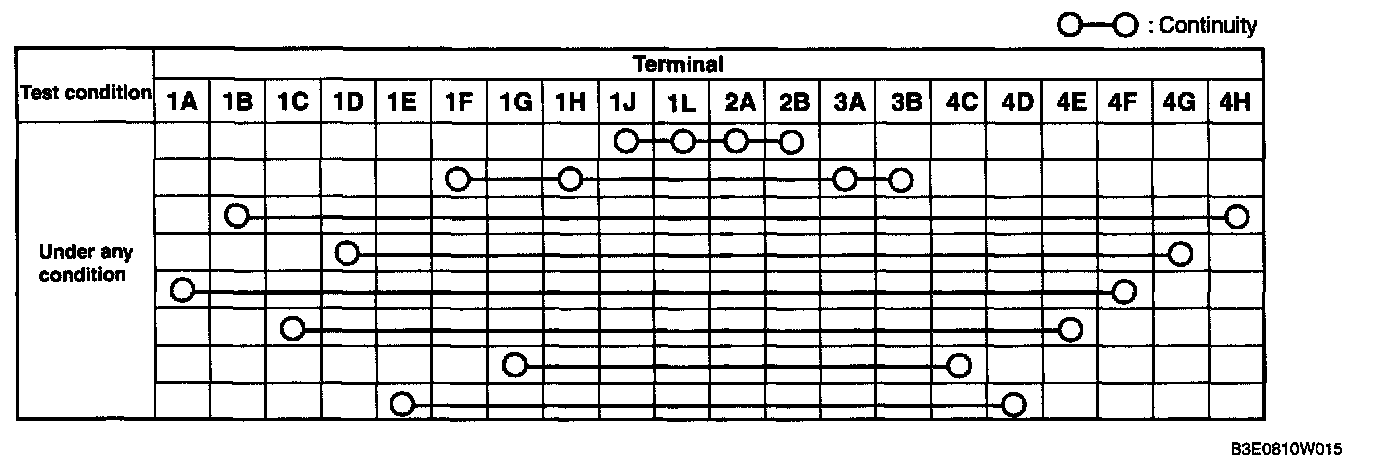

Verify that the continuity is as indicated in the table.
-
If not as indicated in the table, replace the clock spring.
NOTE: When the vehicle-side connector for the clock spring is disconnected, terminals 1 F, 1 H, 1J and 1L are shorted to prevent unexpected operation (deployment) of the air bag module.
