Malfunction Lamp / Indicator: Service and Repair

PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the following parts.
1. Front scuff plate inner
2. Front side trim
3. Side panel
4. Side wall
5. Front console
6. Glove compartment
7. Center panel unit
8. LCD unit (with car-navigation system)
9. Dashboard center panel (without car-navigation system)
10. Car-navigation unit (with car-navigation system)
11. Passenger-side air bag module
12. Dashboard garnish

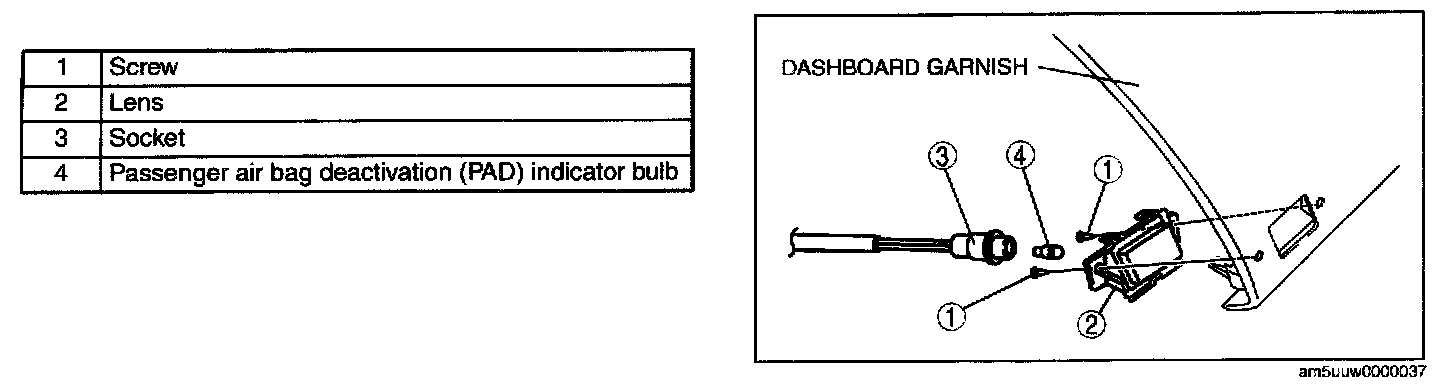

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
