Shift Interlock: Adjustments
SELECTOR CABLE ADJUSTMENT1. Remove the following parts:
(1) Side wall
(2) Selector lever knob
(3) Indicator panel
(4) Console
2. Shift the selector lever to the P position.
3. Loosen the nut of the selector cable end (selector lever component side).
4. Verify that the manual shaft is in the P position.
5. Install the nut of the selector cable end in such a way that the selector lever does not bear a load.
Tightening torque
10-15 Nm (1.1-1.5 kgf.m, 7.4-11.0 ft.lbf)

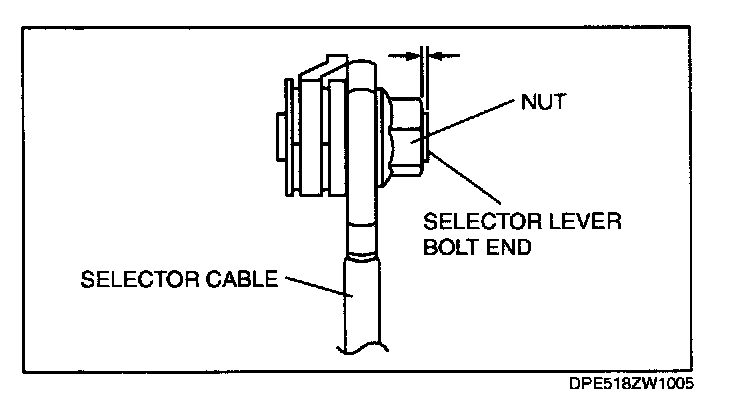

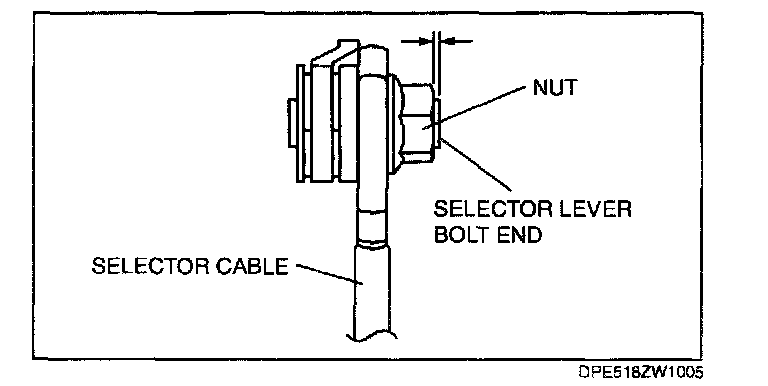

6. Verify that the selector lever bolt end is exposed from the nut.
7. Install the following parts:
(1) Console
(2) Indicator panel
(3) Selector lever knob
(4) Side wall
8. Shift the selector lever from the P position to M range, and make sure that there are no other components in that area to interfere with the lever.
