Selector Lever Component Inspection

SELECTOR LEVER COMPONENT INSPECTION
1. Remove the battery duct and battery cover.
2. Disconnect the negative battery cable.
3. Remove the following parts:
(1) Side wall
(2) Selector lever knob
(3) Indicator panel
(4) Console

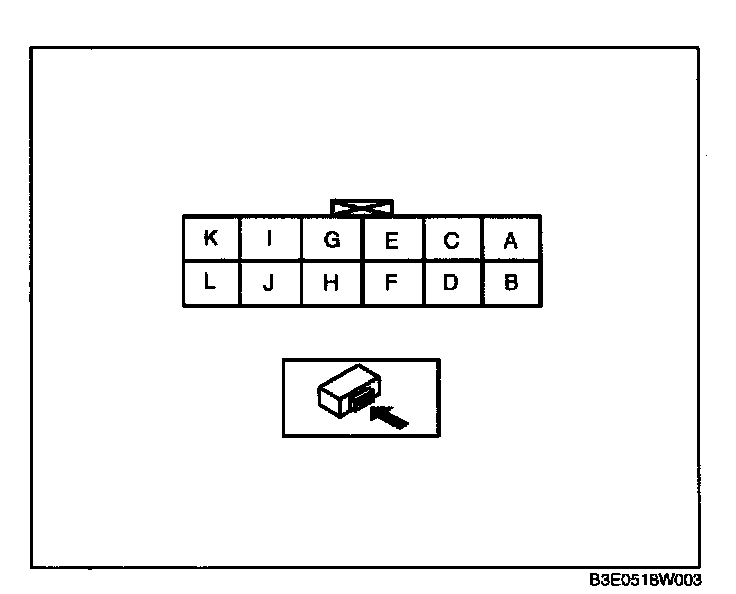

4. Disconnect the selector lever component connector.

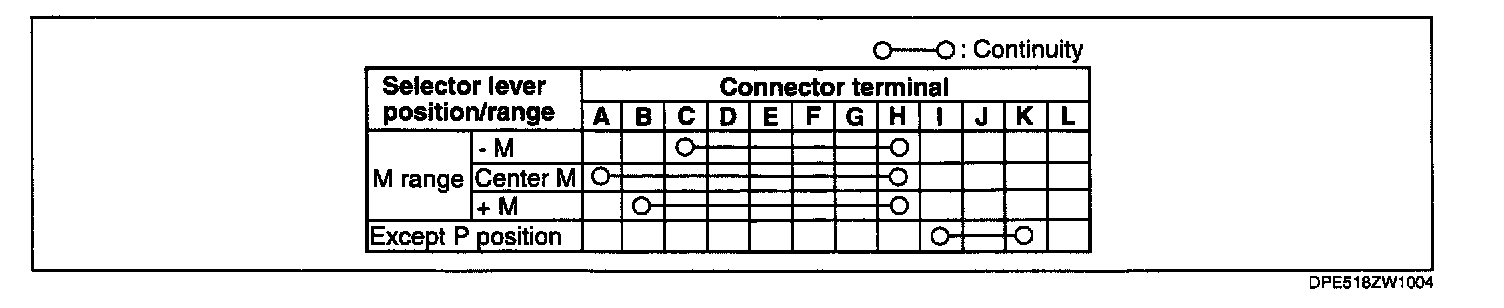

5. Verify that the continuity is as indicated in the table.
^ If there is any malfunction, replace the selector lever component.
