Shift-Lock Solenoid Inspection
SHIFT-LOCK SOLENOID INSPECTION 1.
Remove the battery duct and battery cover.
2.
Disconnect the negative battery cable.
3.
Remove the following parts:
(1)
Side wall
(2)
Selector lever knob
(3)
Indicator panel
(4)
Console
4.
Disconnect the selector lever component connector.
5.

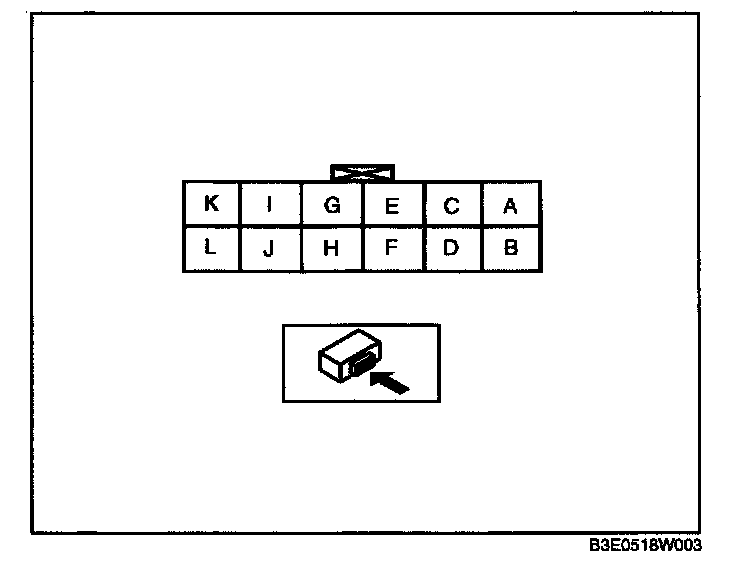

Measure the continuity between terminals I and K.
^
If there is any malfunction, replace the selector lever component.
