Gear Sensor/Switch: Service and Repair

NEUTRAL SWITCH REMOVAL/INSTALLATION [G35M-R]
1. Remove the undercover.

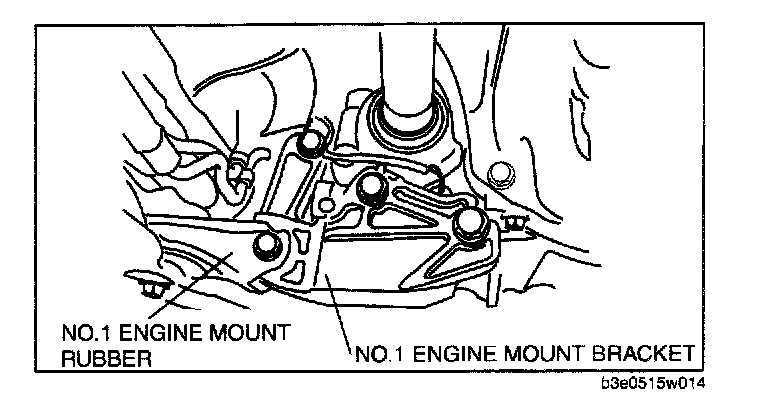

2. Remove the No.1 engine mount rubber and No.1 engine mount bracket.

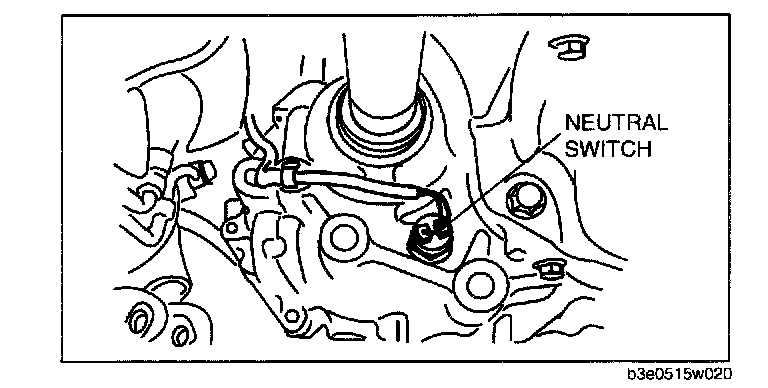

3. Remove the neutral switch.
4. Install the neutral switch (with a new packing) to the transaxle case.

Tightening torque
20-29 Nm (2.0-2.9 kgf.m, 15-21 ft.lbf)

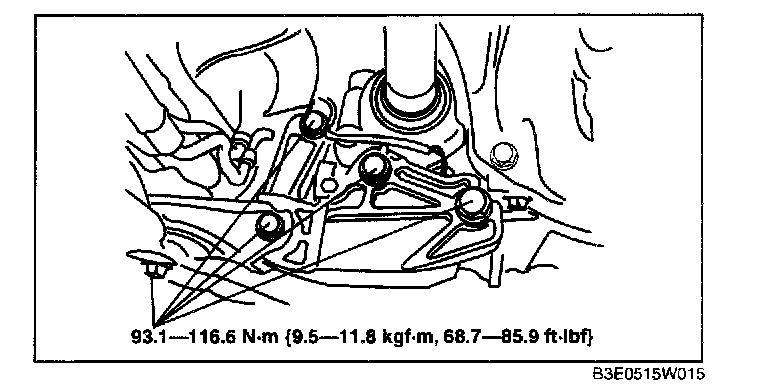

5. Install the No.1 engine mount bracket and No.1 engine mount rubber.
