Transaxle Oil Inspection (G35M-R)
TRANSAXLE OIL INSPECTION [G35M-R]1. Park the vehicle on level ground.
2. Remove the oil level plug and washer.

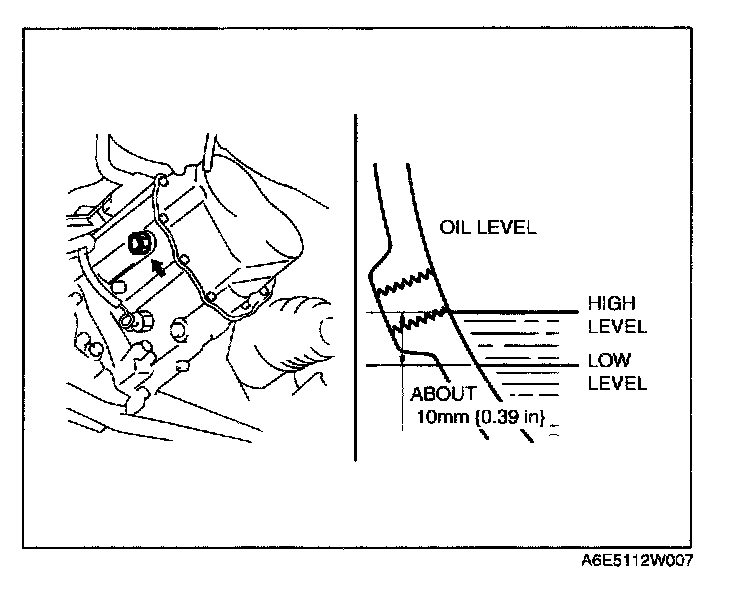

3. Verify that the oil is near the brim of the plug port.
^ If the oil level is lower than the low level, add the specified amount and type of oil through the oil level plug hole.
Manual transaxle oil
Grade: API Service GL-4 or GL-5
Viscosity (all-season): SAE 75W-90
Viscosity (above 10°C (50°F)): SAE 80W-90
4. Install a new washer and the oil level plug.
Tightening torque
39-59 Nm (4.0-6.0 kgf.m, 29-43 ft.lbf)
