Front Door Glass Removal/Installation

FRONT DOOR GLASS REMOVAL/INSTALLATION

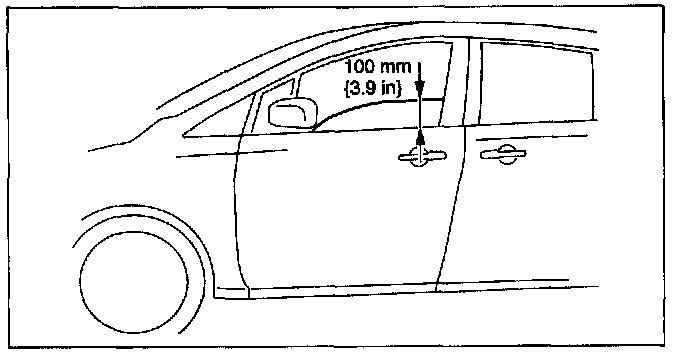

1. Adjust the door glass position as shown in the above figure.
2. Remove the battery cover.
3. Disconnect the negative battery cable.
4. Remove the inner garnish.
5. Remove the front door trim.
6. Remove the front door speaker.

NOTE: When installing the front door glass, the front door speaker must be removed to align the glass edge with the glass run channel by hand through the speaker installation hole.
