Front Door Quarter Glass Removal/Installation

FRONT DOOR QUARTER GLASS REMOVAL/INSTALLATION

1. Fully open the front door glass.
2. Remove the battery cover.
3. Disconnect the negative battery cable.
4. Remove the inner garnish.
5. Remove the front door trim.

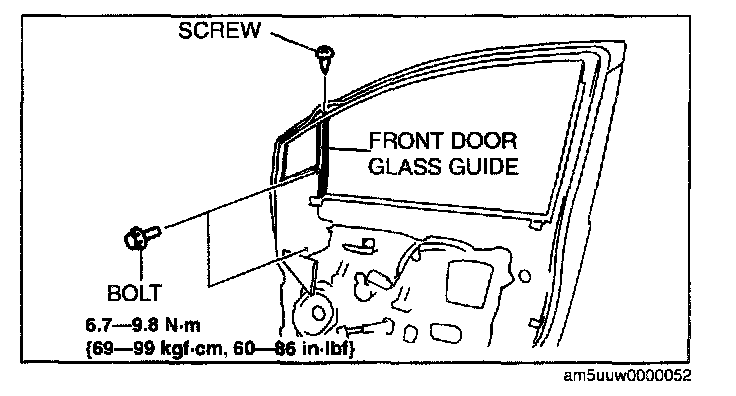

6. Remove the bolts and screw.
7. Remove the front door glass guide and glass run channel as a single unit.

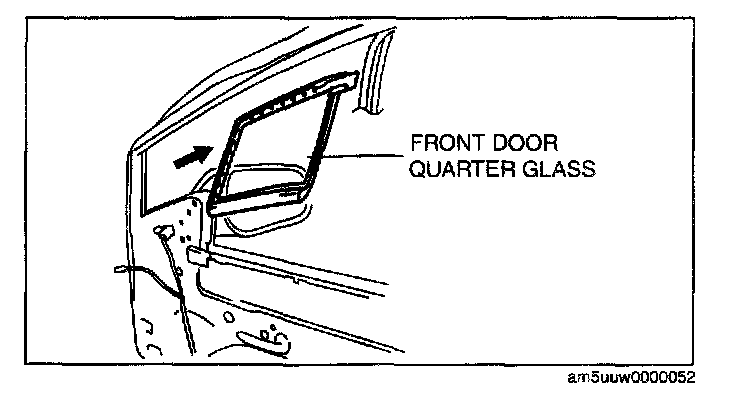

8. Remove the front door quarter glass.
9. Install in the reverse order of removal.
