Sliding Door Glass Removal/Installation

SLIDING DOOR GLASS REMOVAL/INSTALLATION

1. Fully open the sliding door glass.
2. Remove the battery cover.
3. Disconnect the negative battery cable.
4. Remove the side door garnish.
5. Remove the rear side trim.
6. Remove the sliding door trim.

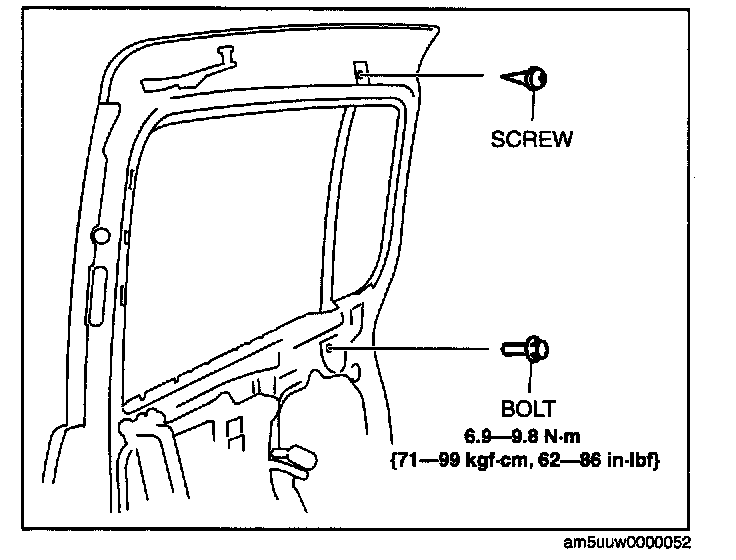

7. Remove the bolt and screw.






8. Remove the rear door glass guide and glass run channel as a single unit.
9. Connect the power window subswitch connector.
10. Connect the negative battery cable.






11. Adjust the door glass position as shown in the figure.






12. Remove the hole cover.
13. Remove the screw.
14. Lift the sliding door glass up and remove it by sliding it to the vehicle rear.
15. Install in the reverse order of removal.
