Sliding Door Quarter Glass Removal/Installation

SLIDING DOOR QUARTER GLASS REMOVAL/INSTALLATION

1. Fully open the sliding door glass.
2. Remove the battery cover.
3. Disconnect the negative battery cable.
4. Remove the sliding door garnish.
5. Remove the side door garnish.
6. Remove the rear side trim.
7. Remove the sliding door trim.

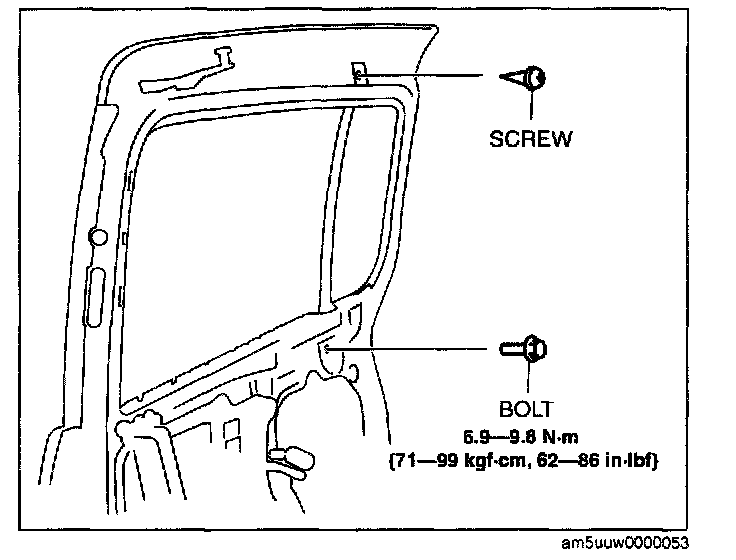

8. Remove the bolt and screw.






9. Remove the rear door glass guide and glass run channel as a single unit.

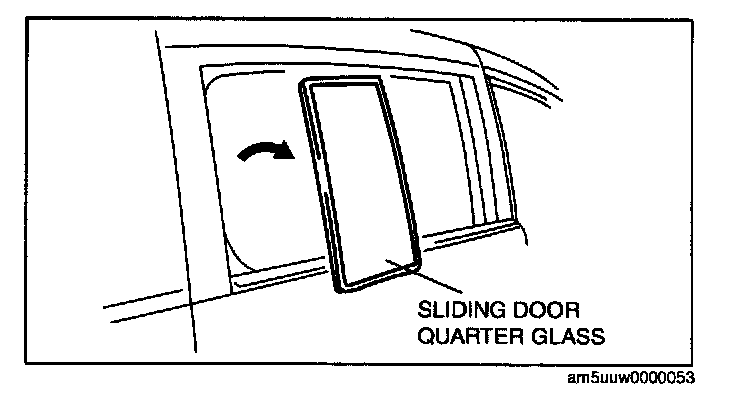

10. Remove the sliding door glass.
11. Install in the reverse order of removal.
