Front Power Window Regulator

FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION

1. Remove the following parts:
1. Inner garnish
2. Front door trim
3. Front door glass
4. Power window motor

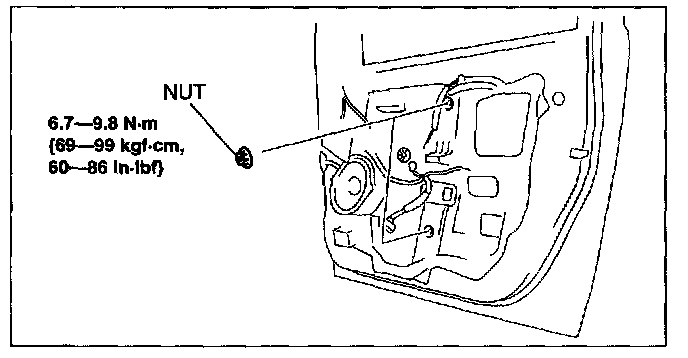

2. Remove the nuts.

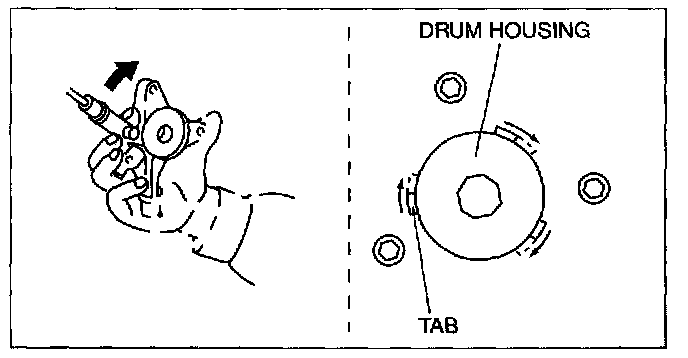

3. Insert a hand through the service hole, rotate the drum housing in the direction shown in the figure to detach the tabs from the front door unit.

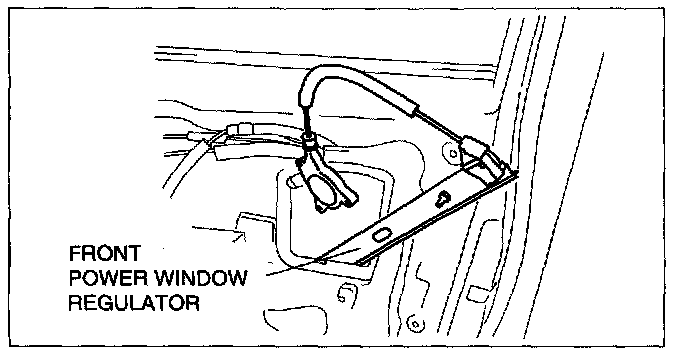

4. Remove the front power window regulator through the service hole.
5. Install in the reverse order of removal.

CAUTION: Make sure the cable does not unspool from the drum housing when installing.
