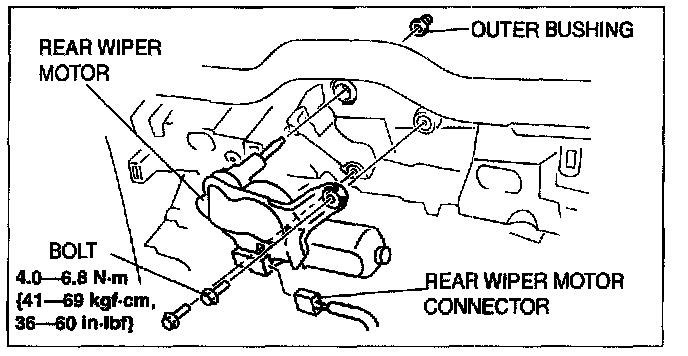

Rear Wiper Motor
REAR WIPER MOTOR REMOVAL/INSTALLATION 1.
Remove the battery cover.
2.
Disconnect the negative battery cable.
3.
Remove the rear
wiper arm and blade.
4.
Remove the liftgate trim.
5.
Disconnect the rear wiper motor connector.
6.
Remove the bolts, then remove the rear wiper motor.
7.
Remove the outer bushing.
8.
Install in the reverse order of removal.
