Procedures
COOLING FAN REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Drain the engine coolant.
3.
Remove the shroud panel.
4.
Remove the cooler pipe stay.
5.
Remove the oil hose stay. (ATX)
6.
Disconnect the coolant reservoir hose from the radiator.
7.

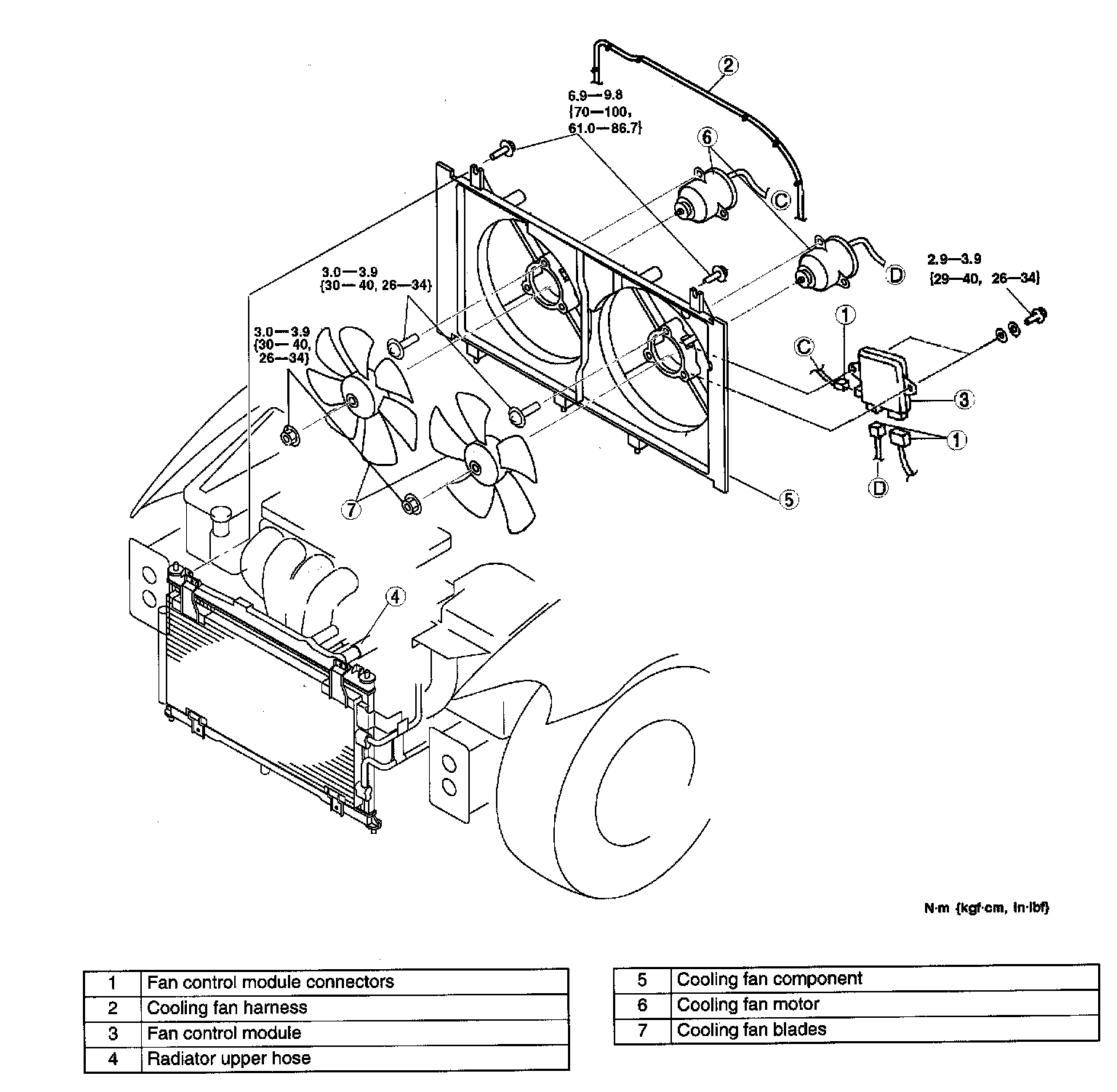

Remove in the order indicated in the table.
8.
Install in the reverse order of removal.
9.
Add the engine coolant.
