Throttle Body: Service and Repair

THROTTLE BODY REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.




2. Disconnect the breather tube and the air inlet tube.




3. Remove the bolt and the snow shield.




4. Disconnect the throttle position (TP) sensor electrical connector.

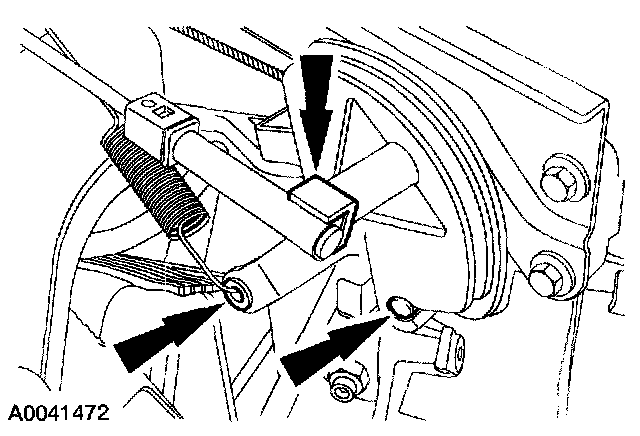

5. Disconnect the accelerator cable, cruise control actuator cable and return spring.




6. Remove the bolts and the throttle body.
7. If required remove the throttle body gasket.
8. If required, remove the TP sensor.
9. To install, reverse the removal procedure.
