Automatic Transmission External Controls Pinpoint Test 3:Transmission Control Switch (Over-Drive OD, On/Off) Is Not Operational

AUTOMATIC TRANSMISSION EXTERNAL CONTROLS PINPOINT TEST 3: THE TRANSMISSION CONTROL SWITCH (OVER-DRIVE OD, ON/OFF) IS NOT OPERATING PROPERLY

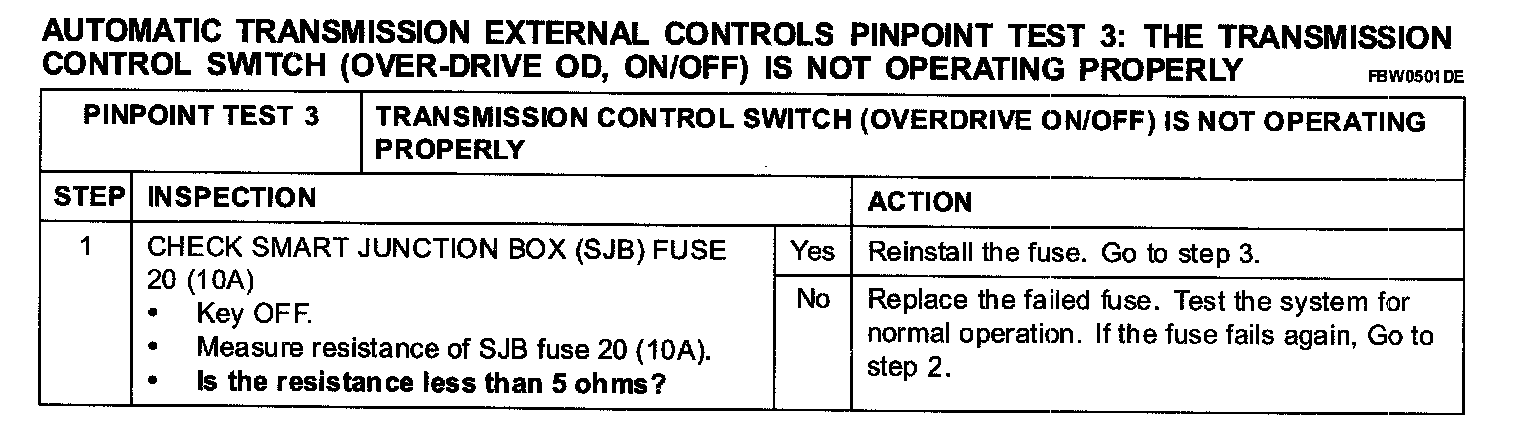

Step 1:

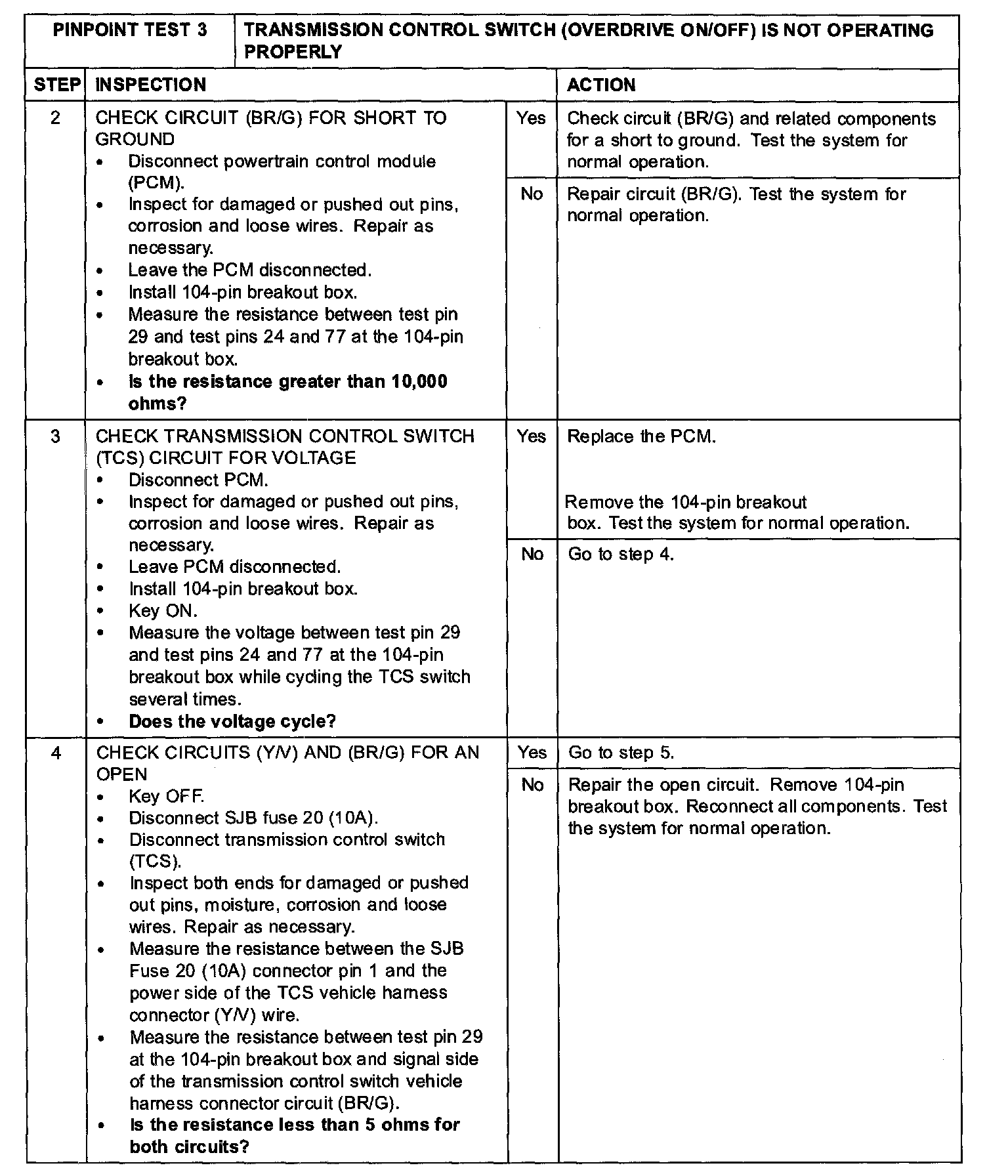

Step 2-Step 4:

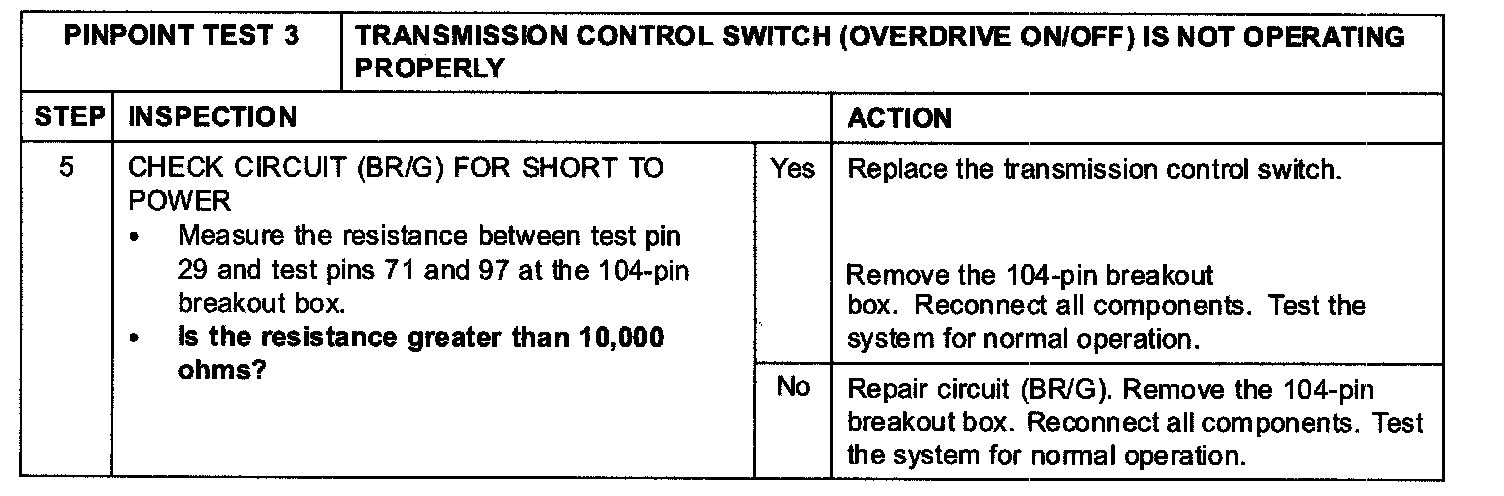

Step 5:
