Transfer Case Electronic Shift Pinpoint Test 1: Electronic Shift Functional Test

Test 1:

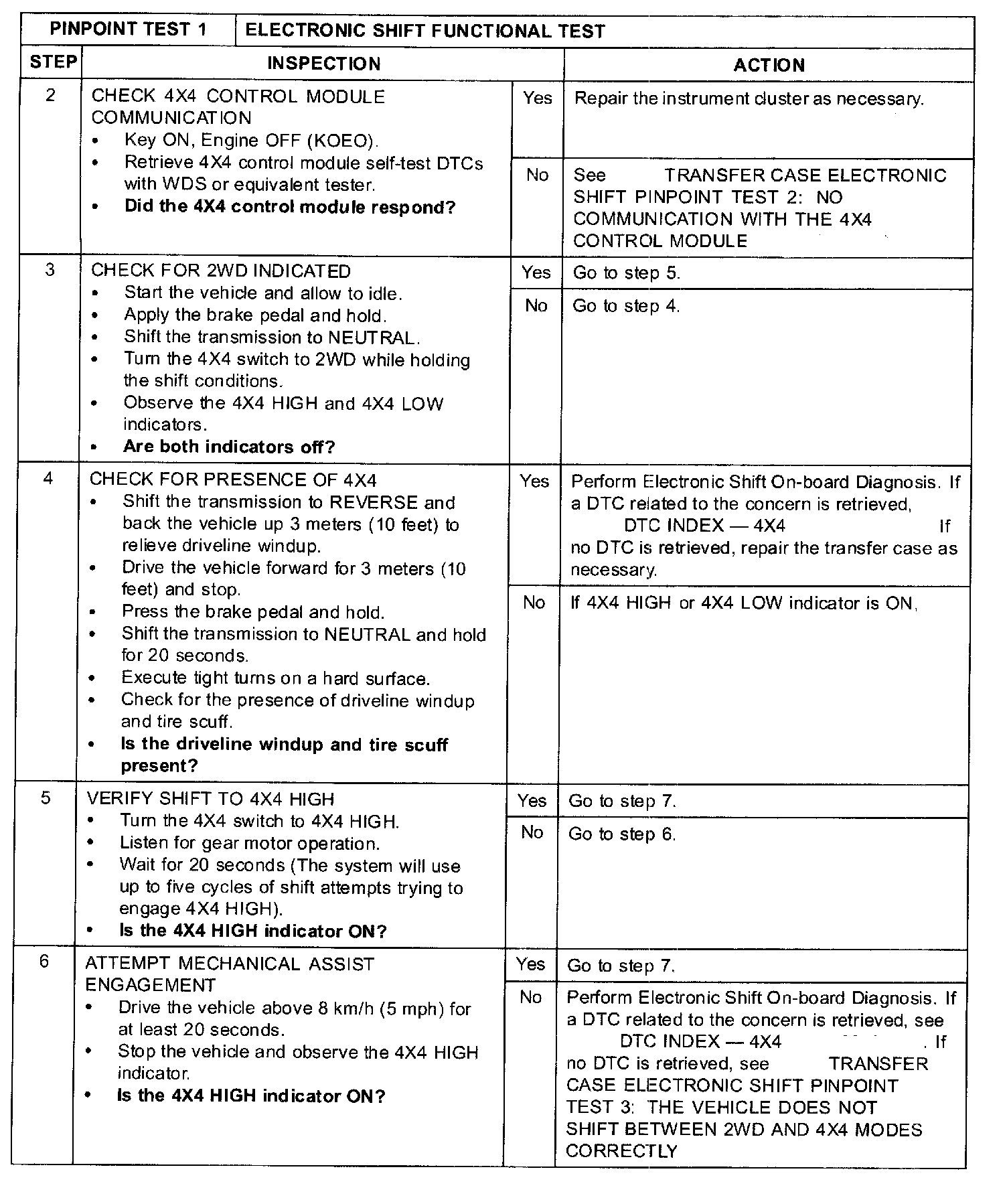

Test 2-6:

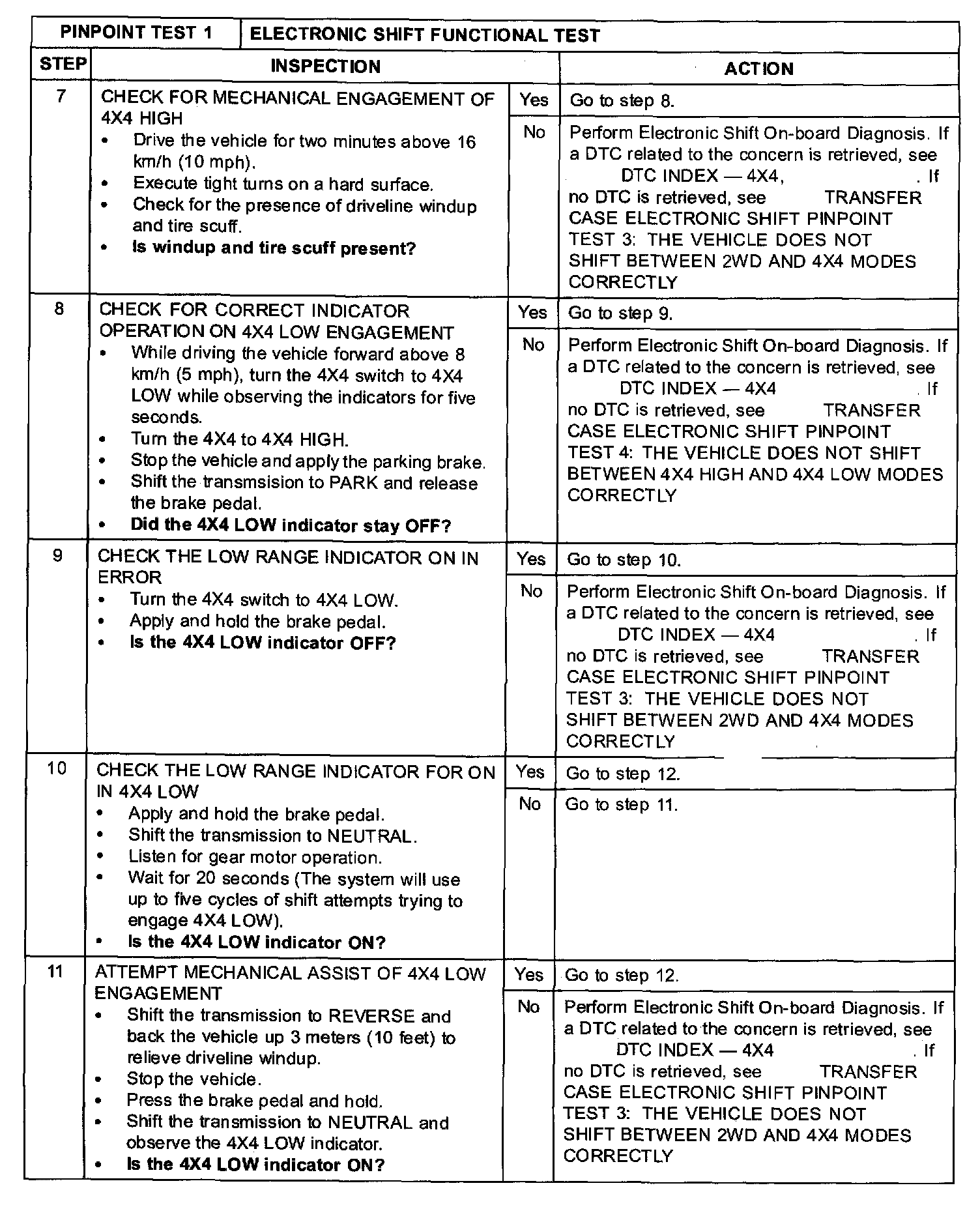

Test 7-11:

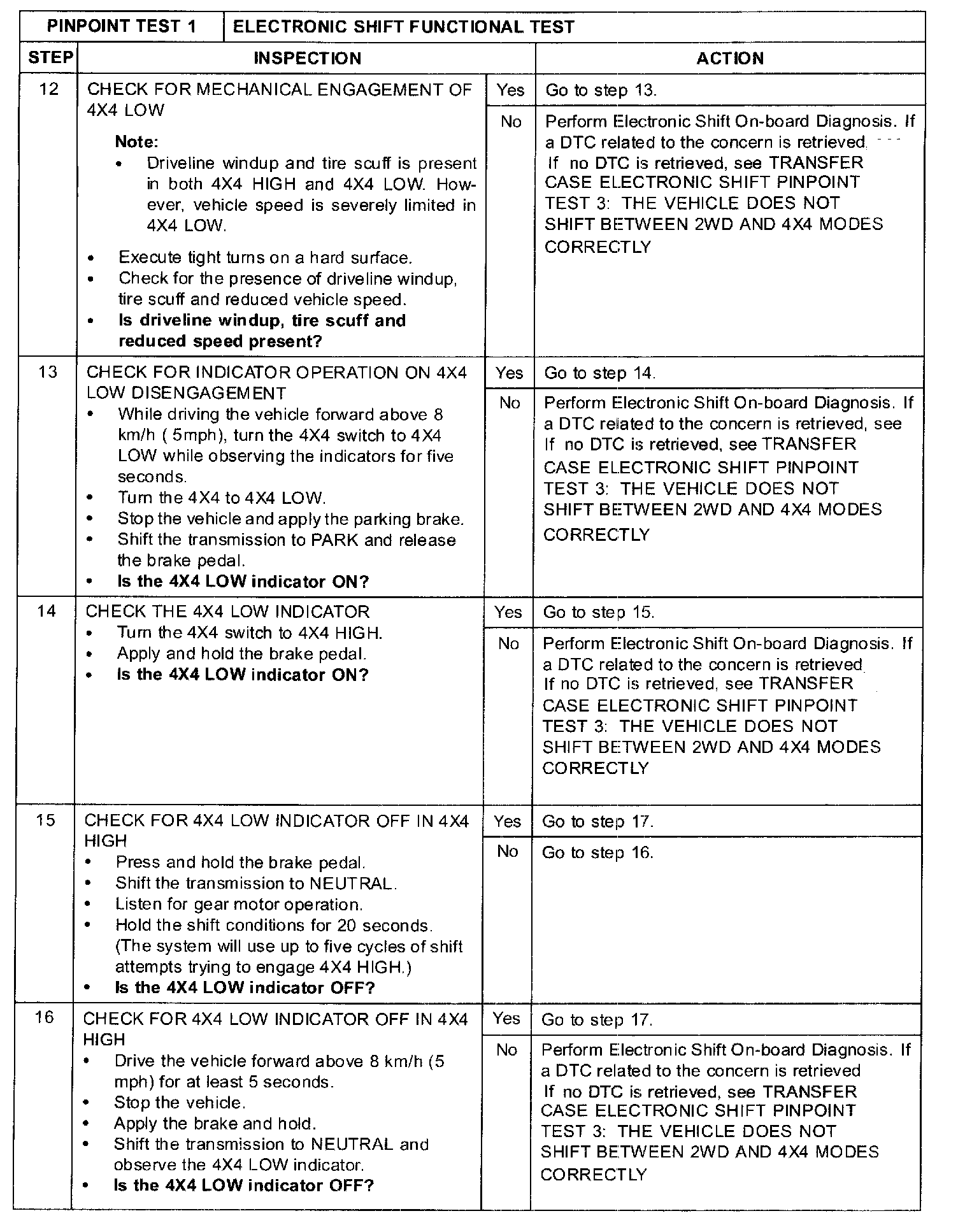

Test 12-16:

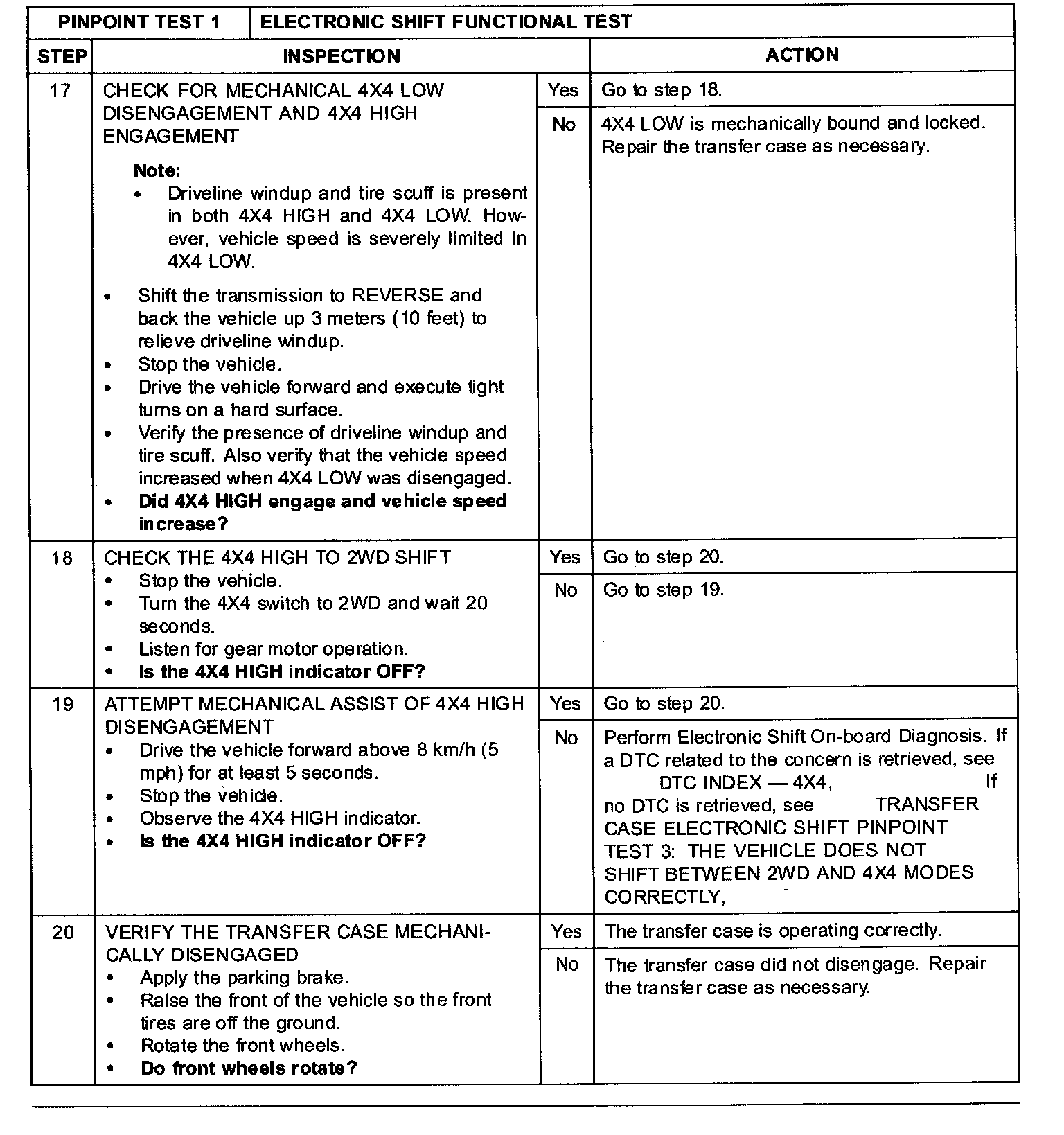

Test 17-20:





Transfer Case Electronic Shift Pinpoint Test 1: Electronic Shift Functional Test
