Climate Control Unit Installation [Manual Air Conditioner]
CLIMATE CONTROL UNIT INSTALLATION [MANUAL AIR CONDITIONER] 1.

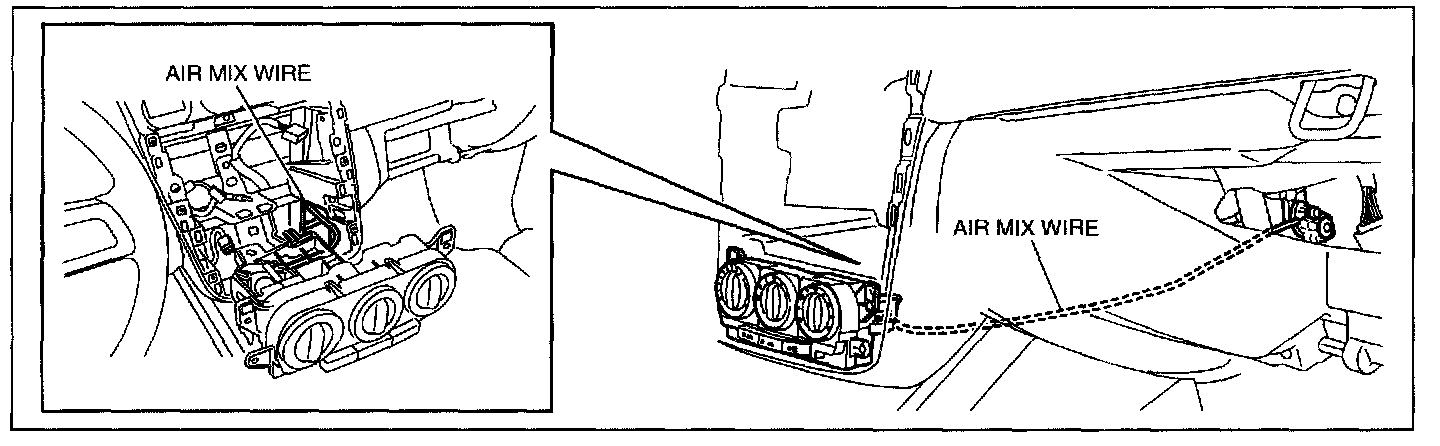

Pass air mix wire through the following routes then connect to A/C unit. (Manual air conditioner)
2.
Install the following parts:
1
Climate control unit to the dashboard.
2
Audio unit
3
Center panel
4
Lower panel
5
Console
3
Adjust the air mix wire.
4
Install the globe compartment.
