[2WD]

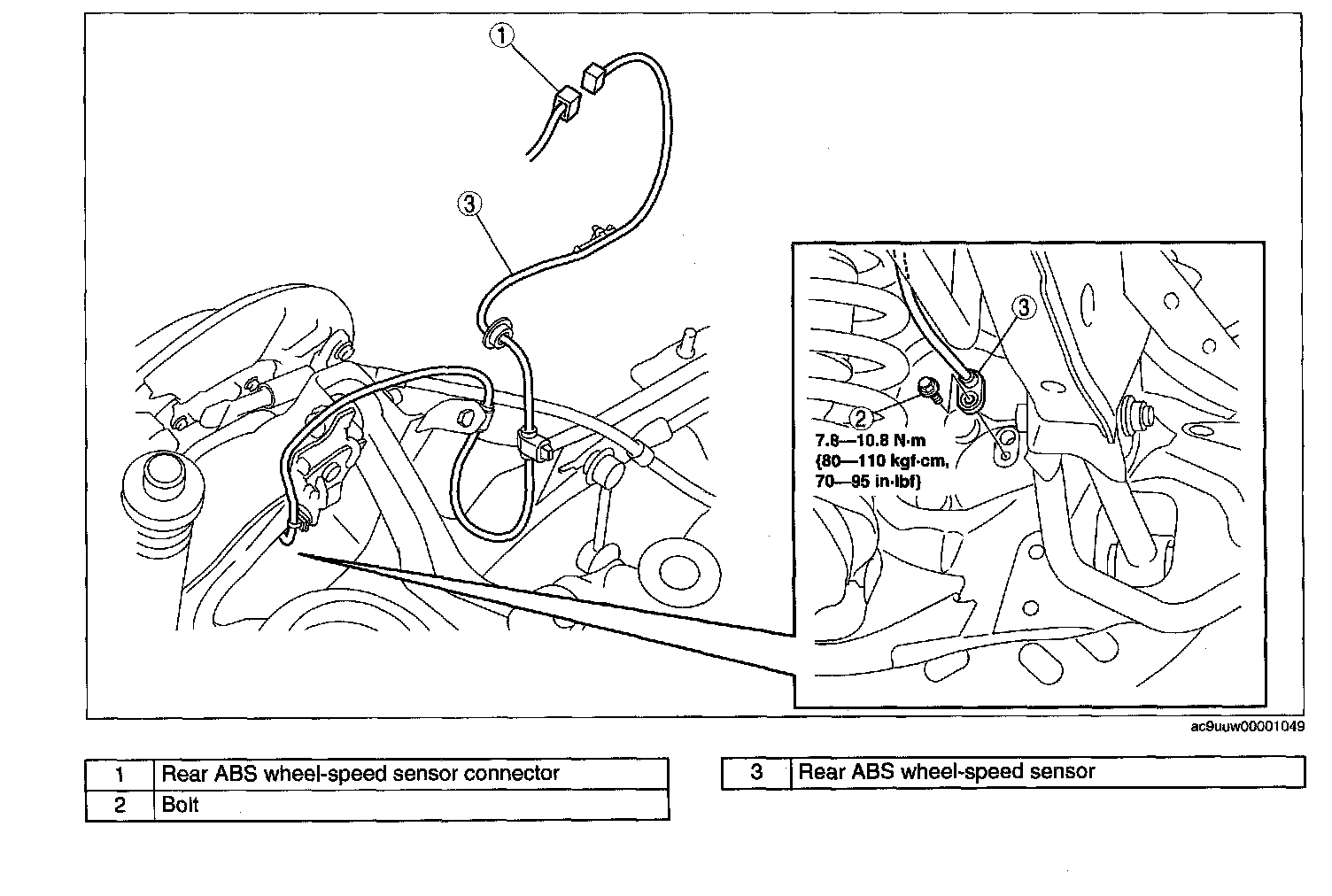

REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [2WD] 1.
Remove the trunk box.
2.
Remove the seat side box.
3.
Remove the third-row seat.
4.
Remove the rear scuff plate inner.
5.
Remove the third-row seat belt lower anchor installation bolt.
6.
Remove the trunk side trim.
7.
Remove in the order indicated in the table.
8.
Install in the reverse order of removal.
