Interior - Grease Seeping From Audio Panel

TSB: 09-016/07

2007 CX-9 - GREASE SEEPS FROM AUDIO PANEL

BULLETIN NOTE
This bulletin supersedes the previous bulletin issued on 4/7/2007. The WARRANTY INFORMATION section has been revised.

APPLICABLE MODEL(S)/VINS
2007 CX-9 with VINs before JM3 TB**** ** 114358 (produced before March 1, 2007)

DESCRIPTION

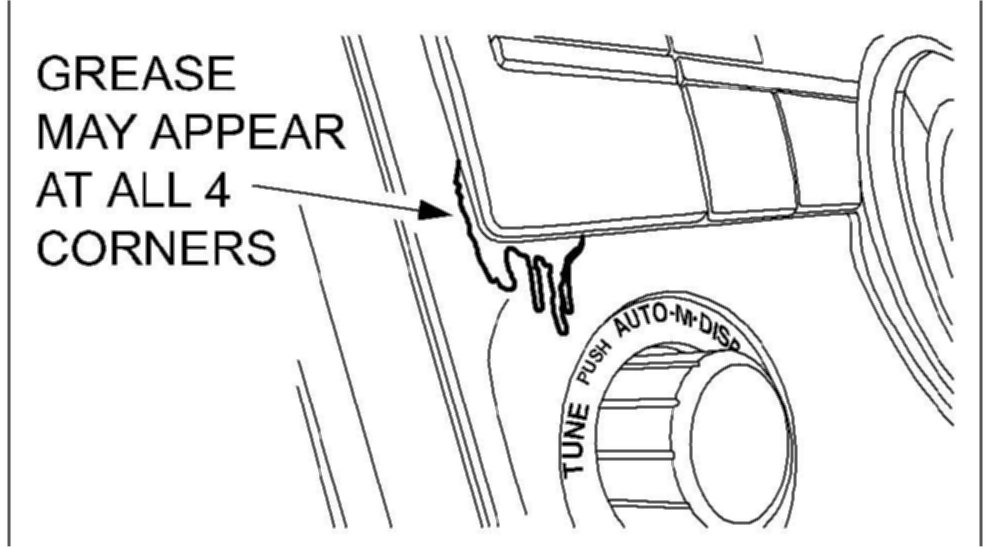

On some vehicles, grease may seep out from the corners of the audio panel. An excessive amount of grease was applied to the back of the switch during production. As a mass-production change, the amount of grease has been reduced.

Customers having this concern should have their vehicle repaired using the following repair procedure.

REPAIR PROCEDURE

1. Verify customer concern.

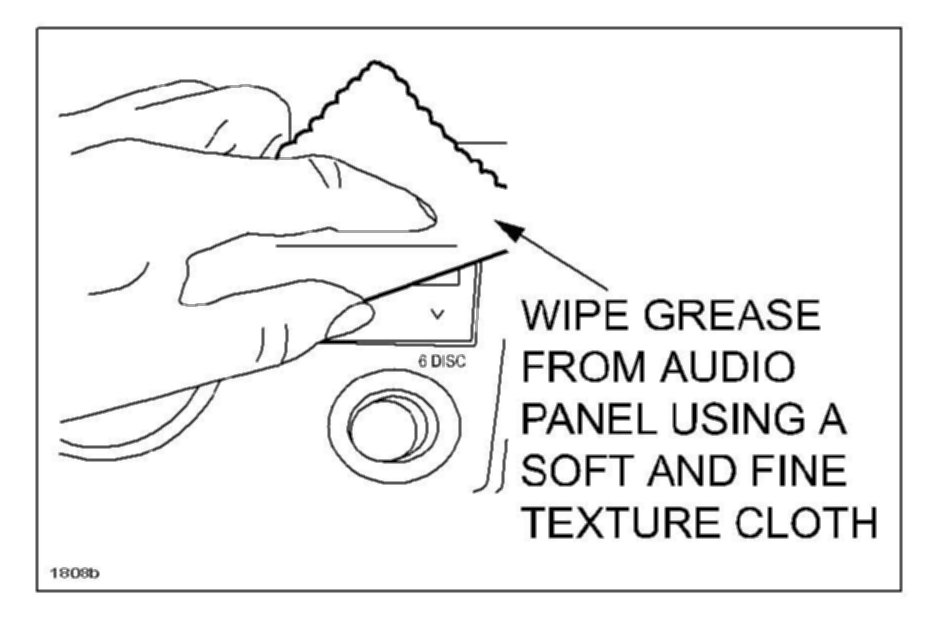

2. Using a microfiber cloth (locally sourced) to wipe off excessive grease from audio panel.





CAUTION:
^ DO NOT get the microfiber cloth wet.

^ DO NOT apply any solvent, detergent or cleaner to the microfiber cloth or audio panel.

^ DO NOT rub the microfiber cloth too hard, or scratches may appear on the audio panel.

NOTE:
^ Once the grease is removed, the seepage will not reoccur.

3. Verify repair.

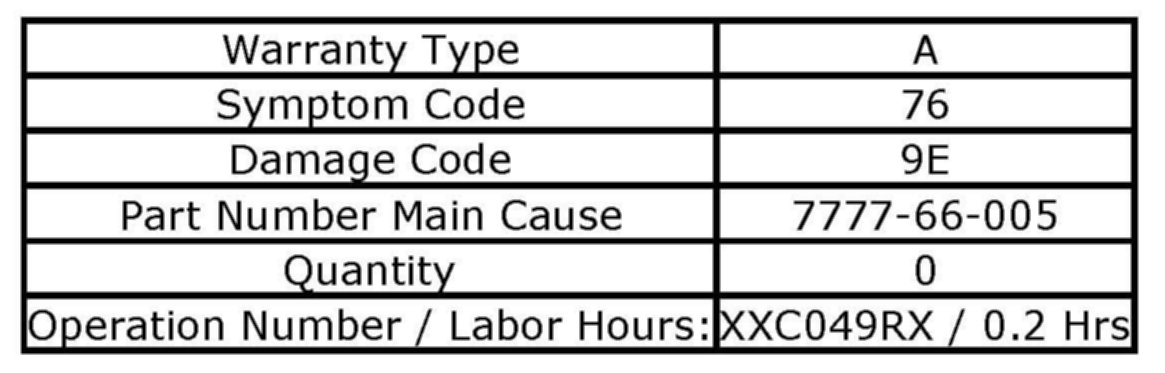

WARRANTY INFORMATION

NOTE:
^ This warranty information applies only to verified customer
complaints on vehicles eligible for warranty repair. Refer to the Warranty
Wizard for warranty term information.

^ Additional diagnostic time cannot be claimed for this repair.

^ The Operation Number and Labor Hours includes the expense of local purchased cloth.
