Stall Test

Stall Test

1. Perform mechanical system test preparation. (See Mechanical System Test Preparation.) Mechanical System Test Preparation
3. Firmly depress the brake pedal with the left foot.
4. Shift the selector lever to the D range.

Caution:
^ If the accelerator pedal is depressed for more than 5 s while the brake pedal is depressed, the transaxle could be damaged. Therefore, perform Steps 5 and 6 within 5 s.
^ Perform the test at least 3 times and calculate the average.

5. Gently depress the accelerator pedal with the right foot.
6. When the engine speed no longer increases, quickly read the engine speed and release the accelerator pedal.
7. Shift the selector lever to the N position and idle the engine for 1 min or more to cool the ATF.
8. Perform a stall test of the M range and R position in the same manner as in Steps 3-7.
9. Turn off the engine.

Engine stall speed

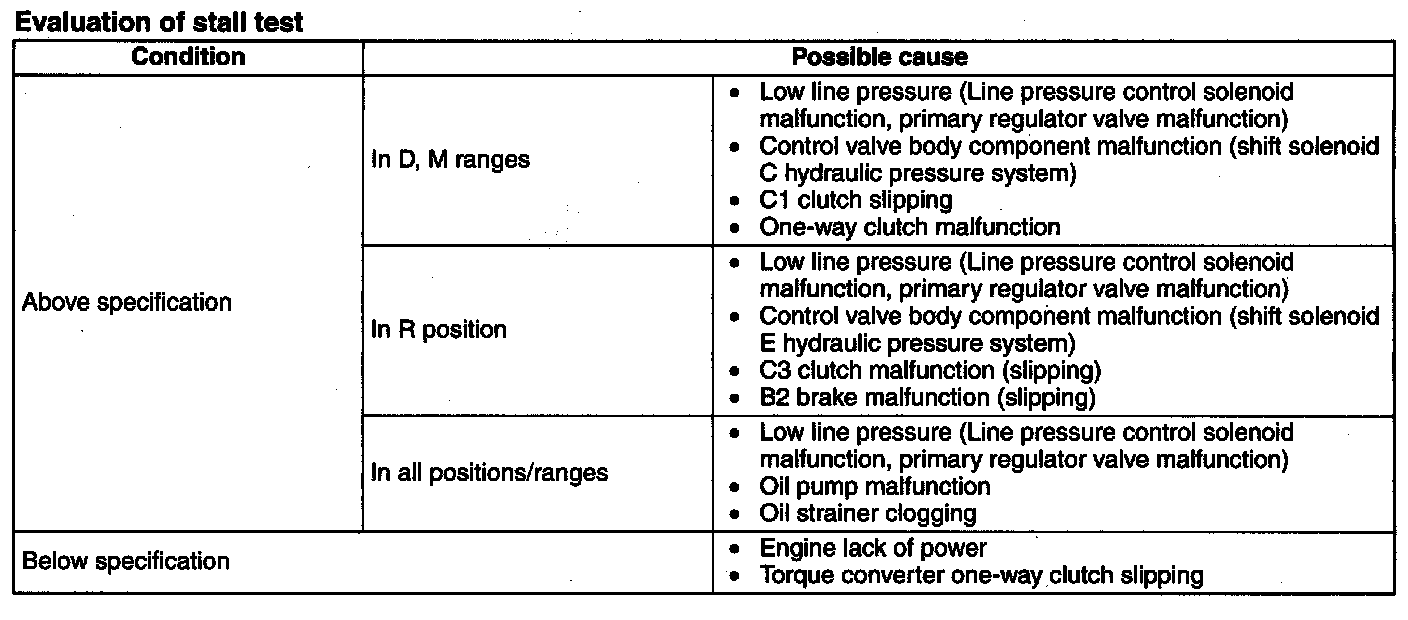

Evaluation of stall test
