Removal and Replacement
FRONT BUMPER REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Disconnect the front fog light connectors for vehicles with front fog lights.
3.
Disconnect the side marker light connectors.
4.

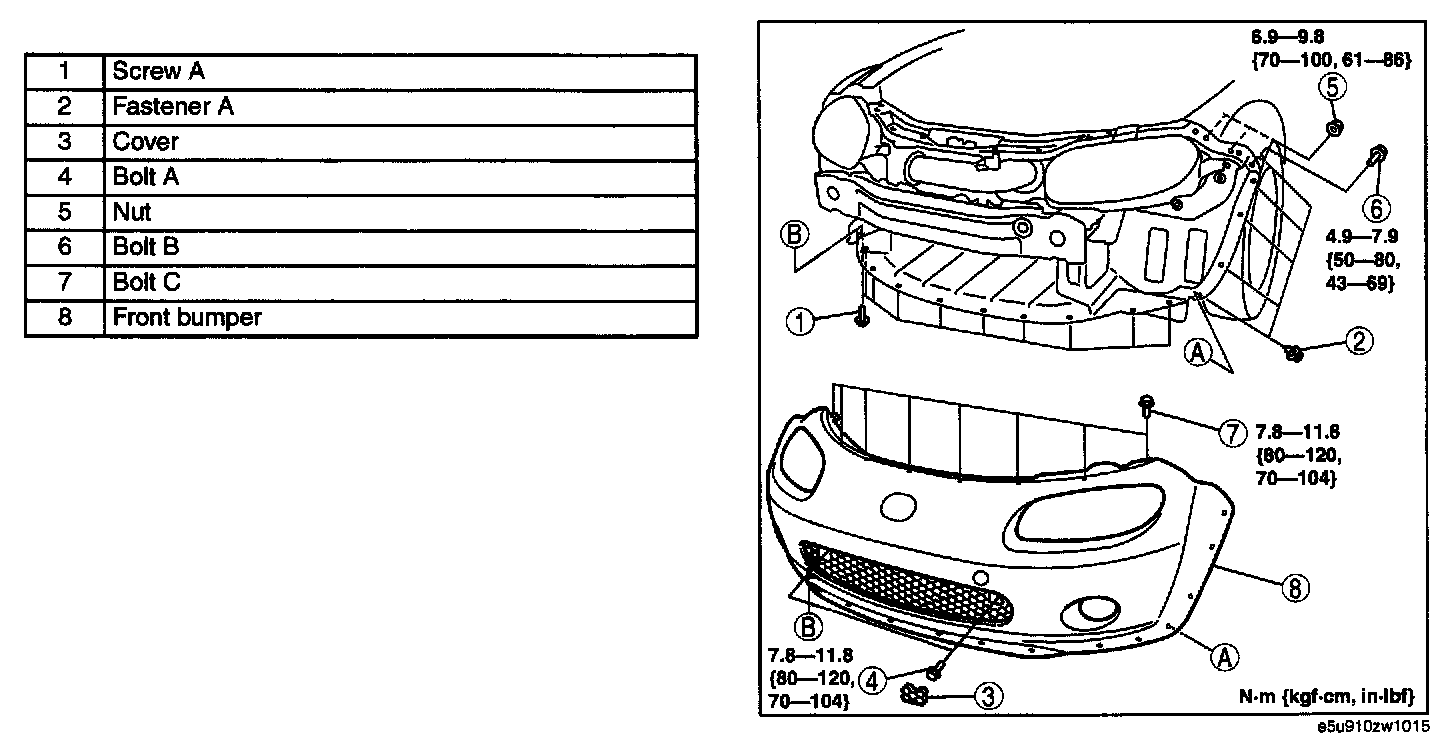

Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
6.
Adjust the front fog light aiming for vehicles with the front fog lights. (See FRONT FOG LIGHT AIMING.)
