Console Removal/Installation

CONSOLE REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the selector lever knob (AT), shift lever knob (MT).

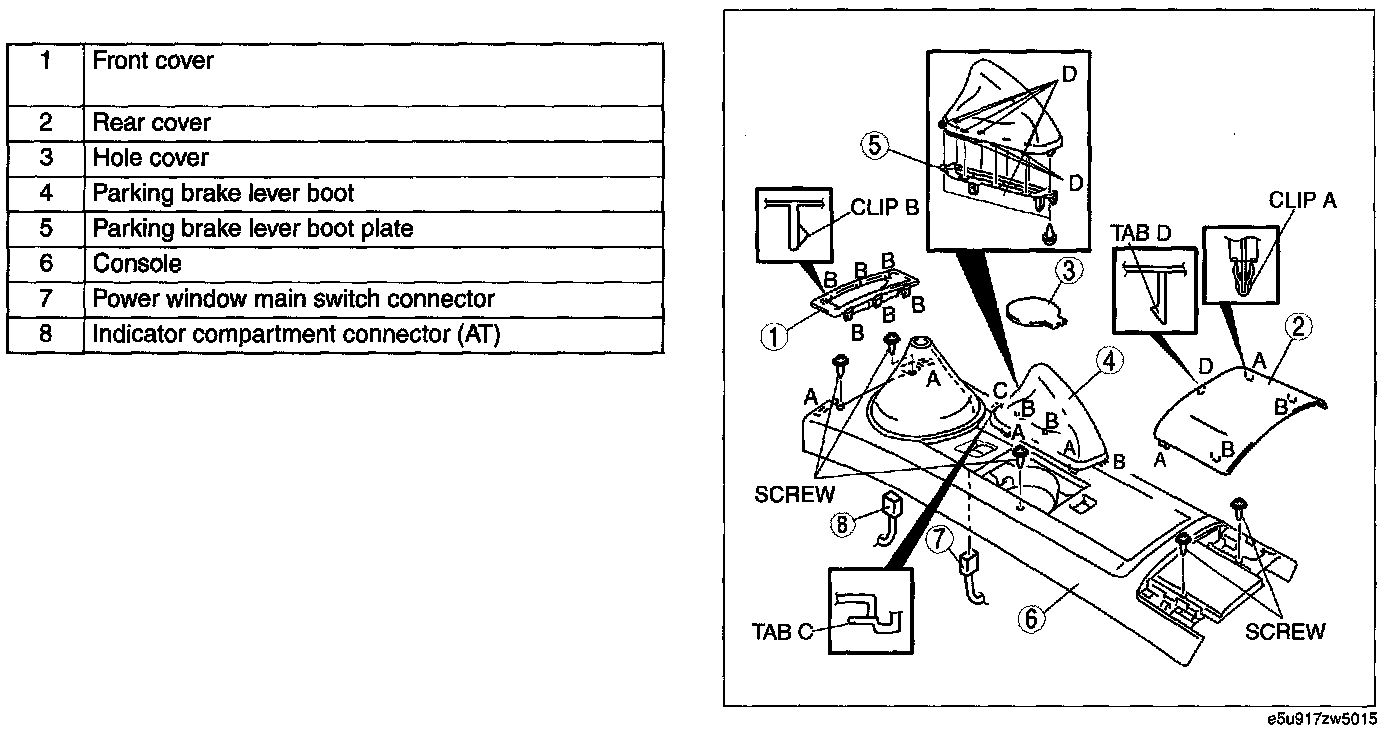

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.

Front Cover Removal Note






1. Adhere protective tape in the shaded area shown in the figure and remove the clips using a fastener remover inserted in the position indicated by the arrow.






2. Remove the front cover in the direction shown in the figure.
