Radiator: Service and Repair

RADIATOR REMOVAL/INSTALLATION [LF]

Warning:
^ Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. lit may also damage the engine and cooling system.
^ Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes.
^ When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.

1. Remove the splash shield and under cover.
2. Drain the engine coolant.
3. Remove the battery, battery tray, and battery duct.
4. Remove the air cleaner.
5. Remove the PCM and air cleaner insulator.
6. Remove the coolant reserve tank.
7. Disconnect the ATF oil cooler hose. (AT)

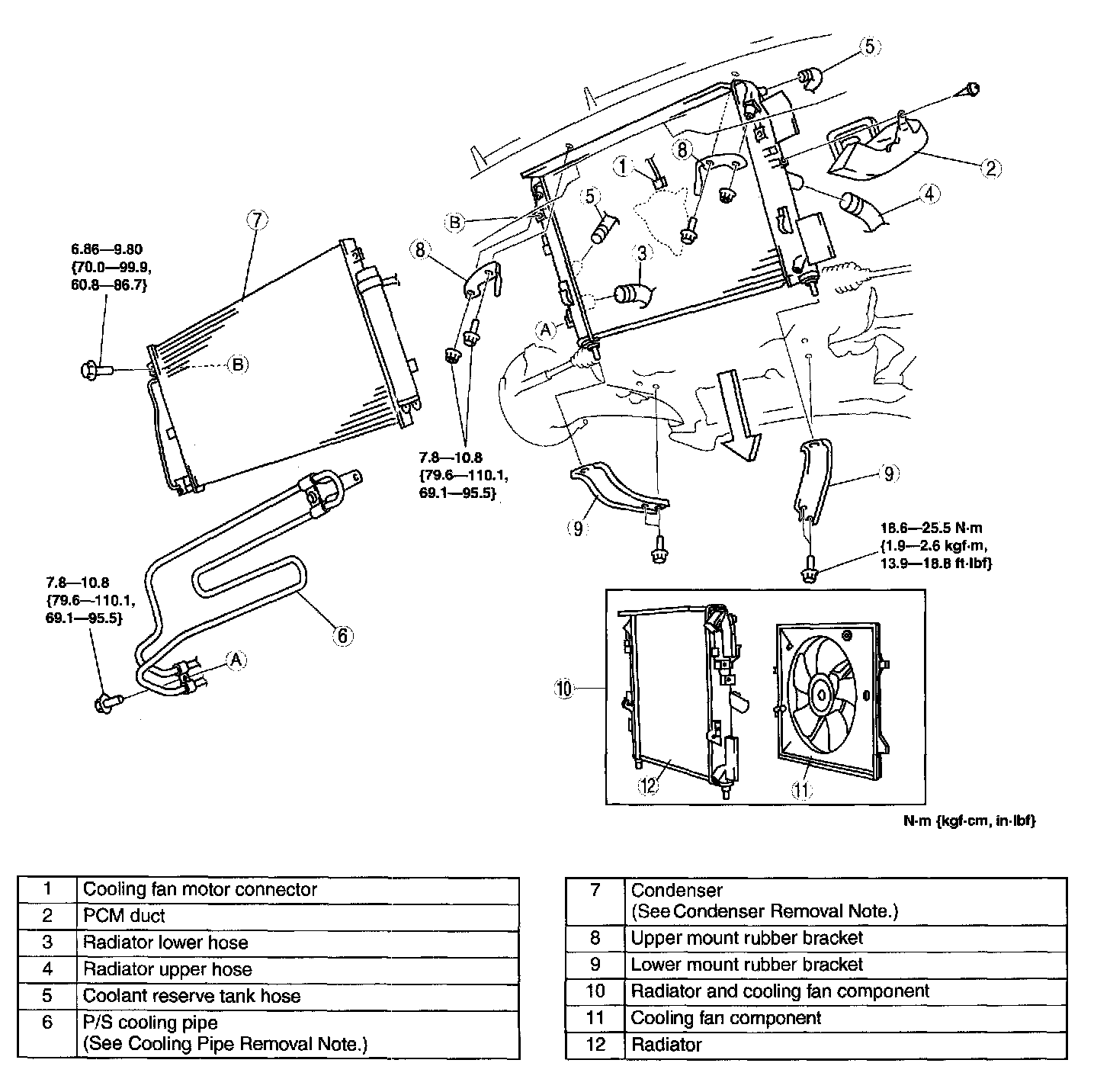

8. Remove in the order indicated in the table.
9. Install in the reverse order of removal.
10. Refill the engine coolant.
11. Inspect for engine coolant leakage.
12. Inspect the ATF level. (AT)





P/S Cooling Pipe Removal Note
1. Remove the P/S cooling pipe with the hoses still connected.

Condenser Removal Note
1. Remove the condenser with the cooler pipes still connected.
