Engine Disassembly/Assembly [LF]
ENGINE DISASSEMBLY/ASSEMBLY [LF] 1.
Remove the transmission from the engine.
2.
Remove the following parts:
1.
The clutch unit (MT)
2.
The ignition coil
3.
The CMP sensor
4.
The power steering oil pump
5.
The fuel distributor and fuel injector
6.
The intake-air system
7.
The
exhaust system 8.
The CKP sensor
3.

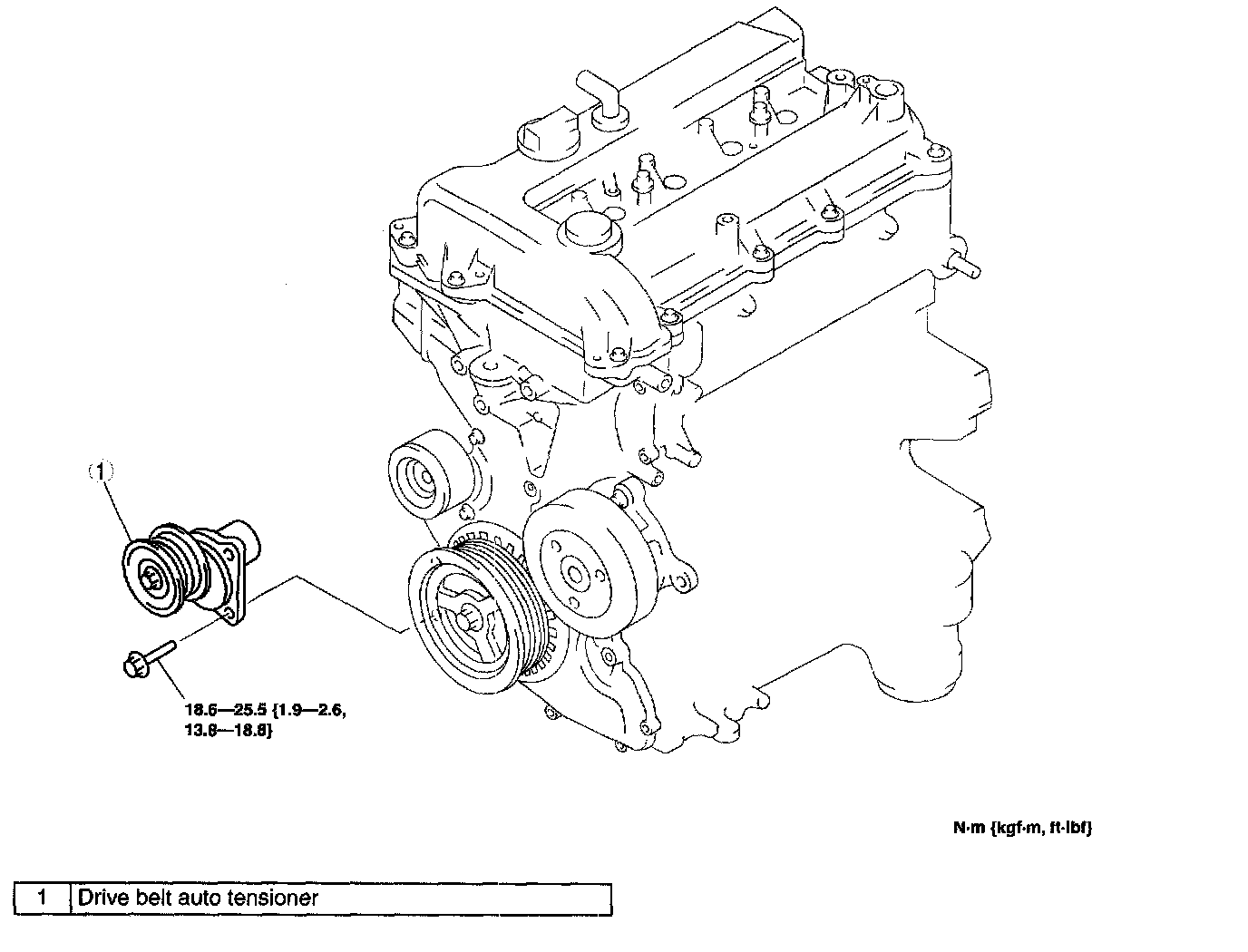

Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
