Exhaust System: Service and Repair

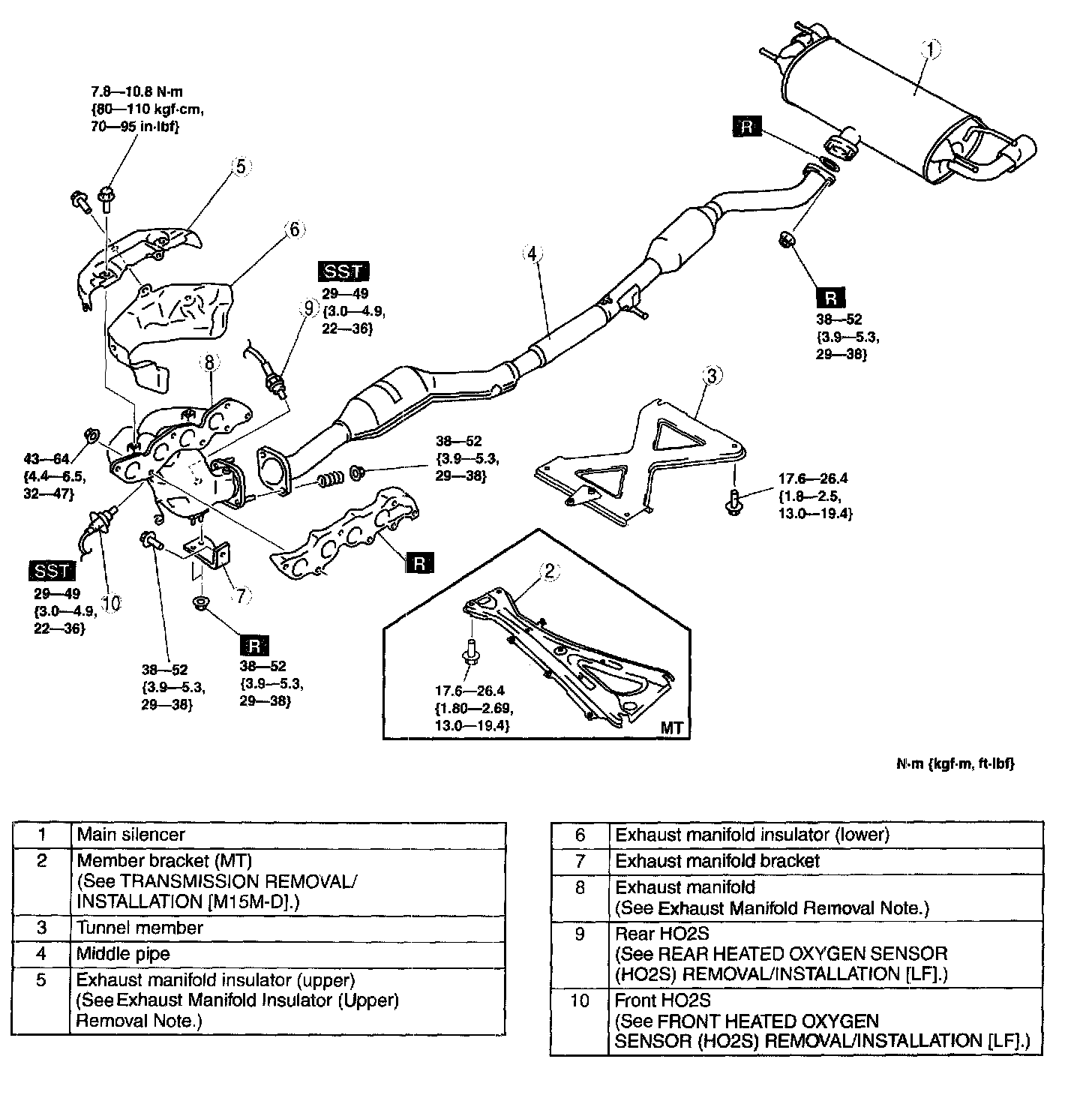

EXHAUST SYSTEM REMOVAL/INSTALLATION [LF]

Warning: A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before servicing the exhaust system.

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.





Exhaust Manifold Insulator (Upper) Removal Note
1. Remove the battery and battery tray.
2. Remove the drive belt.
3. Remove the under cover.
4. Remove the suspension tower bar (joint) and (right side).
5. Remove the generator.





6. Remove the insulator.

Exhaust Manifold Removal Note
1. Disconnect the front HO2S connector and rear HO2S connector.





2. Move the water pipe and heater hose slightly out of the way.
3. Disconnect the ventilation hose from the cylinder head.
