DSC HU/CM Configuration

DSC HU/CM CONFIGURATION

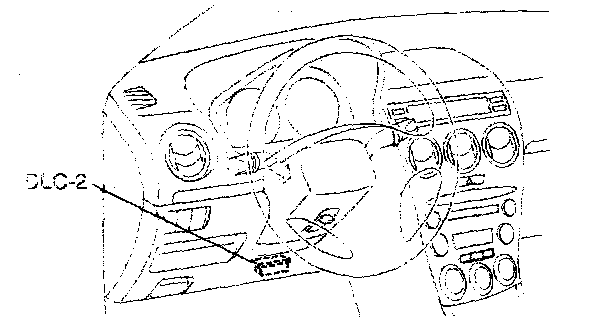

1. Connect the WDS or equivalent to the DLC-2.
2. Input vehicle information following the directions on the WDS or equivalent screen
3. Select "MODULE PROGRAMMING".
4. Select "PROGRAMMABLE MODULE INSTALLATION".
5. Select "ABS/TCS"
6. Retrieve DTCs using the WDS or equivalent then verify that there is no DTC present
^ If any DTC is present, perform applicable DTC inspection
