Seat Occupant Classification Module - Air Bag: Service and Repair

SEAT WEIGHT SENSOR CONTROL MODULE REMOVAL/INSTALLATION[L3 WITH TC]

CAUTION: When the seat weight sensor control module Is replaced with a new one, perform the seat weight sensor calibration using the M-MDS. (See SEAT WEIGHT SENSOR CALIBRATION.) Programming and Relearning

1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative battery cable and wait for 1 min or more.
3. Remove the front passenger's seat.

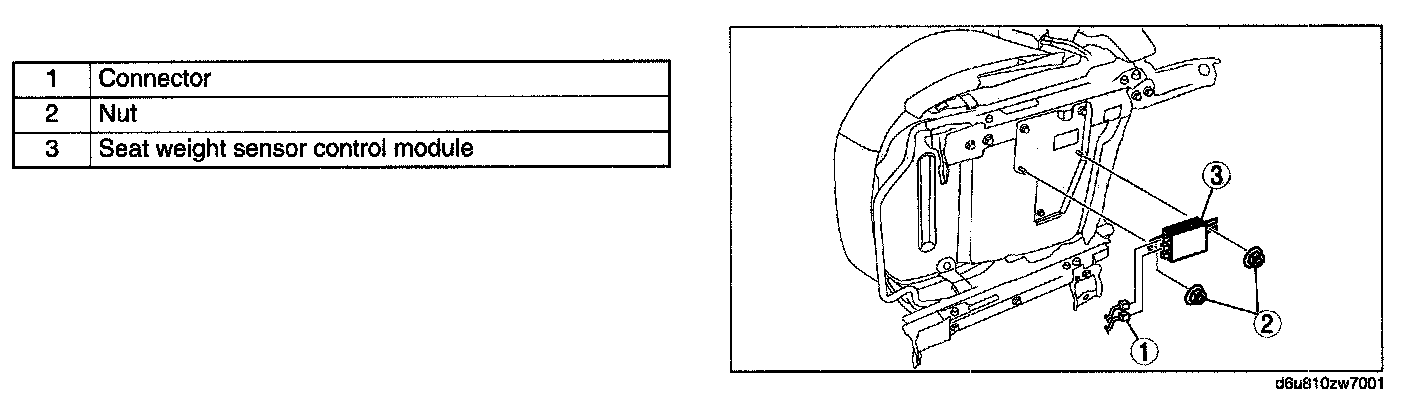

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
