Overhaul

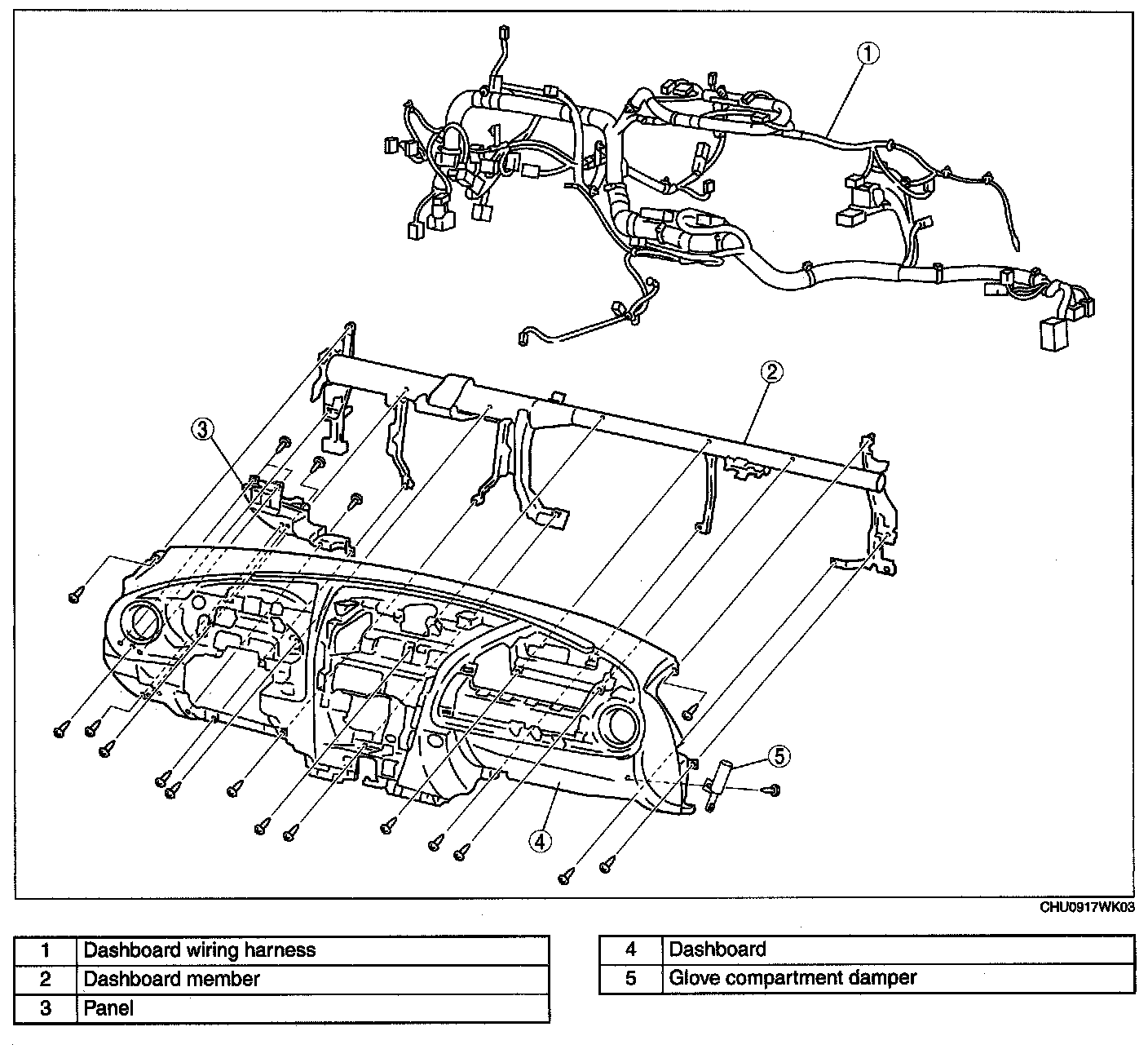

DASHBOARD DISASSEMBLY/ASSEMBLY 1.
Remove the following parts:
1.
Center panel module
2.
Passenger-side air bag module
3.
Instrument cluster
4.
A/C unit
5.
Blower unit
2.
Disassemble in the order indicated in the table.
3.
Assemble in the reverse order of disassembly.
