DSC HU/CM INSPECTION1. Disconnect the DSC HU/CM connector.
2. Connect the negative battery cable.
3. Attach the tester lead to the DSC HU/CM harness side connector, then inspect voltage, continuity or resistance according to the standard (reference value) on the table.

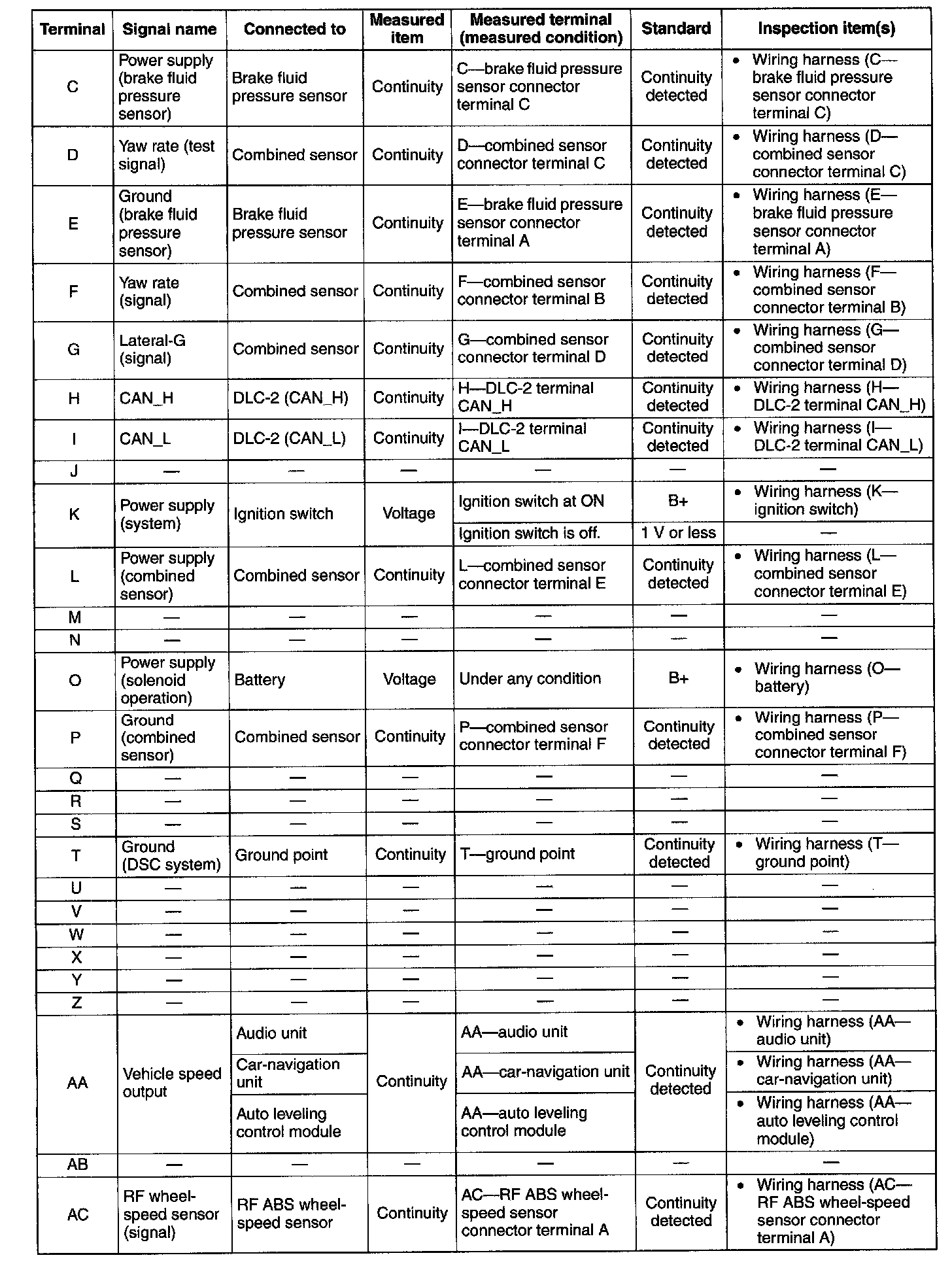

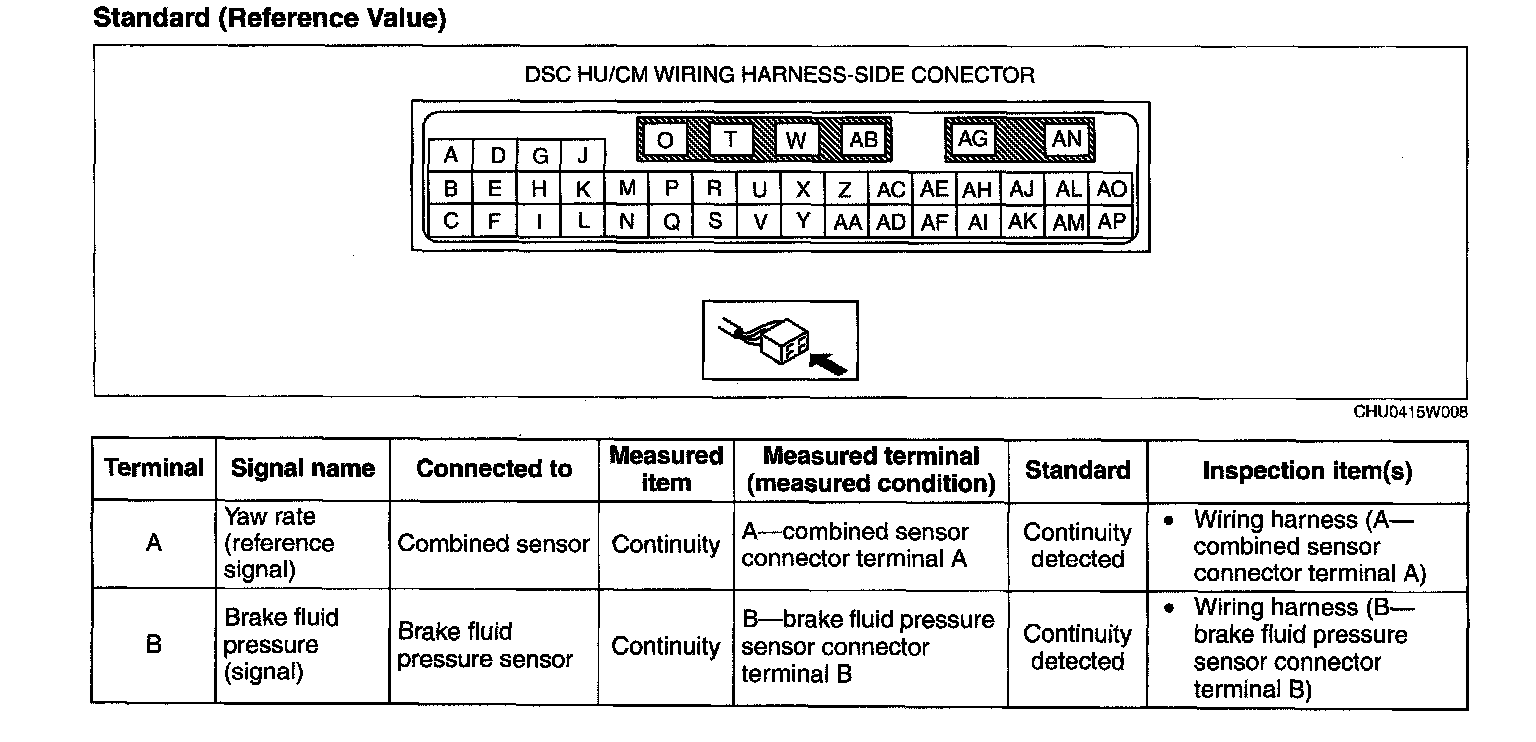

Standard (reference Value) (part 1):

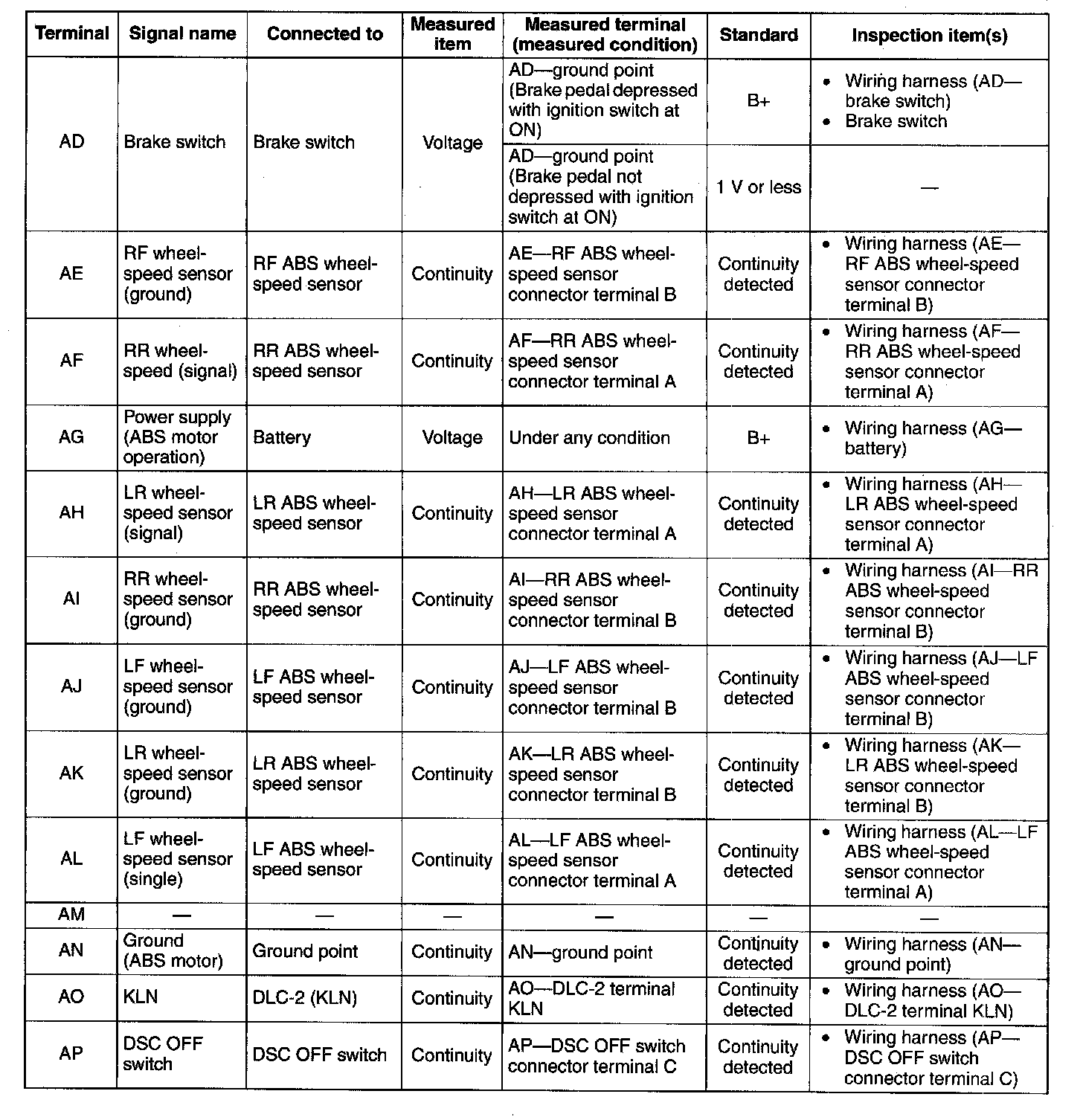

Standard (reference Value) (part 2):
Standard (reference Value) (part 3):
FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION
1. Remove or install the front ABS wheel-speed sensor in the same order of vehicles with ABS.
FRONT ABS WHEEL-SPEED SENSOR INSPECTION
1. Inspect the front ABS wheel-speed sensor in the same order of vehicles with ABS. (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.) Front ABS Wheel-Speed Sensor Inspection
REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION
1. Remove or install the rear ABS wheel-speed sensor in the same order of vehicles with ABS.
REAR ABS WHEEL-SPEED SENSOR INSPECTION
1. Inspect the rear ABS wheel-speed sensor in the same order of vehicles with ABS. (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.) Rear ABS Wheel-Speed Sensor Inspection
