Cellular Phone: Service and Repair
HANDS-FREE TELEPHONE (HF/TEL) UNIT REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the following parts:
1.
Side wall.
2.
Front console.
3.
Front scuff plate inner (passenger's side).
4.
Front side trim (passenger's side).
5.
Side panel (passenger's side).
6.
Glove compartment.
3.

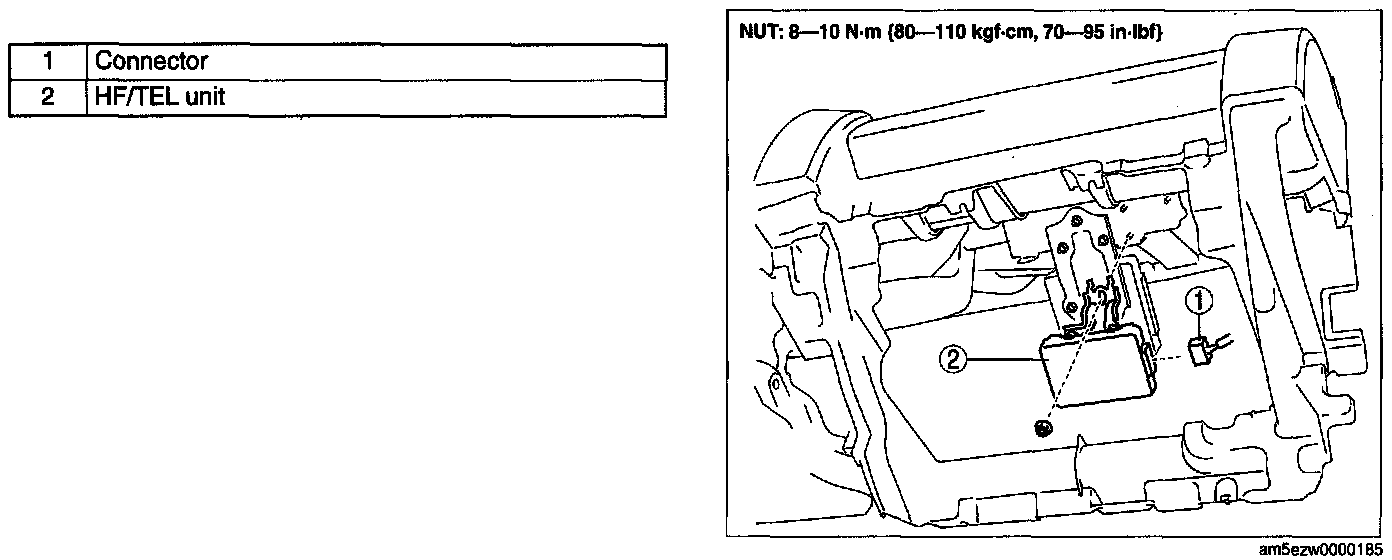

Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
