Reference Information [Car-Navigation System]

REFERENCE INFORMATION [CAR-NAVIGATION SYSTEM]

Starting Procedure For Diagnostic Function
1. Turn the ignition switch to ON position.
2. Press the MENU button.
3. Select "Navigation Set Up".
4. Select "Calibration".
5. Select "Map Version".
6. Press upper left of screen 2 times, then press lower left of it 2 times.
7. Press "Menu" button of "Diagnosis Check" screen.
8. Perform following procedures according to the purpose of the check item.

If inspecting vehicle condition signals:

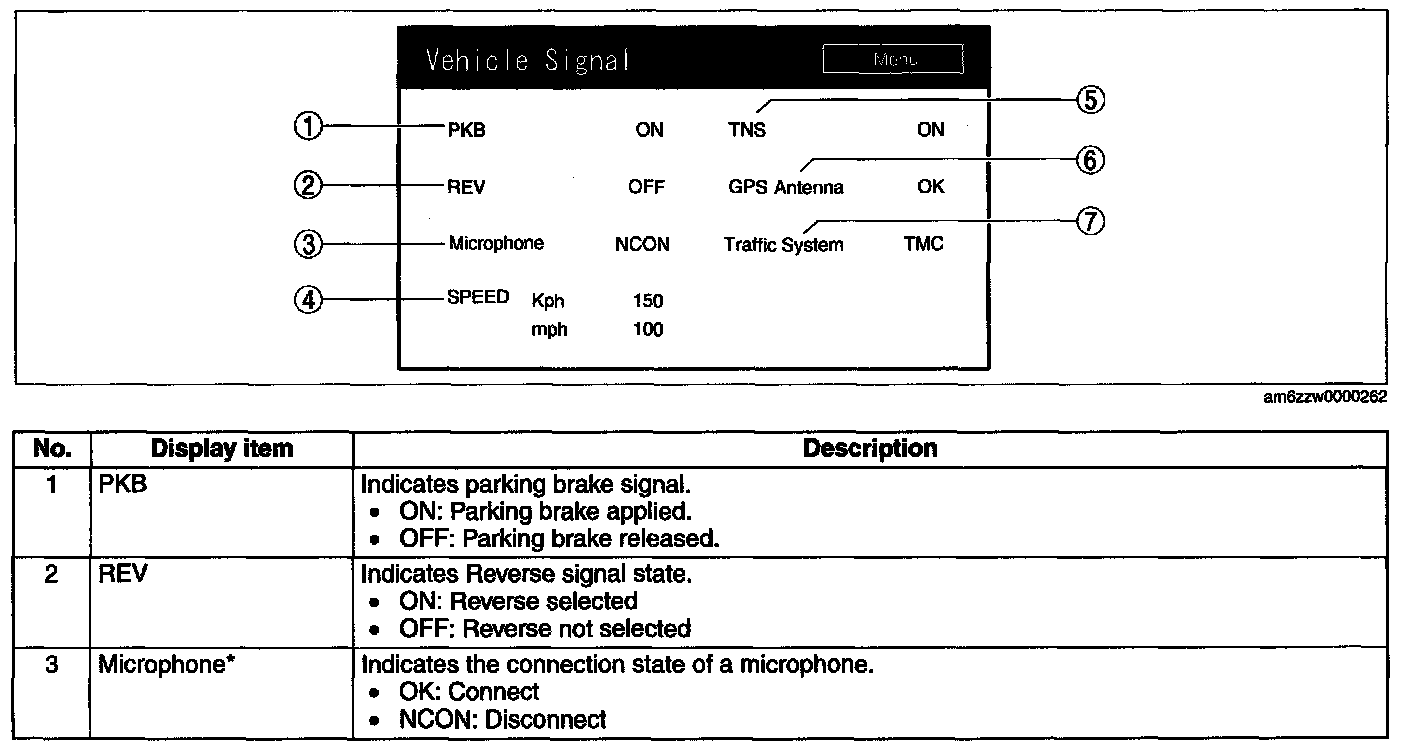

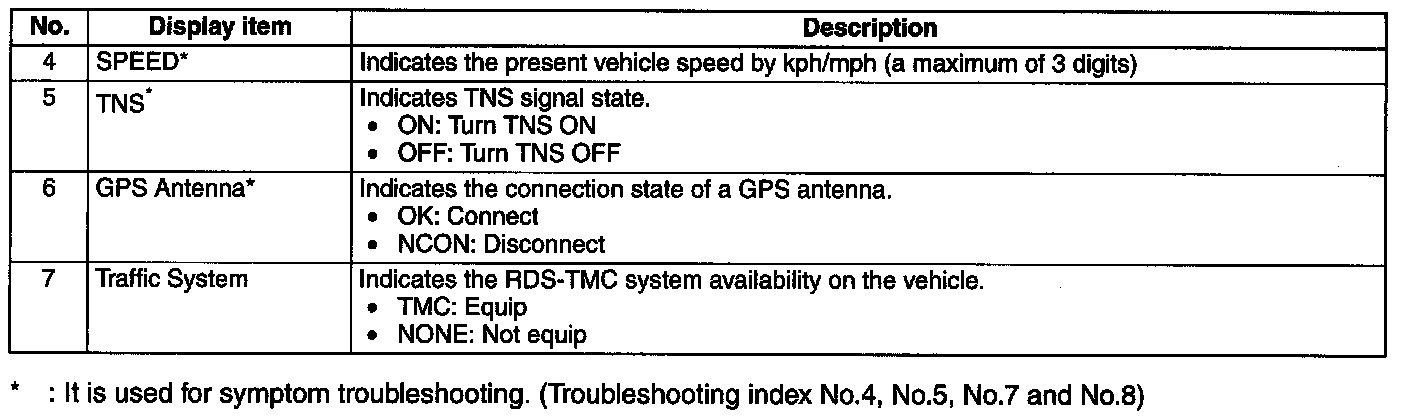

1. Select "Vehicle Signal".

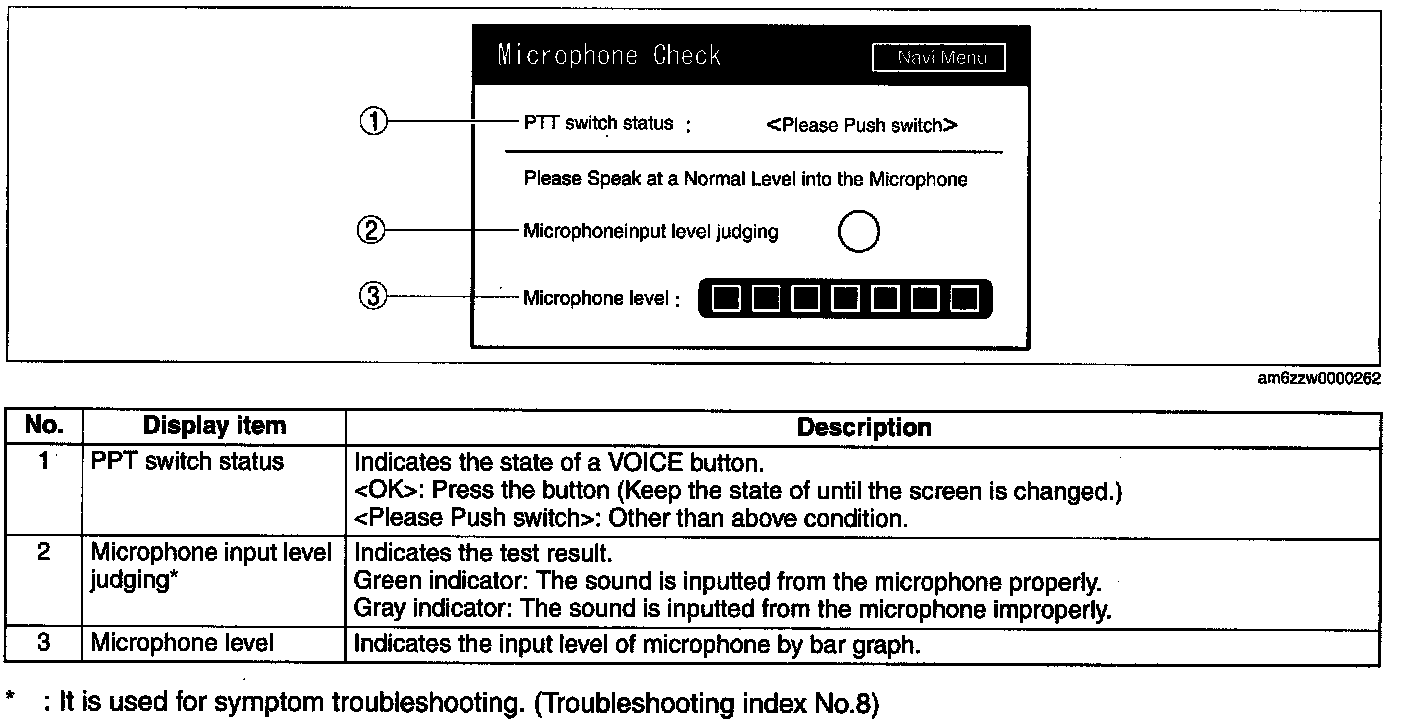

If inspecting microphone related signals:
1. Select "Navigation Check Menu".
2. Select "Microphone Check".

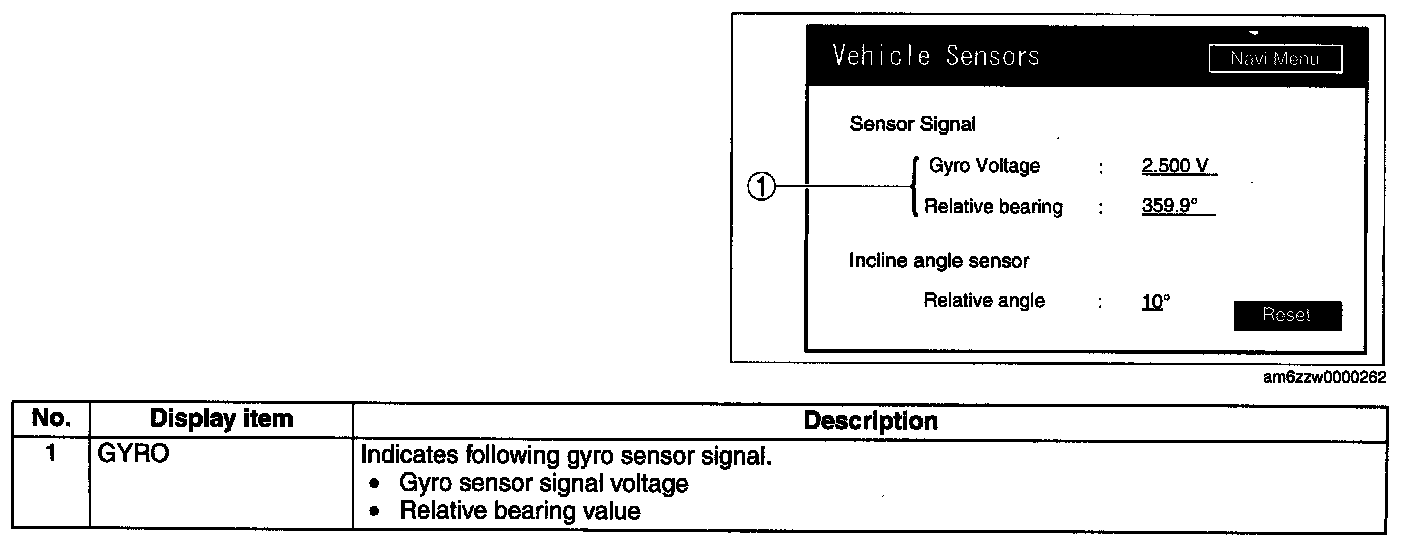

If inspecting gyro sensor signals:
1. Select "Navigation Check Menu".
2. Select "Vehicle Sensors".
