Radiator Cooling Fan: Service and Repair

COOLING FAN COMPONENT REMOVAL INSTALLATION [L3]

Warning
^ Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

1. Remove the battery cover and battery duct.
2. Disconnect the negative battery cable.
3. Remove the under cover.

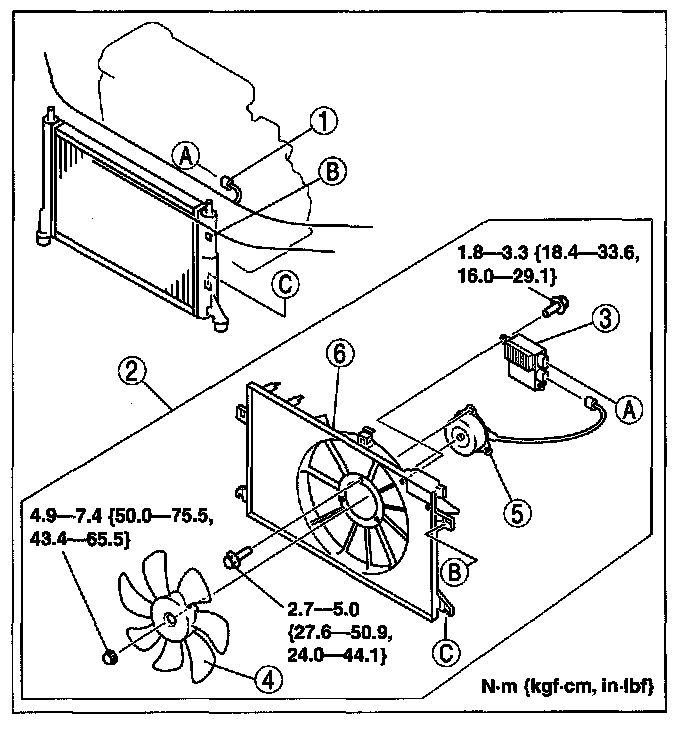

4. Remove in the order indicated in the table.





5. Install in the reverse order of removal.

Cooling Fan Component Removal Note





1. Release the left and right tabs on the upper side of the radiator by pressing them in the direction shown in the figure.





2. Lift the cooling fan component to remove it from the left and right insertion areas on the lower side of the radiator.
3. Remove the cooling fan component from below.

Cooling Fan Component Installation Note
1. Insert the cooling fan component in the left and right insertion areas on the lower side of the radiator, and then attach the left and right tabs on the upper side of the radiator.
