Air Duct: Service and Repair

REAR HEAT DUCT REMOVAL/INSTALLATION
1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the following parts:
1. Front seat.
2. Center console.
3. Front scuff plate inner.
4. Front side trim.
5. Sidewall.
6. Shift lever component (MTX).
7. Selector lever component (ATX).
8. Front console.
9. Dust cover.

4. Partially open the floor covering.

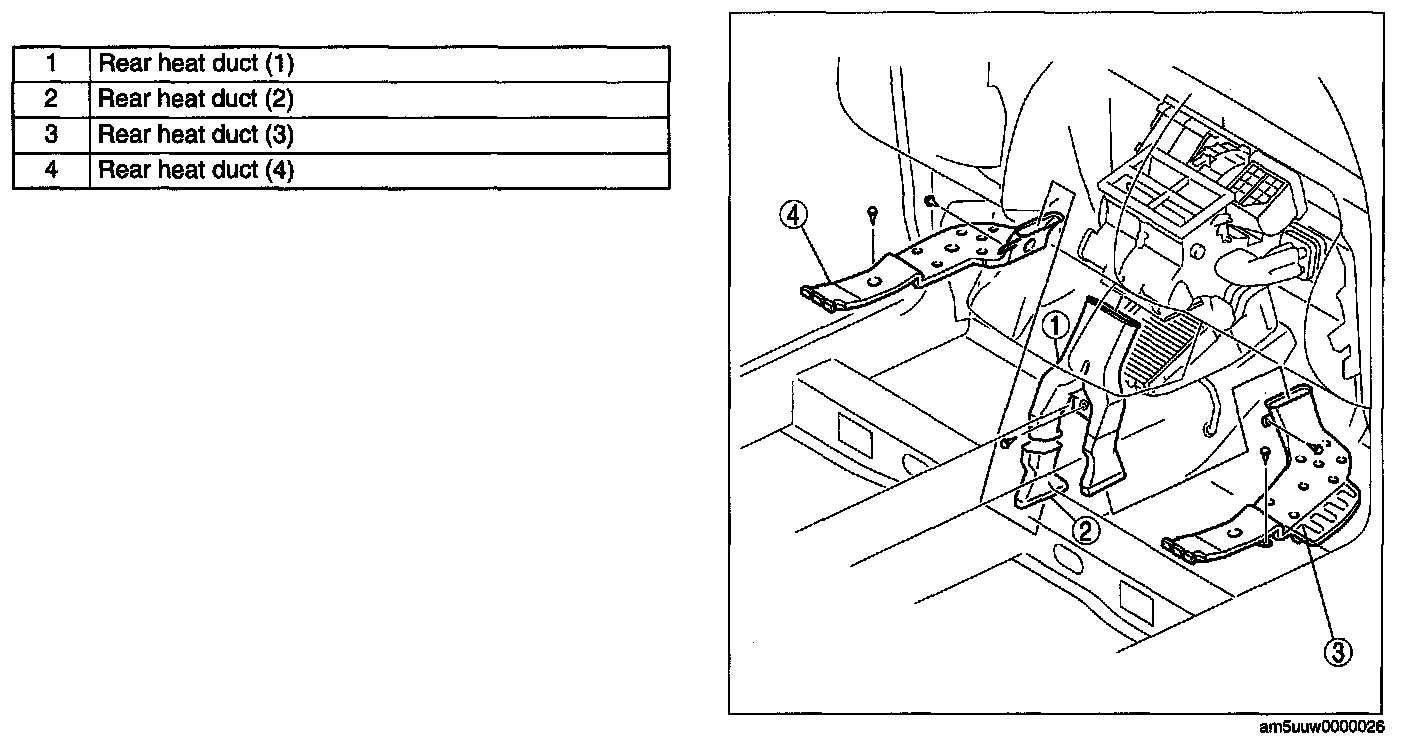

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.
