Cabin Temperature Sensor / Switch: Service and Repair

PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Side wall.
2. Shift lever component (MTX).
3. Selector lever component (ATX).
4. Front console.
5. Front scuff plate inner (Passenger's side).
6. Front side trim (Passenger's side).
7. Side panel. (Passenger's side).
8. Glove compartment.

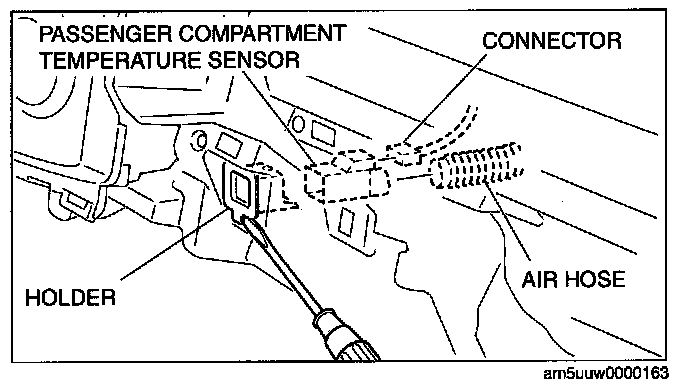

3. Remove the air hose.
4. Disconnect the passenger compartment temperature sensor connector.
5. Insert a tape-wrapped flathead screwdriver into the convex part of the passenger compartment temperature sensor and pry it to remove the passenger compartment temperature sensor together with passenger compartment temperature sensor holder.




6. Remove the passenger compartment temperature sensor.
7. Install in the reverse order of removal.
