Climate Control Unit Installation [Manual Air Conditioner]

CLIMATE CONTROL UNIT INSTALLATION [MANUAL AIR CONDITIONER]

1. Install the wire clamp to A/C unit.
2. Install E-ring to each wire. (See E-ring Installation Note.)

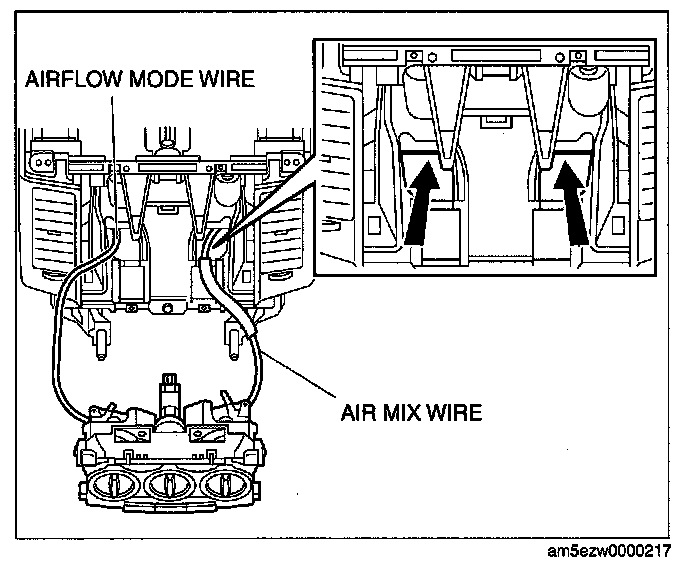

3. Pass each wire through the following routes and connect to A/C unit.
4. Connect the climate control unit connector, fan switch connector.
5. Install the climate control unit.
6. Connect each wire to A/C unit.
7. Install the center panel module.
8. Install the following parts:
1. Column cover.
2. Glove compartment.
3. Side panel (passenger's side).
4. Lower panel.
5. Hood release lever.
6. Front console.
7. Selector lever component (ATX).
8. Shift lever component (MTX).
9. Side wall.
10. Front side trim.
11. Front scuff plate.

9. Connect the negative battery cable.

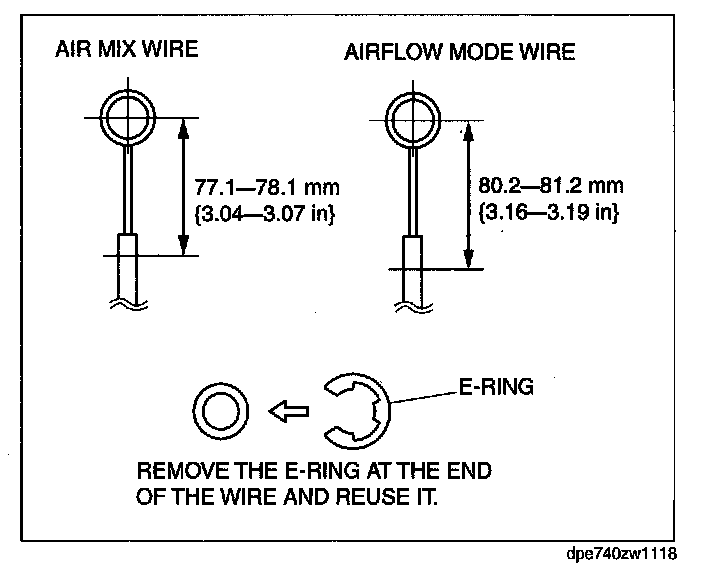

E-ring Installation Note




1. Install the wires as shown in the figure.
