Climate Control Unit Removal [Manual Air Conditioner]

CLIMATE CONTROL UNIT REMOVAL [MANUAL AIR CONDITIONER]

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Front scuff plate inner.
2. Front side trim.
3. Side wall.
4. Shift lever component (MTX).
5. Selector lever component (ATX).
6. Front console.
7. Hood release lever.
8. Lower panel.
9. Side panel (passenger's side).
10. Glove compartment.
11. Column cover.

3. Remove the center panel module.

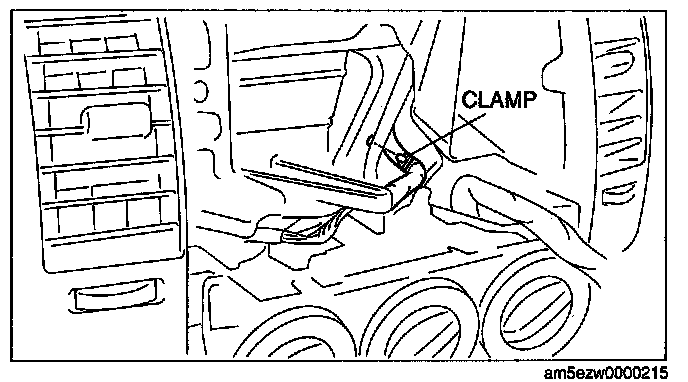

4. Remove the clamp.
5. Remove the wire clamp with air mix wire and airflow mode wire from the A/C unit.

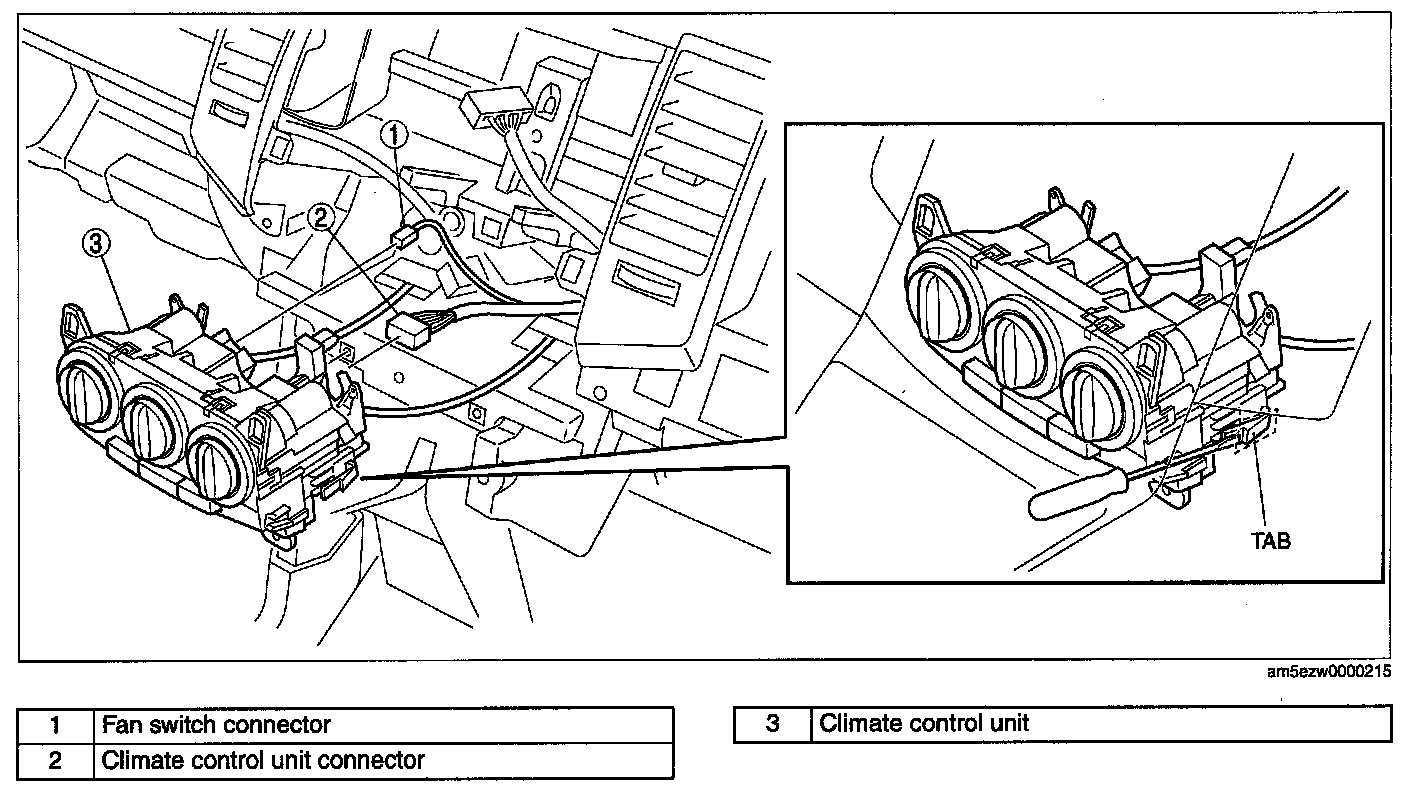

6. Release the left and right tabs and remove in the order indicated in the table.

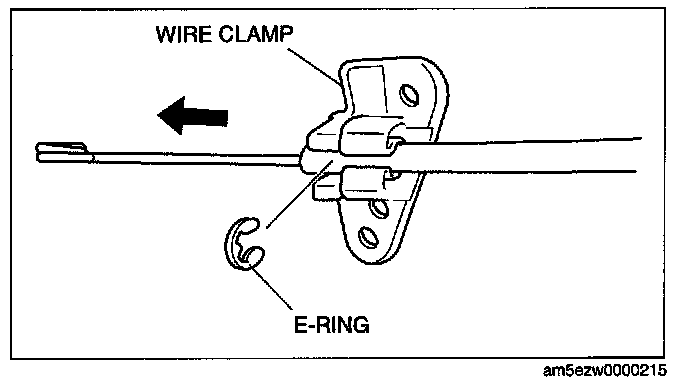

Wire Removal Note
1. Remove the E-ring from wire clamp.




2. Slide the wire clamp in the direction shown in the figure and remove it.
