Climate Control Unit Removal/Installation [Full-Auto Air Conditioner]

CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

Vehicle Without Car-Navigation Unit
1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Side wall.
2. Shift lever component (MTX).
3. Selector lever component (ATX).
4. Front console.
5. Center panel module.

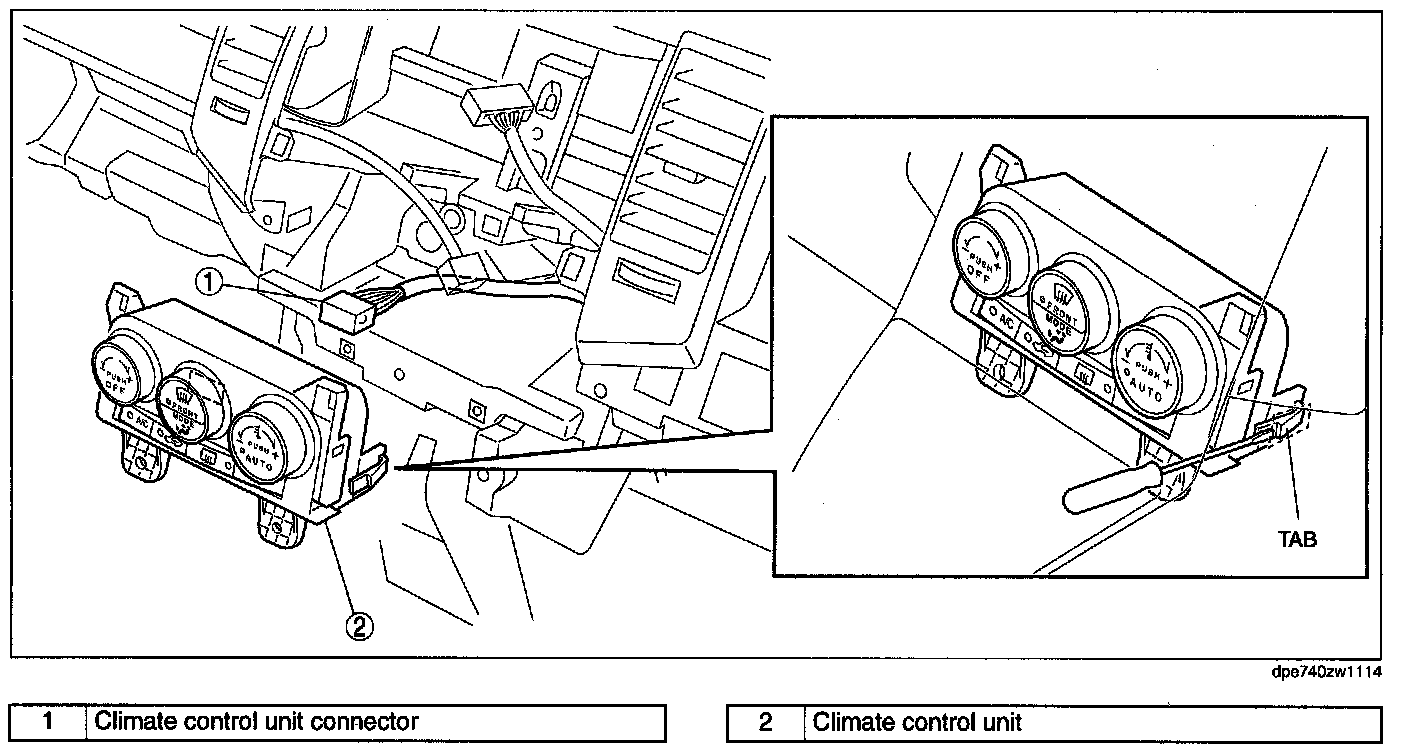

3. Release the left and right tabs and remove as shown in the figure.






4. Install in the reverse order of removal.

Vehicle With Car-Navigation Unit
1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Side wall.
2. Shift lever component (MTX).
3. Selector lever component (ATX).
4. Front console.

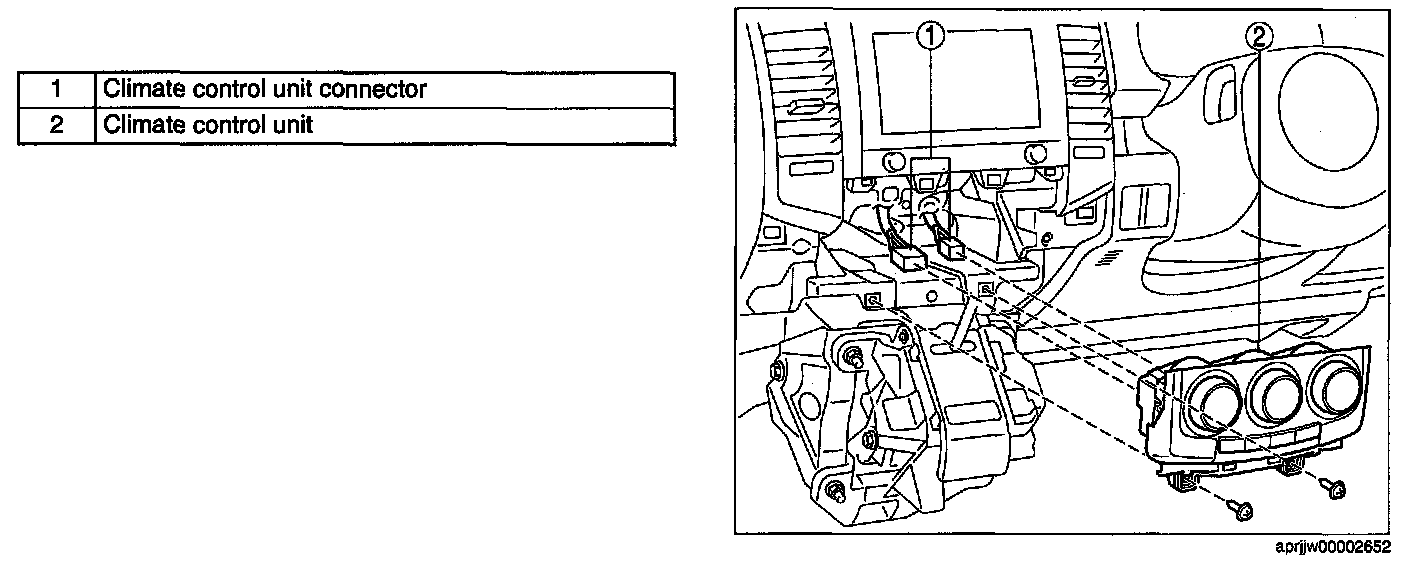

3. Release the left and right tabs and remove as shown in the figure.






4. Install in the reverse order of removal.
