Backup Lamp Switch: Service and Repair

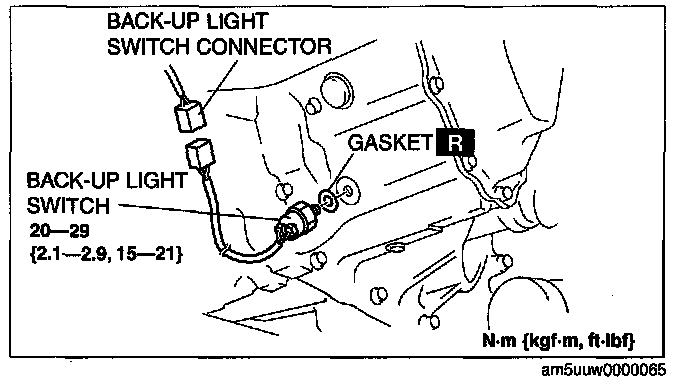

BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION 1.
Remove the battery cover.
2.
Disconnect the negative battery cable.
3.
Remove the under cover.
4.
Drain the oil. (See TRANSAXLE OIL REPLACEMENT [G35M-R].)
5.
Disconnect the back-up light switch connector and remove the back-up light switch.
6.
Install in the reverse order of removal.
7.
Refill the oil. (See TRANSAXLE OIL REPLACEMENT [G35M-R].)
